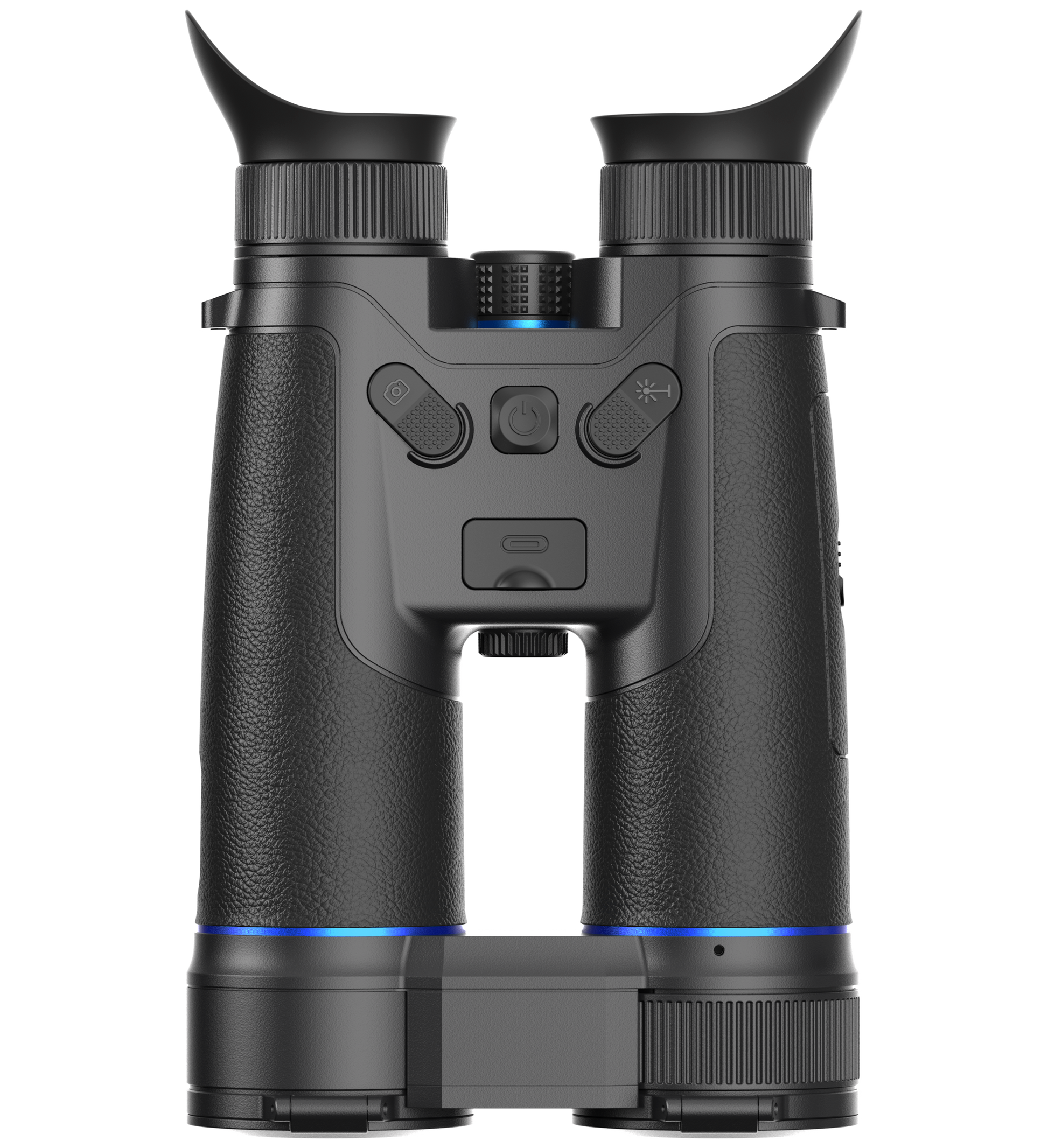

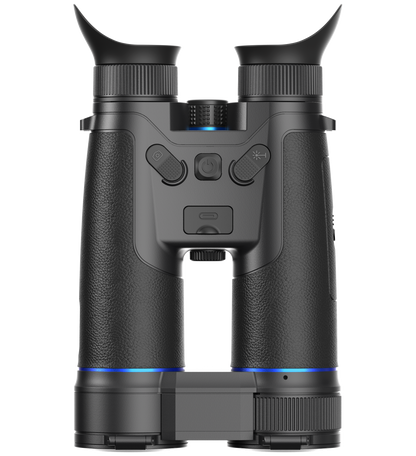

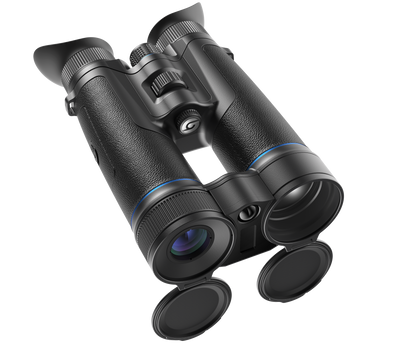

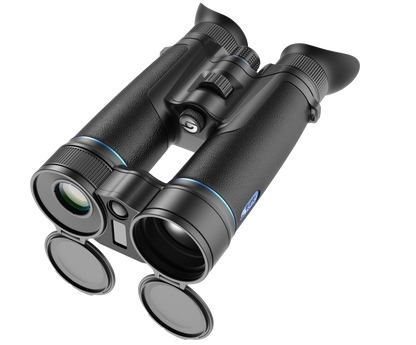

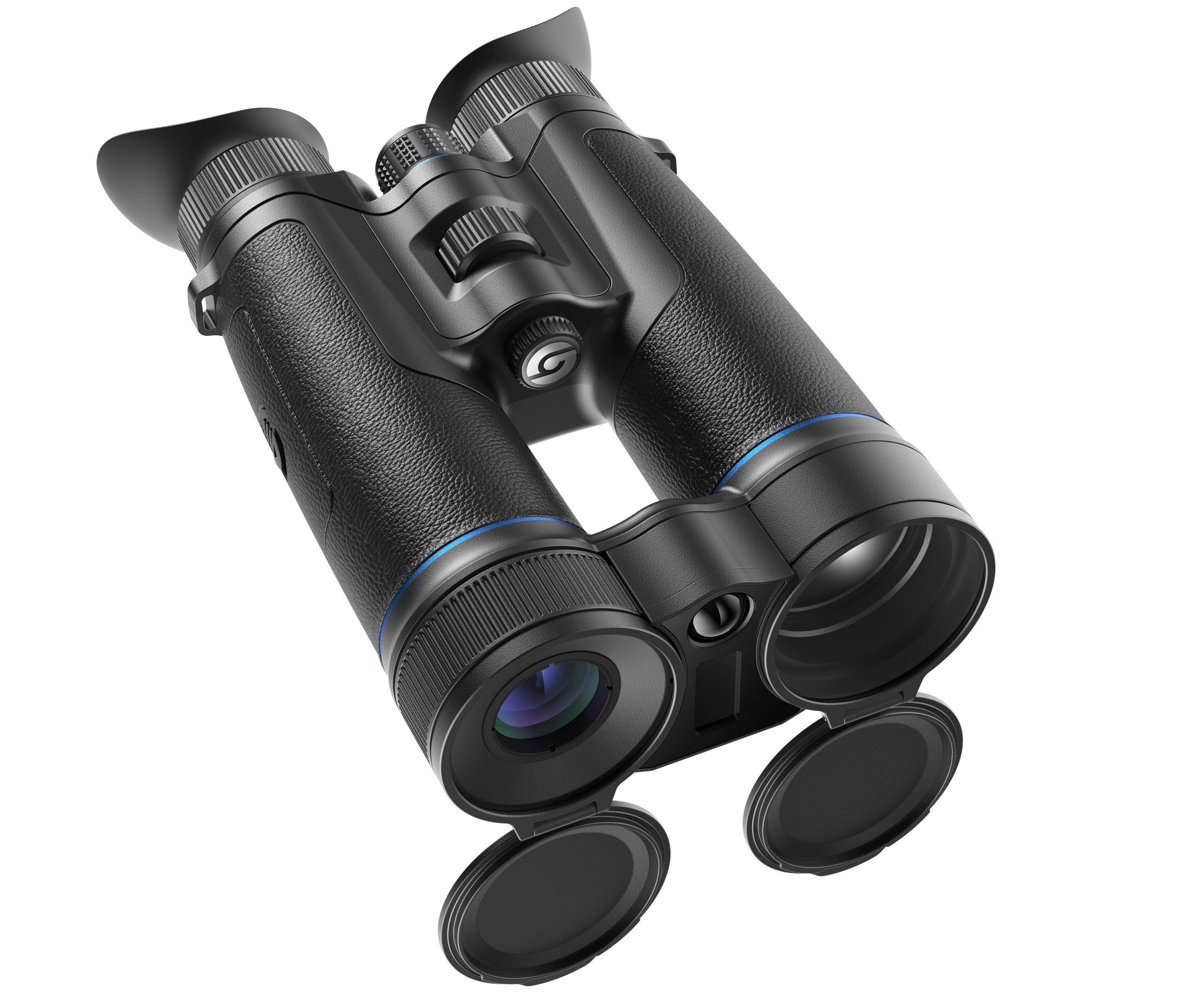

Guide DN70M 2.0 Multispectral Digital Binoculars
Guide DN70M 2.0 Multispectral Digital Binoculars
The all-new DN Muo 2.0 series redefines all-weather optical imaging solutions with innovation and precision. Whether for hunting, law enforcement, or professional use, the series combines advanced thermal and visible light imaging technology, intelligent sensor fusion, and high-performance design to deliver exceptional performance and reliability, making it your ideal choice.
Thermal & CMOS Day & Night Vision
The DN Muo 2.0 Series combines thermal imaging, laser rangefinding, and visible light technology to deliver seamless multi-spectrum fusion for reliable, all-weather observation.

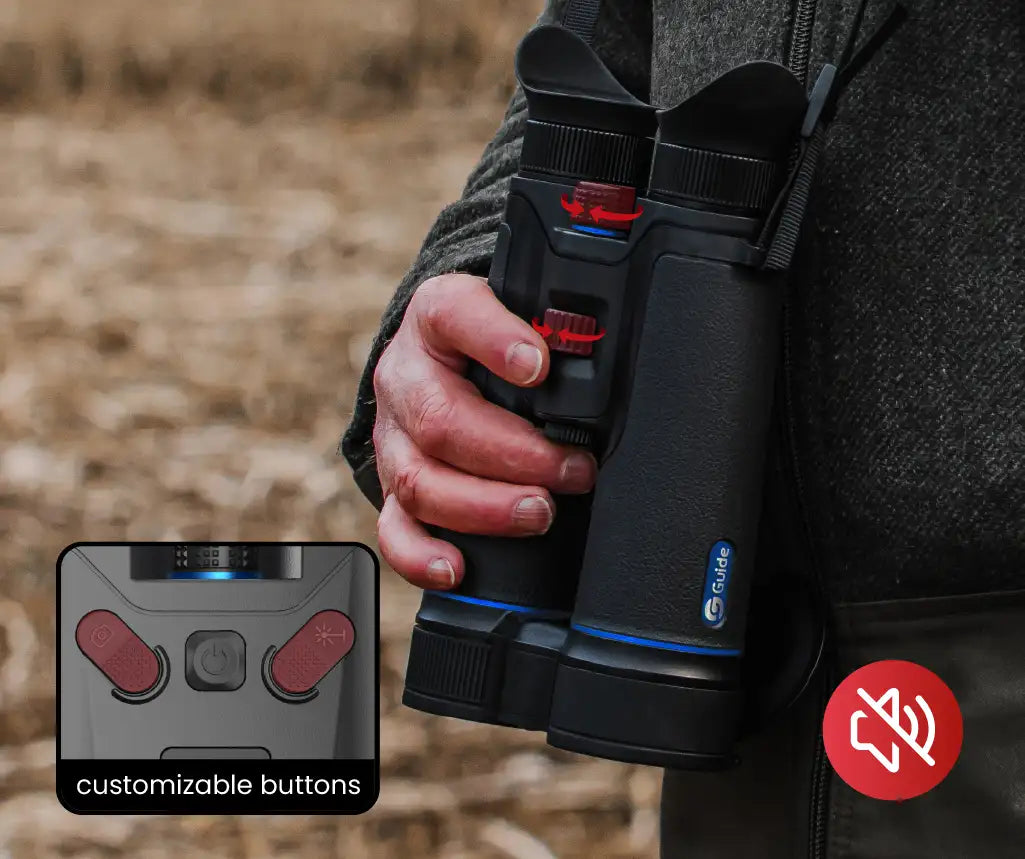

One-Handed Focus, Silent Operation
Designed for ease of use, the intuitive control layout includes a precision focus wheel and tactile, customizable buttons, enabling quiet, one-handed operation when it matters most.

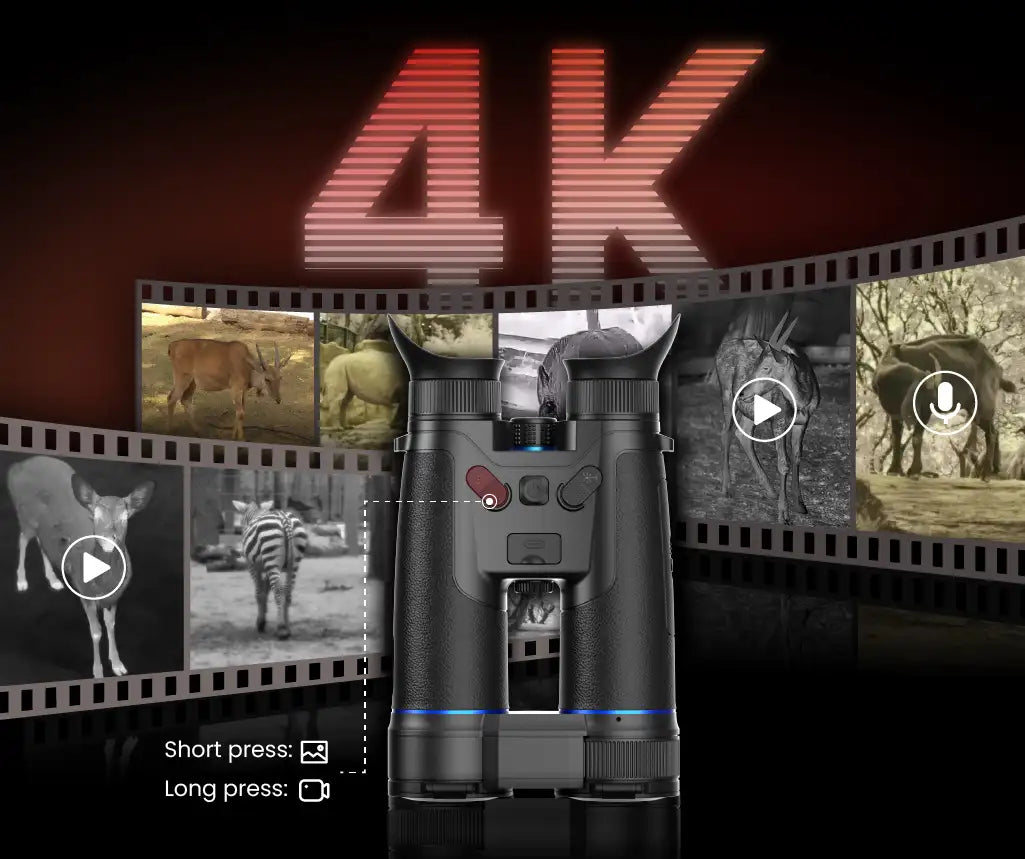

Capture in 4K, Preserve Every Detail
The DN Muo 2.0 Series records high-quality photos and videos with audio in 3840×2160 resolution. With 256GB of built-in storage, every moment is captured and saved in exceptional detail. Easily manage and share files via the TargetIR app.
Built-in 1500m LRF for Precision Targeting
Featuring an integrated 1500m laser rangefinder, GPS, and digital compass, the DN Muo 2.0 Series provides accurate positioning data for enhanced situational awareness in the field.
Specifications
| Product Name | Guide DN70M 2.0 Multispectral Digital Binoculars |
|---|---|
| Laser Rangefinder | 1500m |
| Type-C Power Supply | 5V DC 2A via USB-C |
| Battery Operating Time | 5 hours |
| Battery Type | Customized Battery (Built-in) and 18650 ×1 Battery (External) |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Hotspot | 2.4 GHz / 5 GHz Wi-Fi |
| Capture Snapshot | Yes |
| Record Video | Yes |
| Working Temperature | From -20°C to 50°C |
| Dimension | 226×133×64mm |
| Weight | 914g |
| Protection Level | IP67 |
| Image Pro | N/A |
| HSIS | N/A |
| Zoom Pro | N/A |
| Diopter | -6D to +6D |
| Exit Pupil | - |
| Palettes | IR: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Display | 0.49'' AMOLED 1920×1080 |
| Magnification | Thermal: 4.8x~19.2x; Digital: 5.4x~21.6x |
| Field of View (Degrees/m @ 100m) | Thermal: 6.6°×4.0; Digital: 5.9°×3.5° |
| Detection Range | Thermal: 1300m/1400yd; Digital: 1300m/1400yd |
| NETD | NETD 30mK |
| Response Waveband | Thermal: 8 to 14μm; Digital: CMOS |
| Pixel Interval | Thermal: 12μm Digital: 2μm |
| Frame Rate | 50Hz |
| Sensor Resolution | Thermal: 256×192 Digital: 3840×2160 |
| Lens (Focal Length) | Thermal: 25mm, F1.0; Digital: 70mm, F1.8 |
