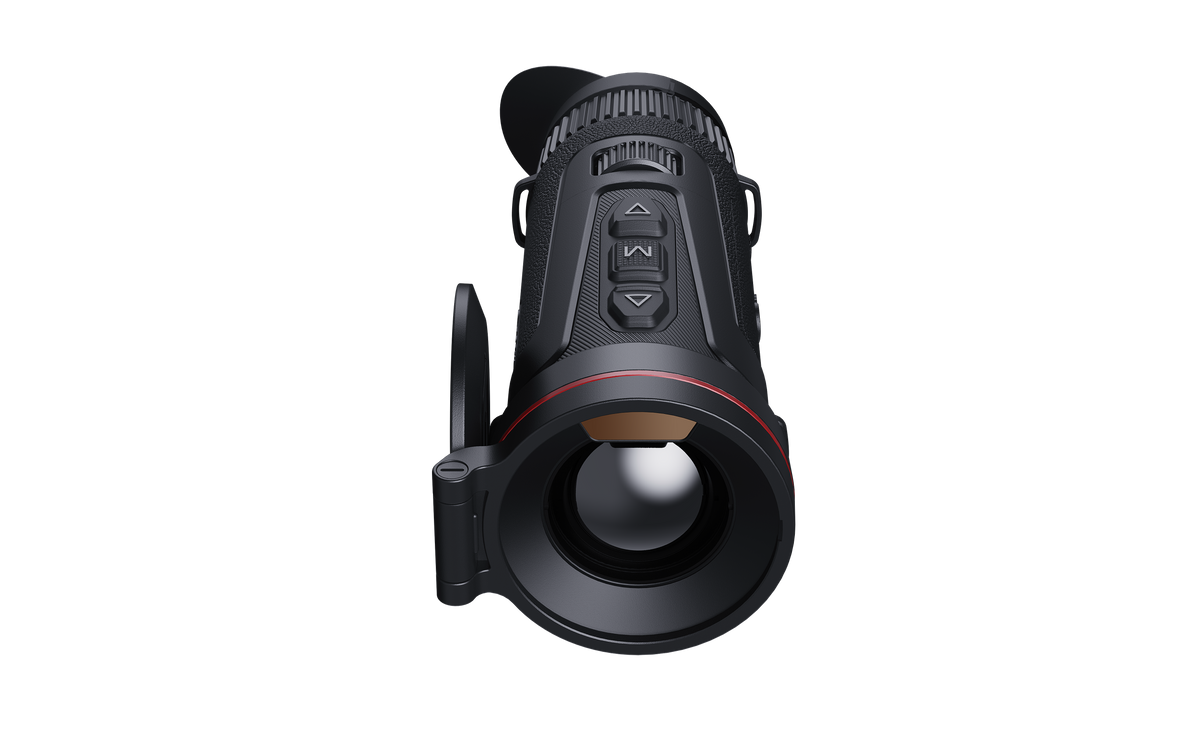

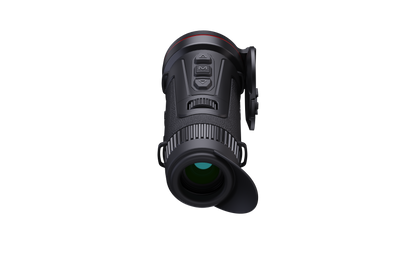

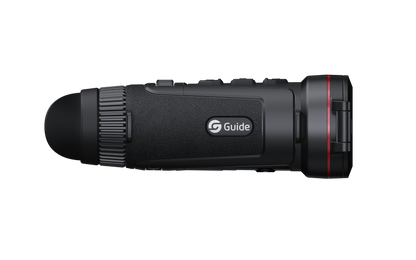

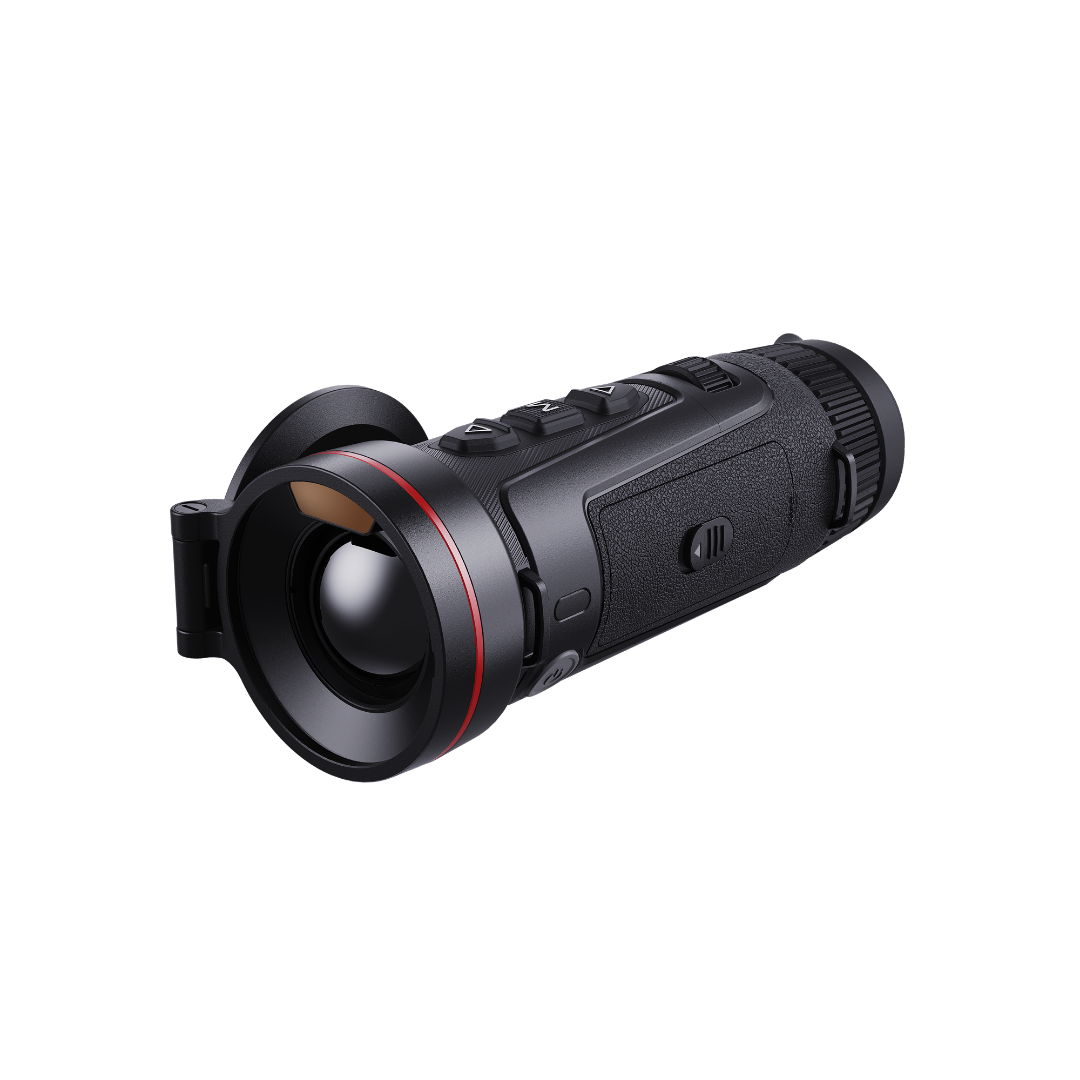

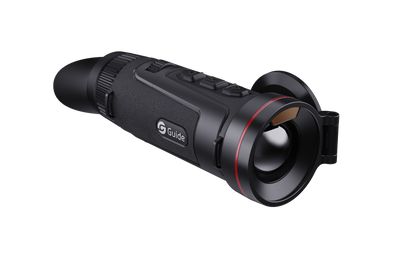

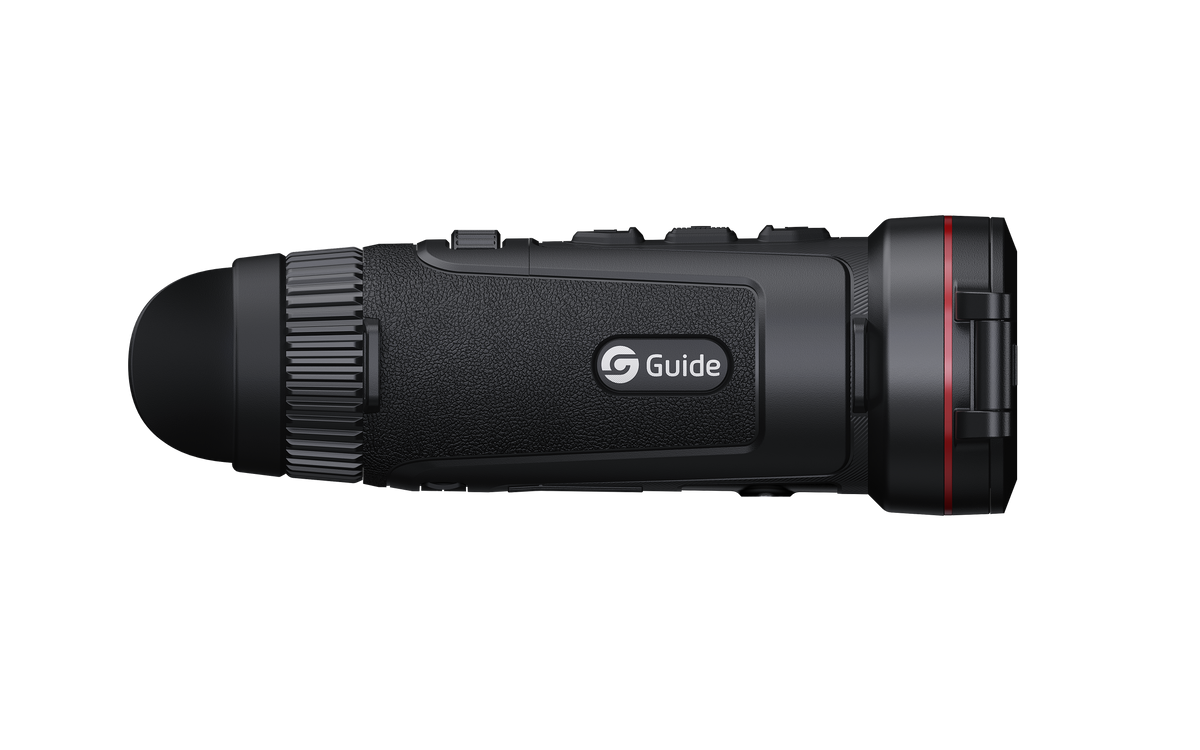

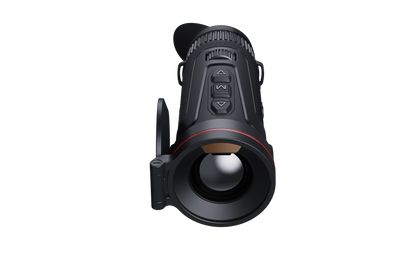

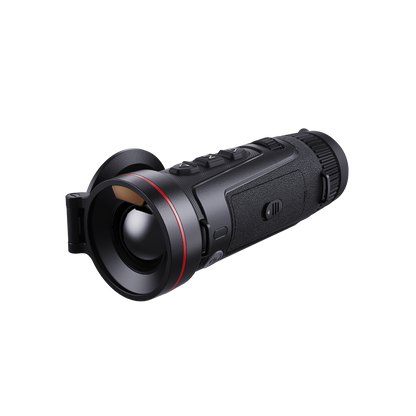

Guide Kodiak TK635L 3.0 Thermal Monocular
Guide Kodiak TK635L 3.0 Thermal Monocular
Pick up heat signatures beyond the reach of your torch with the Guide KODIAK TK635L 3.0. Its 640 × 512 thermal sensor, 35mm lens and APEXVISION imaging system help you scan for wildlife and explore your surroundings after dark, with a detection range of up to 1800m.
Spotted something? The built-in 1200m laser rangefinder lets you check the distance directly through the monocular. Shutterless technology keeps the image moving without calibration pauses, while the 1.03-inch AMOLED display brings the thermal view into sharp focus.
Ready in just three seconds, the TK635L is easy to grab when the moment counts. Adjust focus with one hand, use it comfortably in either hand, and capture what you find with 64GB of storage for photos, video and audio. IP67-rated water and dust protection equips it for the outdoors, with dual-band Wi-Fi and TargetIR app support for connectivity and firmware updates.
SKU: TIGUI625

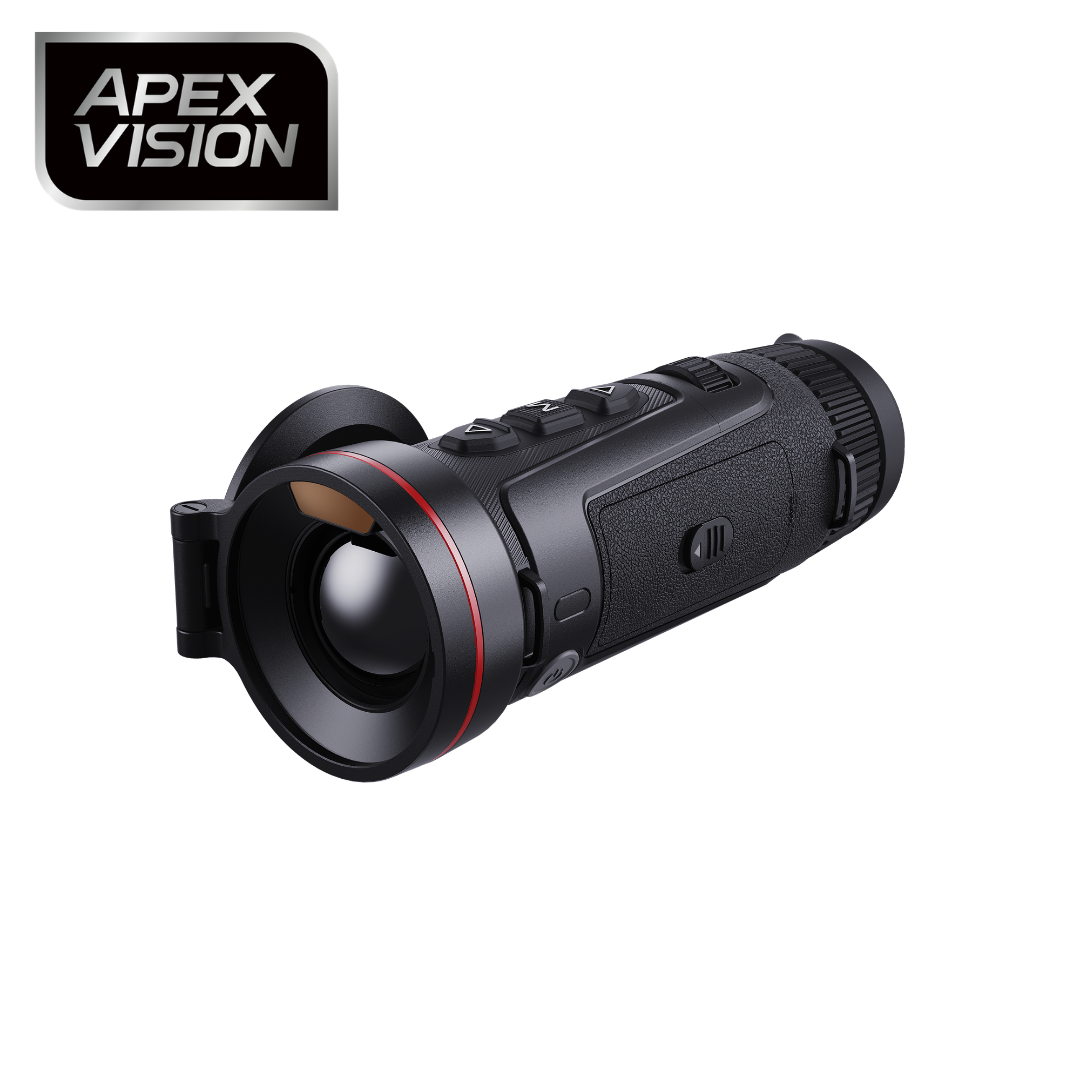

Complete ApexVision S1 System Architecture
Guide Sensmart's next-generation thermal imaging solution that redefines the infrared core of outdoor optics from the ground up. Engineered for any condition, ApexVision delivers ultra-clear visuals with smooth, ghost-free motion, high-fidelity imaging, and razor-sharp detail at long range.
Powerful 12μm Detector for Sharper Images
The TD Gen3 LRF Series features a 12μm infrared detector, available in 640×512 and 400×300 resolutions, paired with a 35mm lens to deliver crisp, detailed images even in complete darkness.

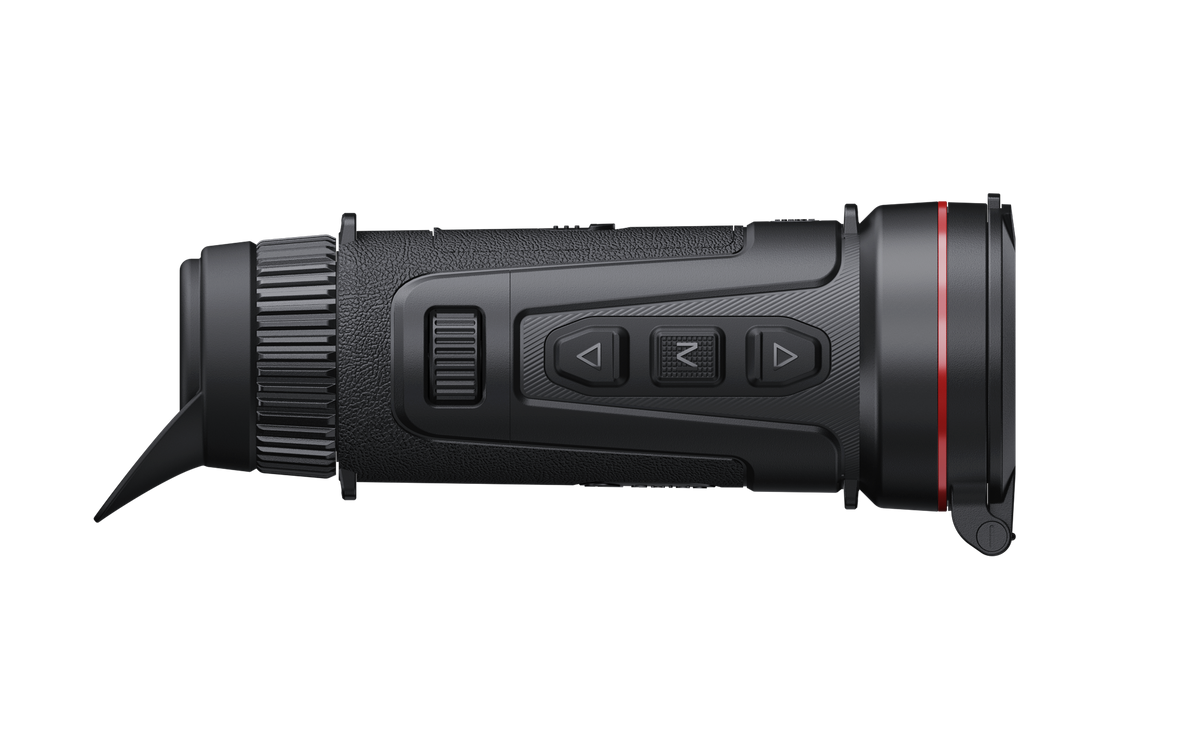

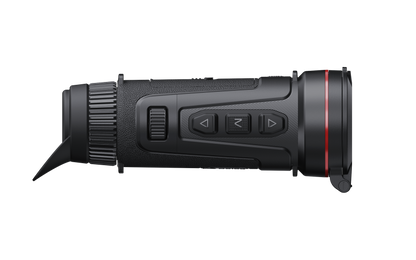

Ambidextrous Design, Effortless One-Handed Operation
Designed for ambidextrous use, the symmetrical housing ensures equal comfort for left- and right-handed users. The ergonomic control layout enables smooth, one-handed operation
Fine Focus Control, Fingertip Precision
The mini focusing roller allows for fast, precise adjustments with a simple one finger scroll.
Large AMOLED Display for Upgraded Visuals
Building on the previous generation, the TD Gen3 LRF Series features a 0.49" AMOLED display with 1280×960 resolution, delivering sharper detail and a more comfortable viewing experience.
Built-in LRF For Precise Target Identification
Seamlessly integrated into the design, the built-in laser rangefinder enhances both portability and functionality, offering precise distance measurement up to 1200 metres.
Specifications
| Product Name | Guide Kodiak TK635L 3.0 Thermal Monocular |
|---|---|
| Laser Rangefinder | 1200m |
| Type-C Power Supply | USB-C (Power Supply/USB 2.0) |
| Battery Operating Time | 5.5 hours |
| Battery Type | 1 ×replaceable dedicated battery |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Hotspot | Yes |
| Capture Snapshot | - |
| Record Video | Yes |
| Working Temperature | -20°C to 50°C |
| Dimension | 182×67×79mm |
| Weight | 524g |
| Protection Level | IP67 |
| Image Pro | N/A |
| HSIS | N/A |
| Zoom Pro | N/A |
| Diopter | -6 to +6 |
| Exit Pupil | - |
| Palettes | White Hot, Black Hot, Amber Sepia, Red Hot, Iron Red, Blue Hot, Green Hot |
| Display | 1.03″ AMOLED 2560×2560 |
| Magnification | 2.8x-22.4x |
| Field of View (Degrees/m @ 100m) | 12.5°×10.0°/21.9×17.6 |
| Detection Range | 1800m |
| NETD | 15 mK |
| Response Waveband | 8–14 μm |
| Pixel Interval | 12μm |
| Frame Rate | 50 Hz |
| Sensor Resolution | 640×512 |
| Lens (Focal Length) | 35mm |
