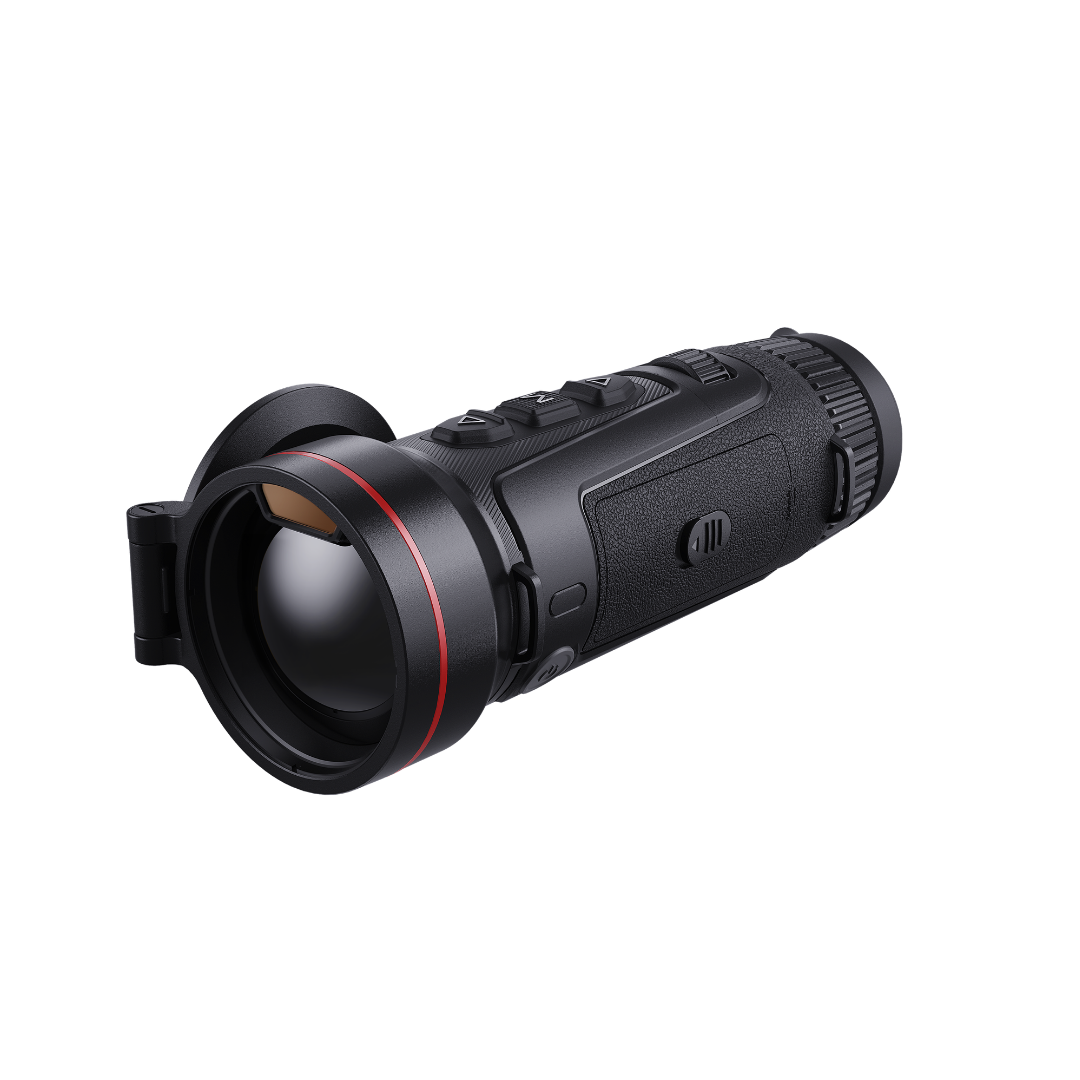

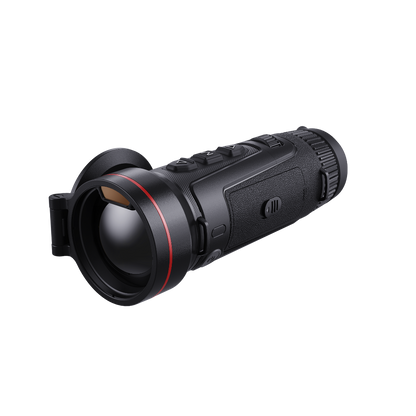

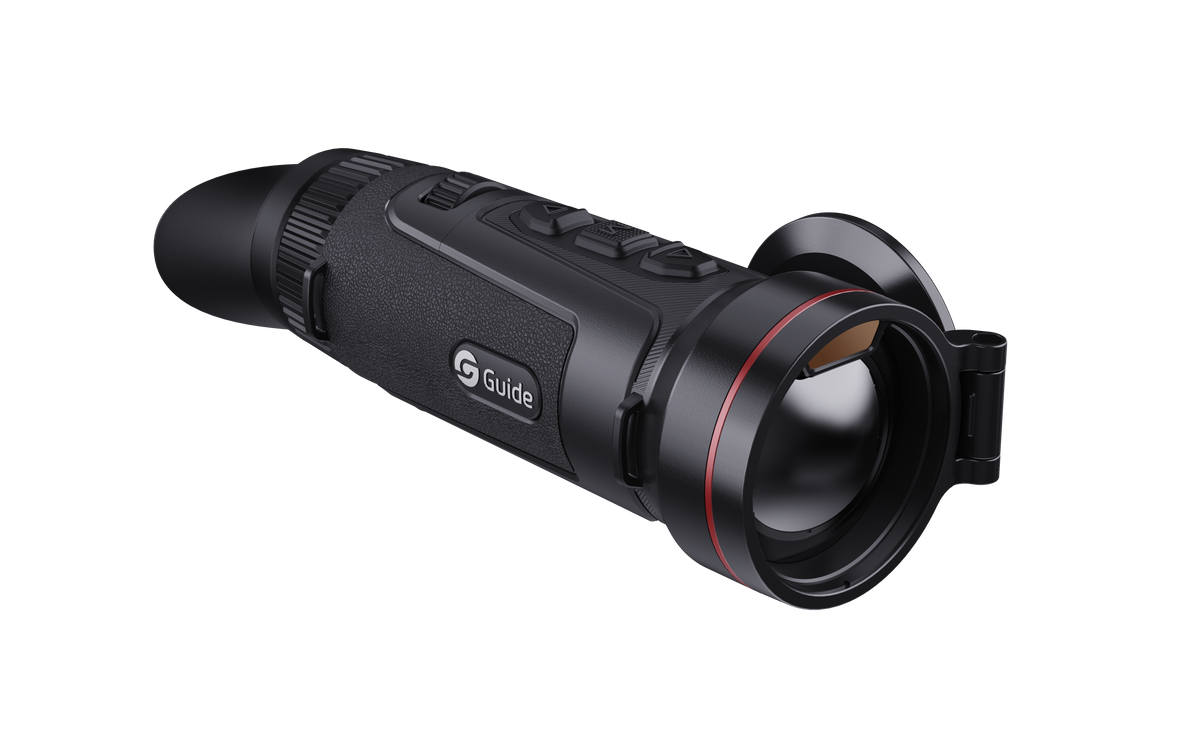

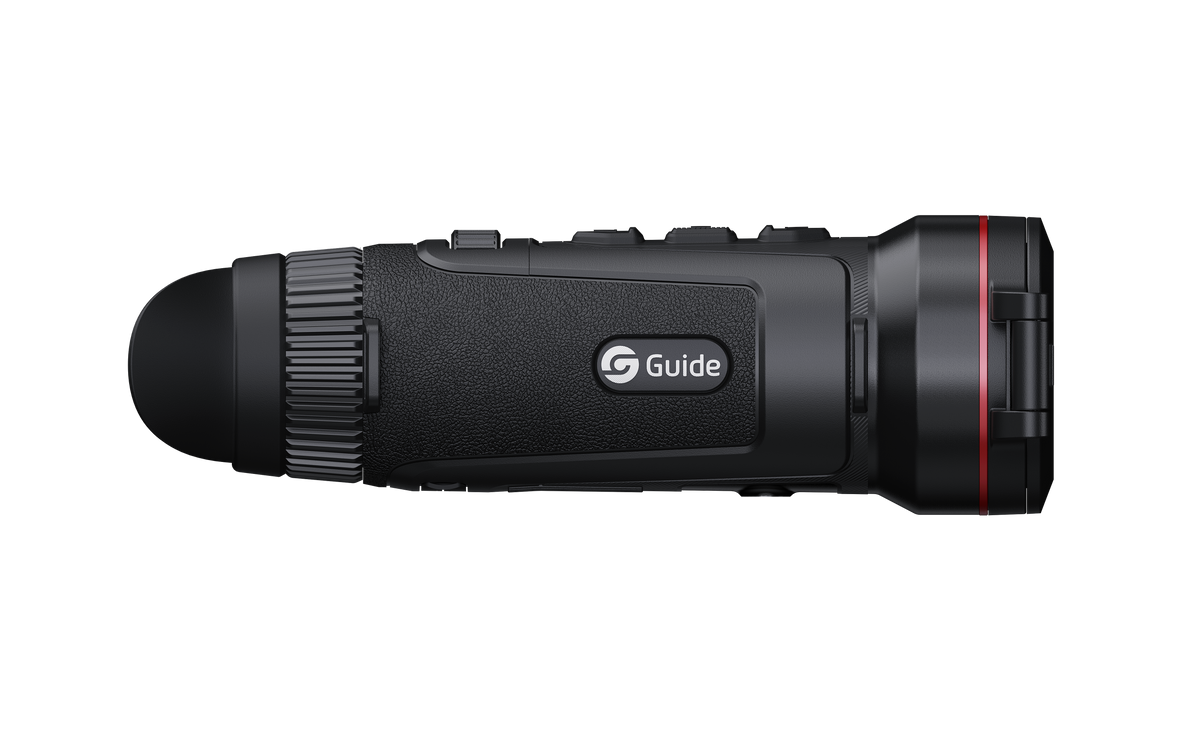

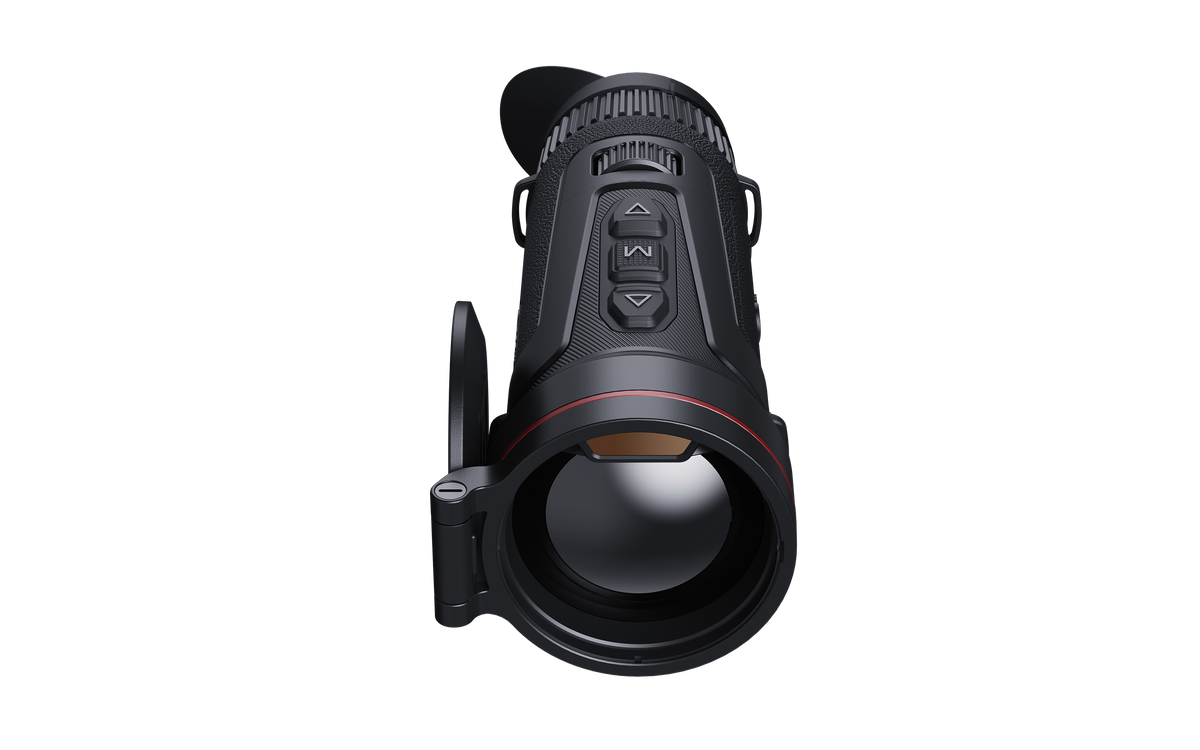

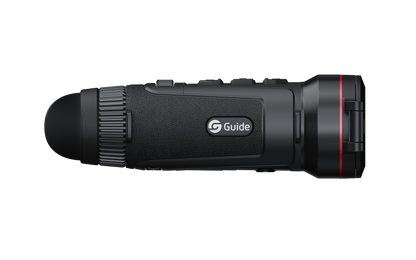

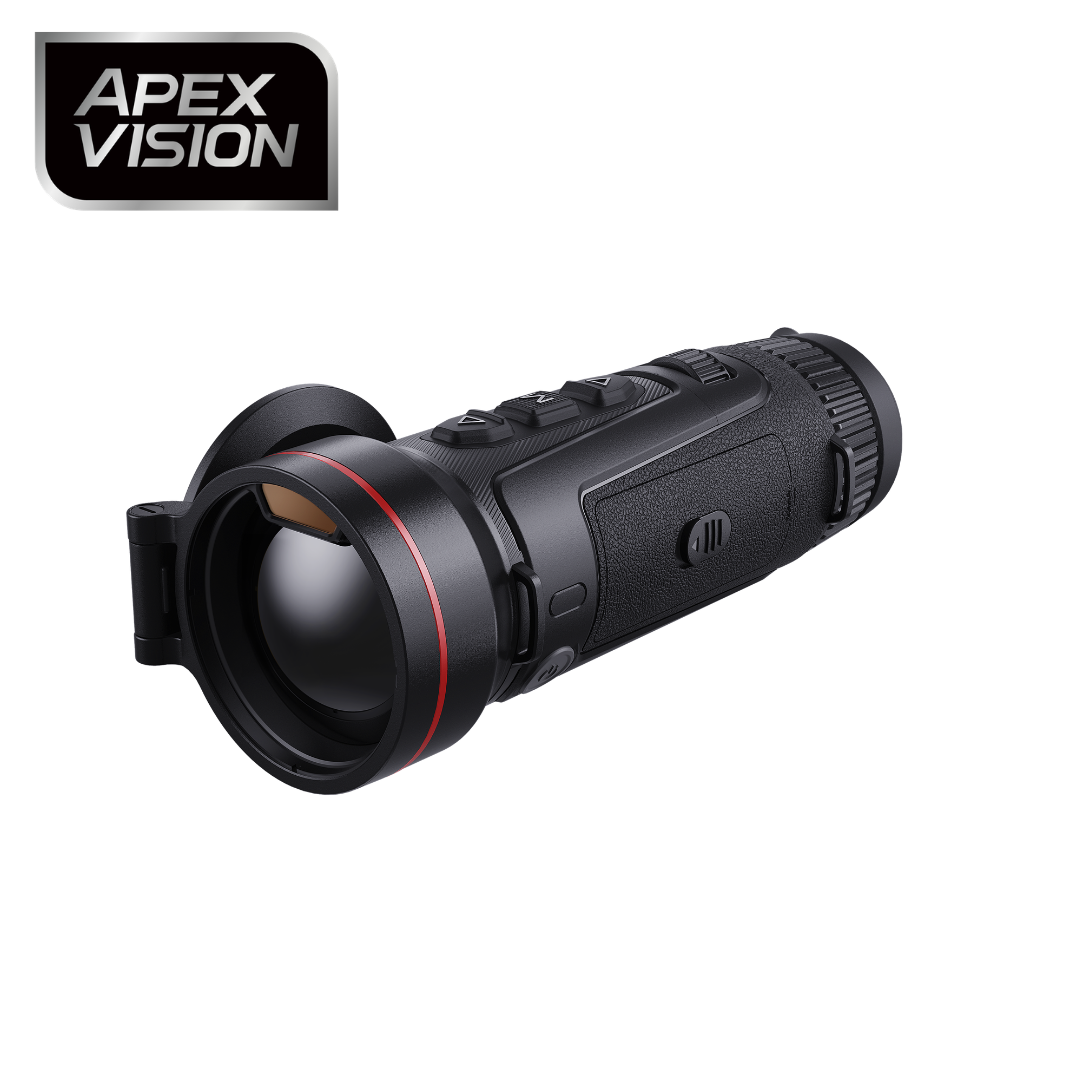

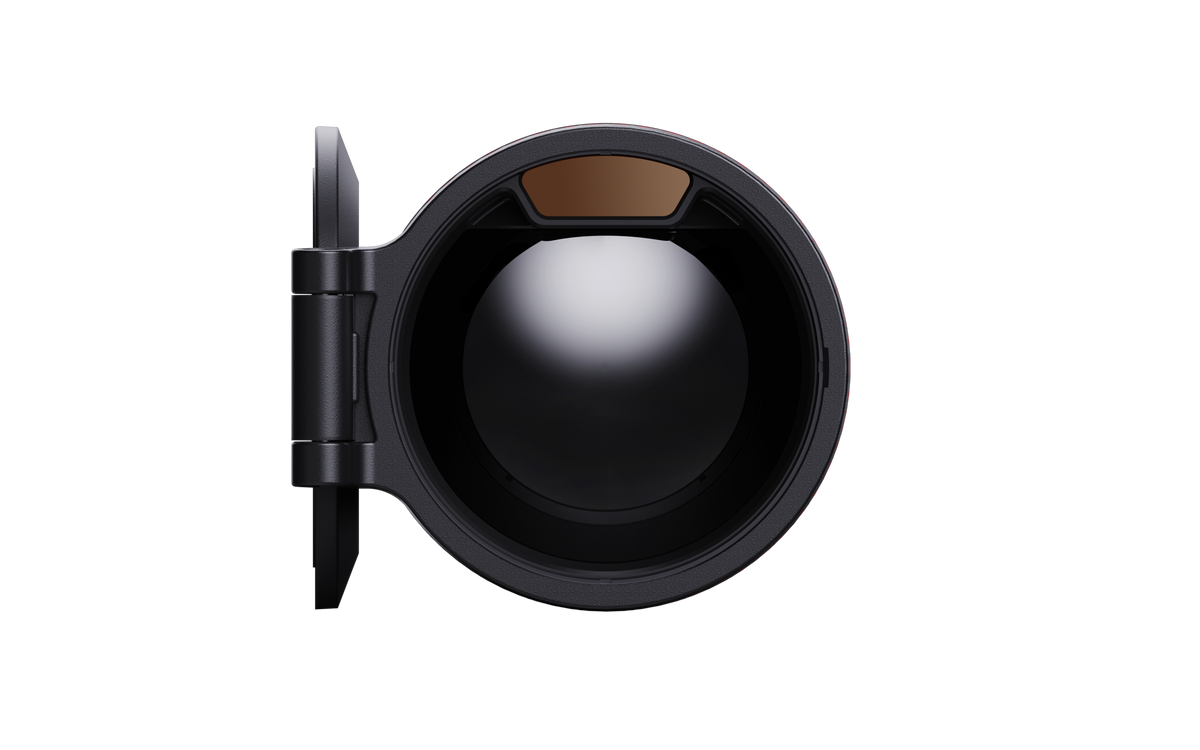

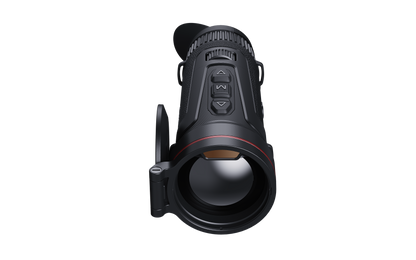

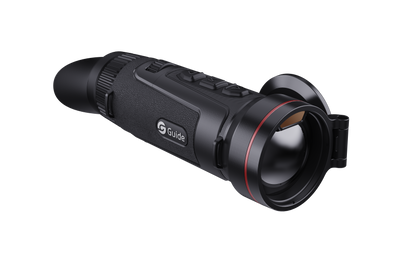

Guide Kodiak TK650L 3.0 Thermal Monocular
Guide Kodiak TK650L 3.0 Thermal Monocular

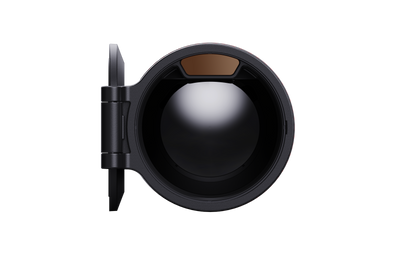

Scan further after dark with the Guide KODIAK TK650L 3.0. Its 640 × 512 thermal sensor, 50mm F0.9 lens and detection range of up to 2600m make it well suited to spotting distant heat signatures across open country. The APEXVISION imaging system brings out thermal detail, while shutterless technology keeps your view uninterrupted as you follow movement.
Once something catches your eye, use the built-in 1200m laser rangefinder to check its distance directly through the monocular. A 1.03-inch AMOLED display provides a detailed view, with 4×–32× magnification to take a closer look.
Ready in just three seconds, the TK650L puts focus control within easy reach with an ergonomic roller and a symmetrical design for either hand. Record your discoveries with 64GB of built-in storage for photos, video and audio, and stay out longer with up to 5.5 hours of operating time and a replaceable battery. IP67-rated water and dust protection rounds out a monocular built for time in the field.
SKU: TIGUI626
Complete ApexVision S1 System Architecture
Guide Sensmart's next-generation thermal imaging solution that redefines the infrared core of outdoor optics from the ground up. Engineered for any condition, ApexVision delivers ultra-clear visuals with smooth, ghost-free motion, high-fidelity imaging, and razor-sharp detail at long range.
Powerful 12μm Detector for Sharper Images
The TD Gen3 LRF Series features a 12μm infrared detector, available in 640×512 and 400×300 resolutions, paired with a 35mm lens to deliver crisp, detailed images even in complete darkness.

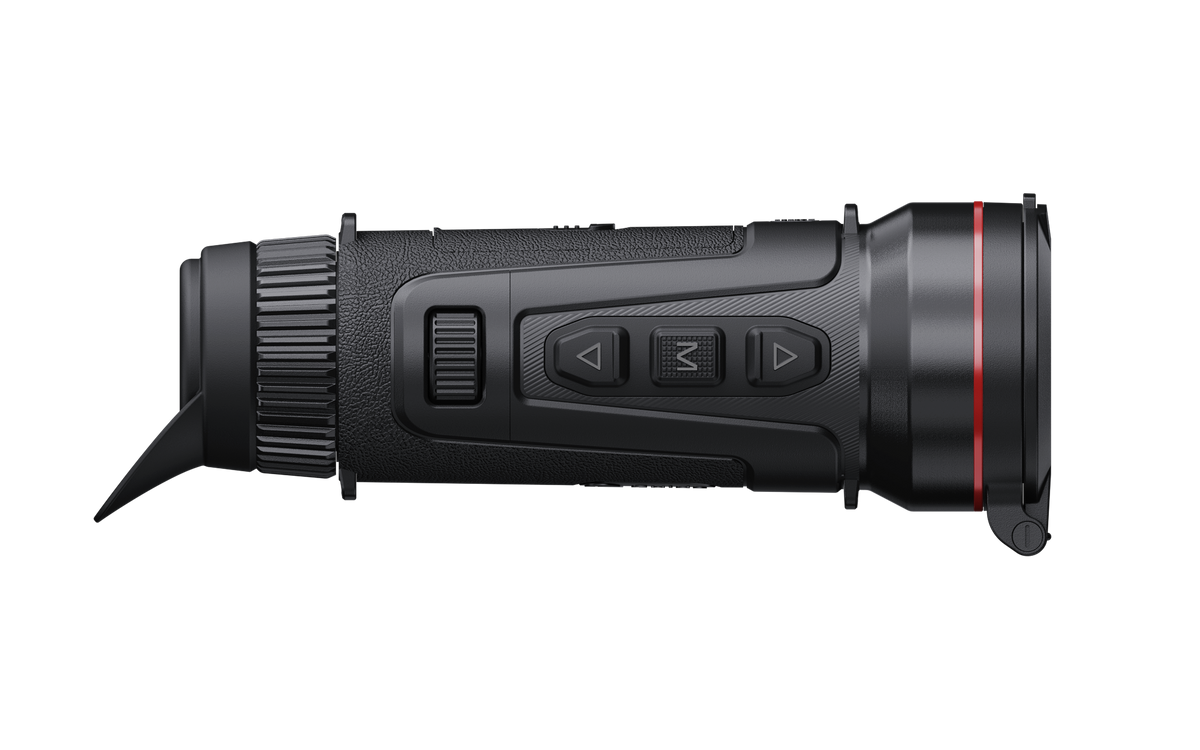

Ambidextrous Design, Effortless One-Handed Operation
Designed for ambidextrous use, the symmetrical housing ensures equal comfort for left- and right-handed users. The ergonomic control layout enables smooth, one-handed operation

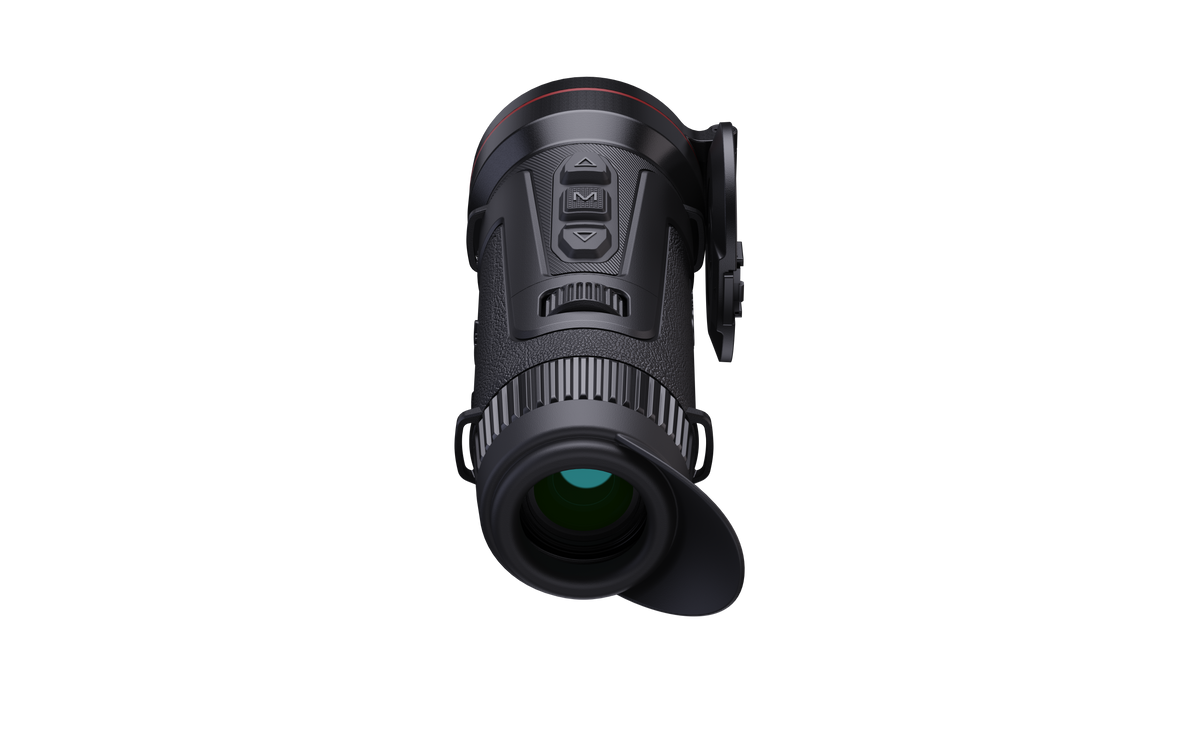

Fine Focus Control, Fingertip Precision
The mini focusing roller allows for fast, precise adjustments with a simple one finger scroll.
Large AMOLED Display for Upgraded Visuals
Building on the previous generation, the TD Gen3 LRF Series features a 0.49" AMOLED display with 1280×960 resolution, delivering sharper detail and a more comfortable viewing experience.
Built-in LRF For Precise Target Identification
Seamlessly integrated into the design, the built-in laser rangefinder enhances both portability and functionality, offering precise distance measurement up to 1200 metres.
Specifications
| Product Name | Guide Kodiak TK650L 3.0 Thermal Monocular |
|---|---|
| Laser Rangefinder | 1200m |
| Type-C Power Supply | USB-C (Power Supply/USB 2.0) |
| Battery Operating Time | 5.5 hours |
| Battery Type | 1 ×replaceable dedicated battery |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Hotspot | Yes |
| Capture Snapshot | - |
| Record Video | Yes |
| Working Temperature | -20°C to 50°C |
| Dimension | 191×67×79mm |
| Weight | 593g |
| Protection Level | IP67 |
| Image Pro | N/A |
| HSIS | N/A |
| Zoom Pro | N/A |
| Diopter | -6 to +6 |
| Exit Pupil | - |
| Palettes | White Hot, Black Hot, Amber Sepia, Red Hot, Iron Red, Blue Hot, Green Hot |
| Display | 1.03″ AMOLED 2560×2560 |
| Magnification | 4x-32x |
| Field of View (Degrees/m @ 100m) | 8.8°×7.0°/15.4×12.3 |
| Detection Range | 2600m |
| NETD | 15 mK |
| Response Waveband | 8–14 μm |
| Pixel Interval | 12μm |
| Frame Rate | 50 Hz |
| Sensor Resolution | 640×512 |
| Lens (Focal Length) | 50mm |
