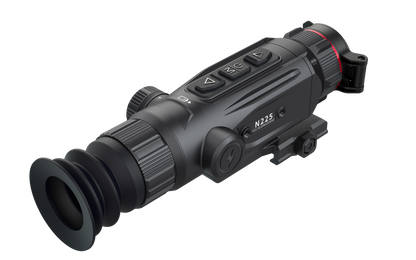

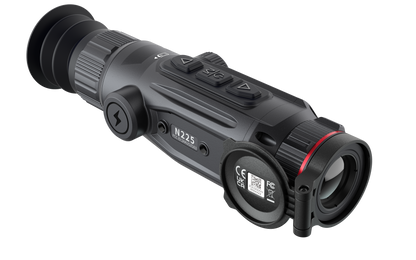

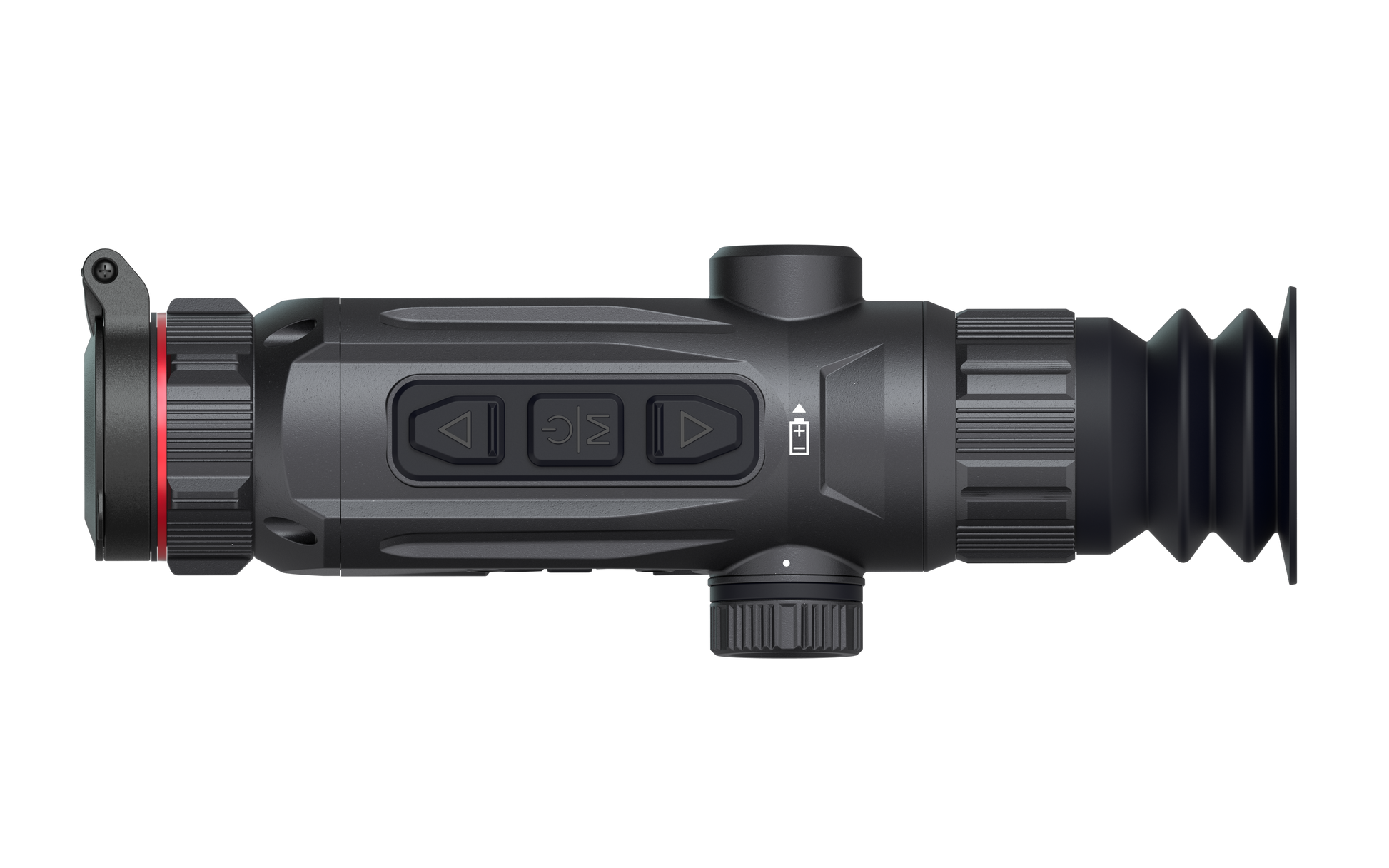

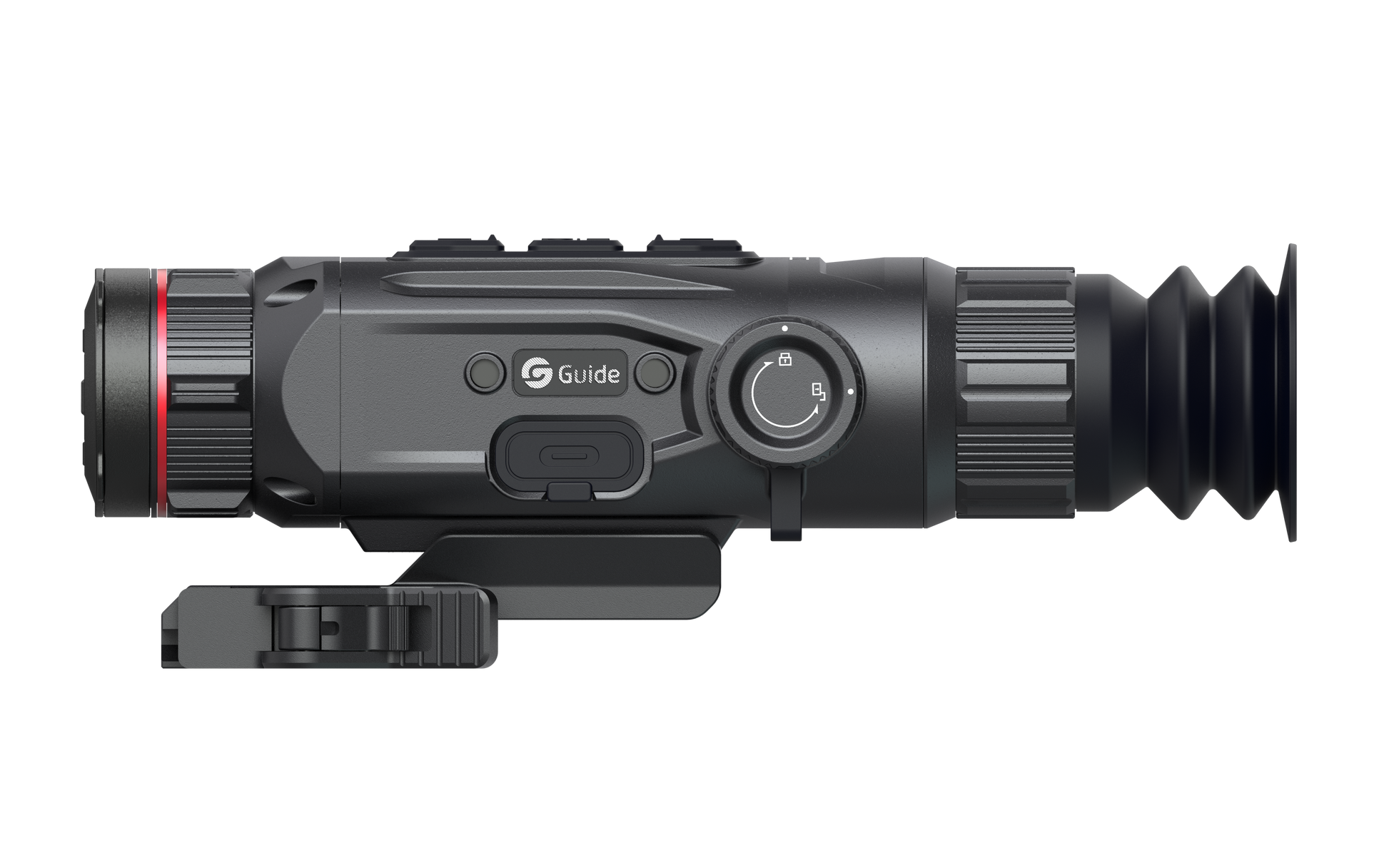

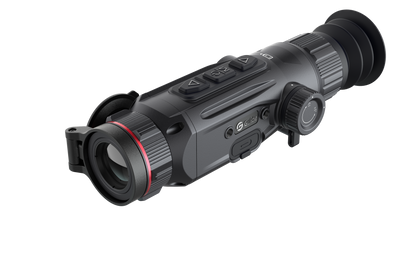

Guide NOVA N225 Thermal Scope
Guide NOVA N225 Thermal Scope

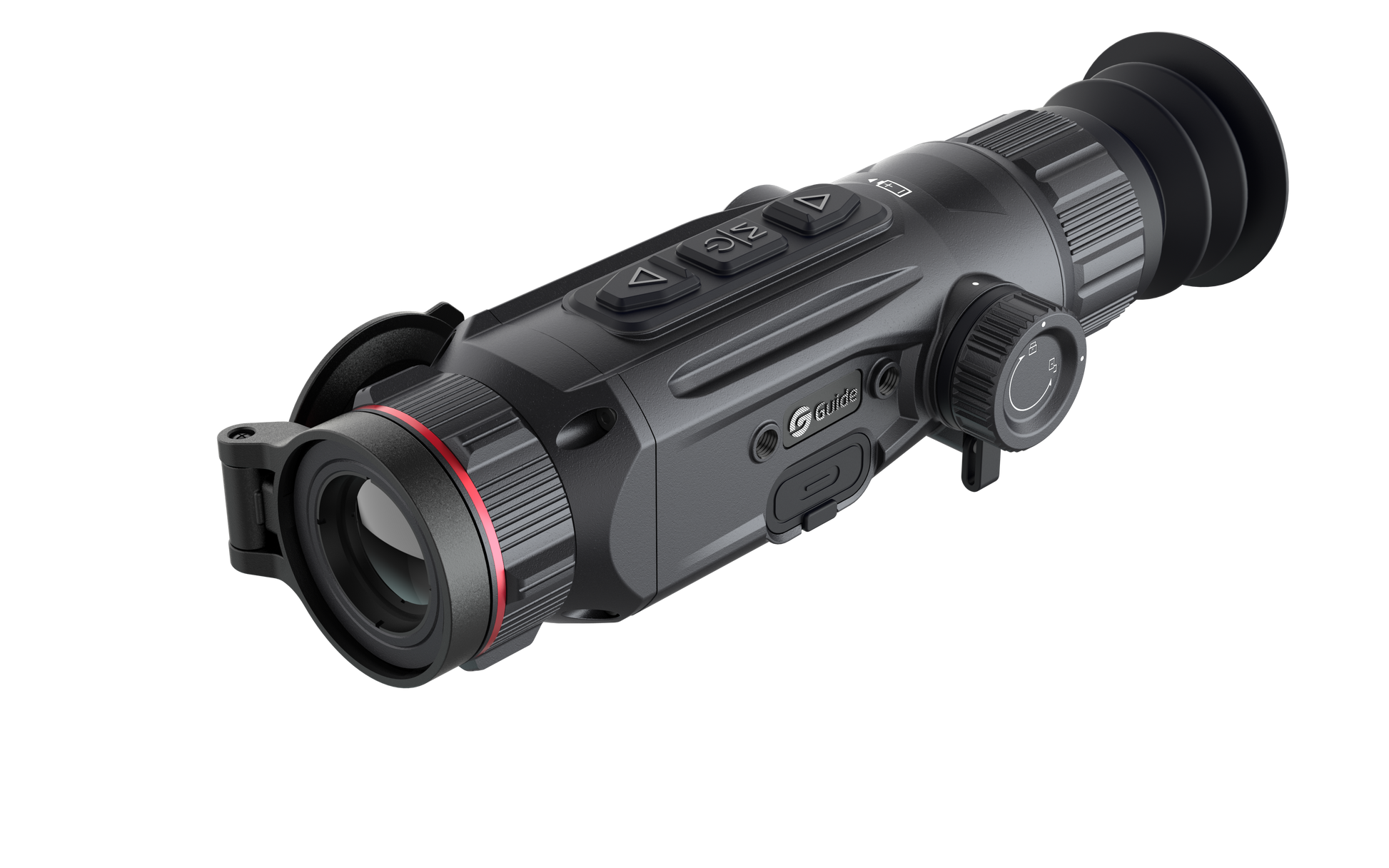

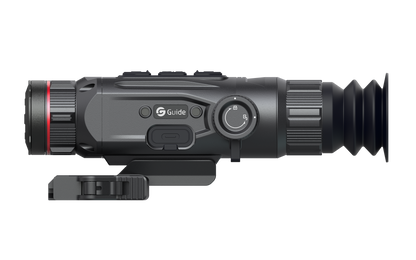

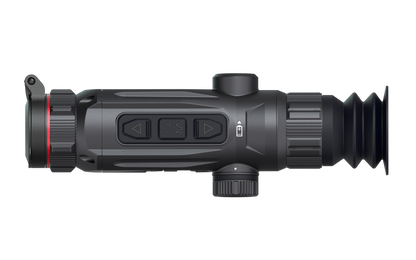

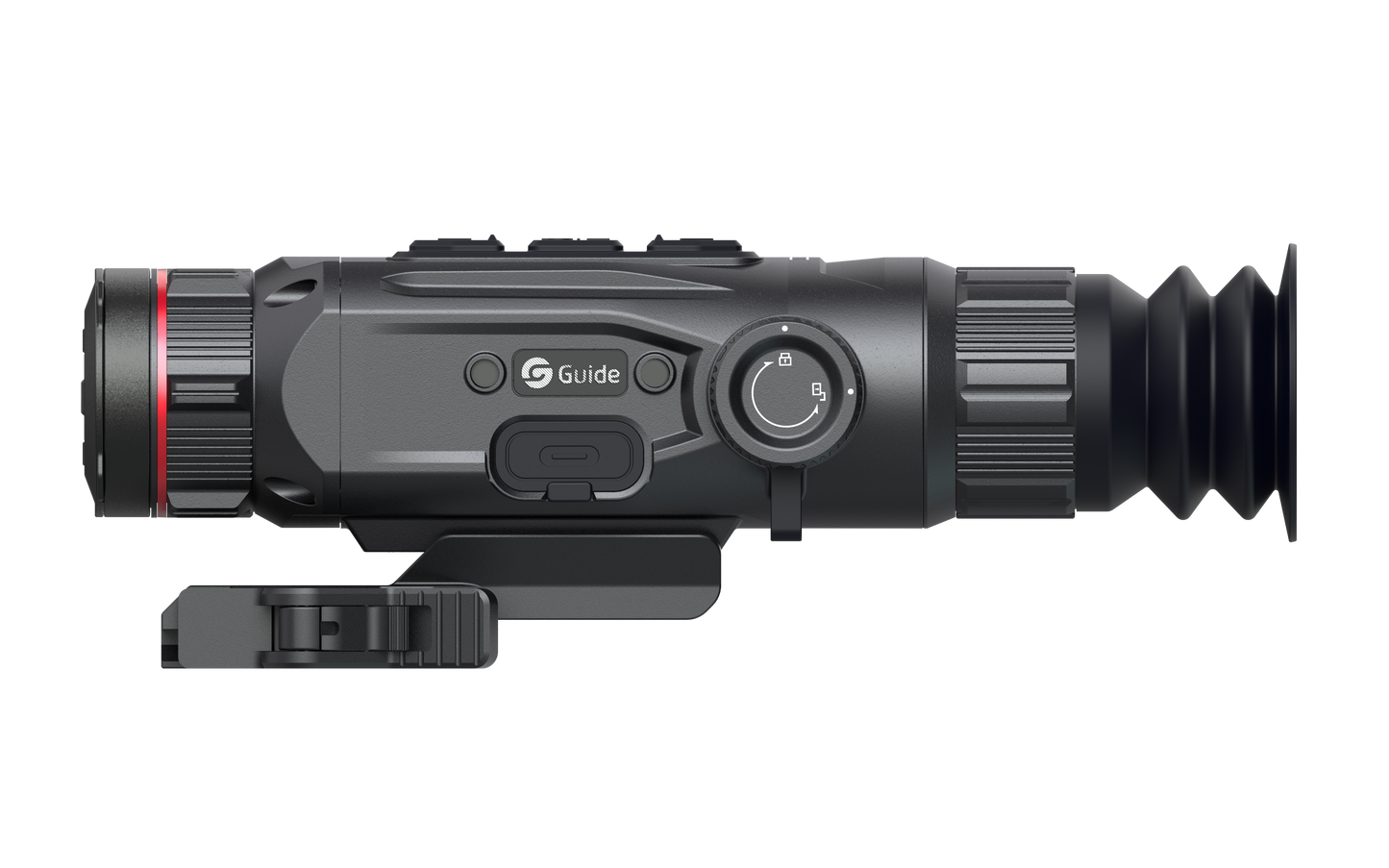

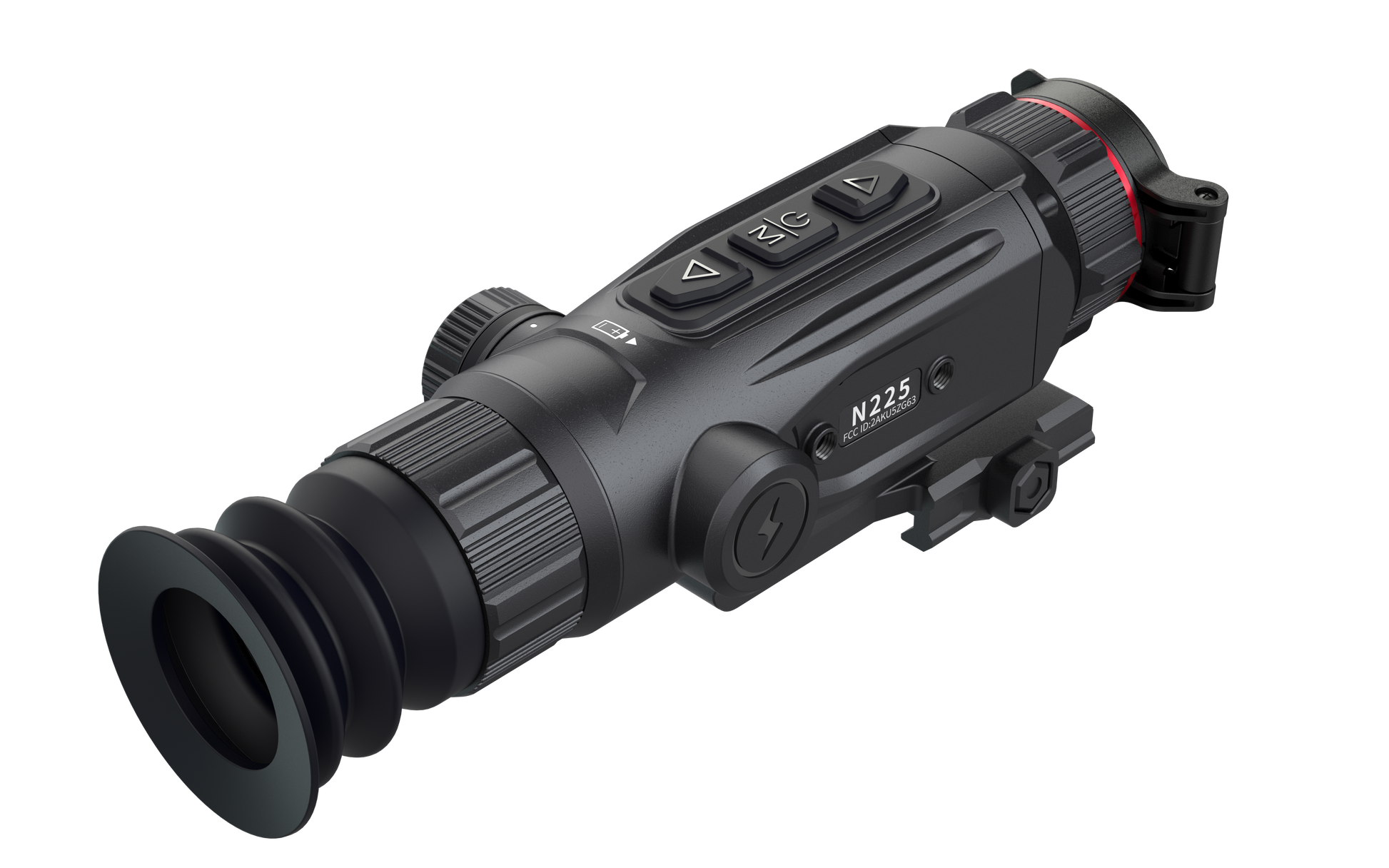

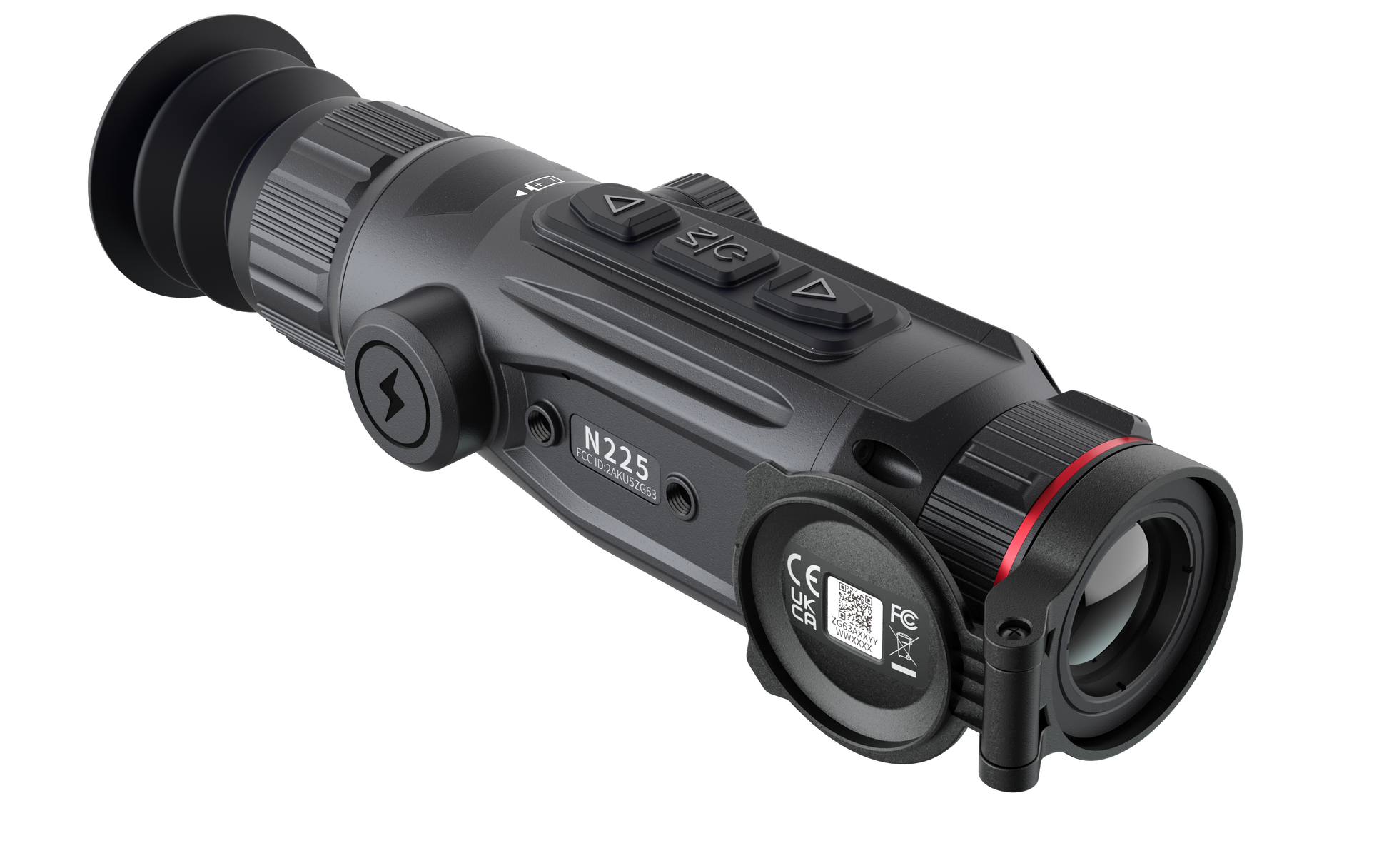

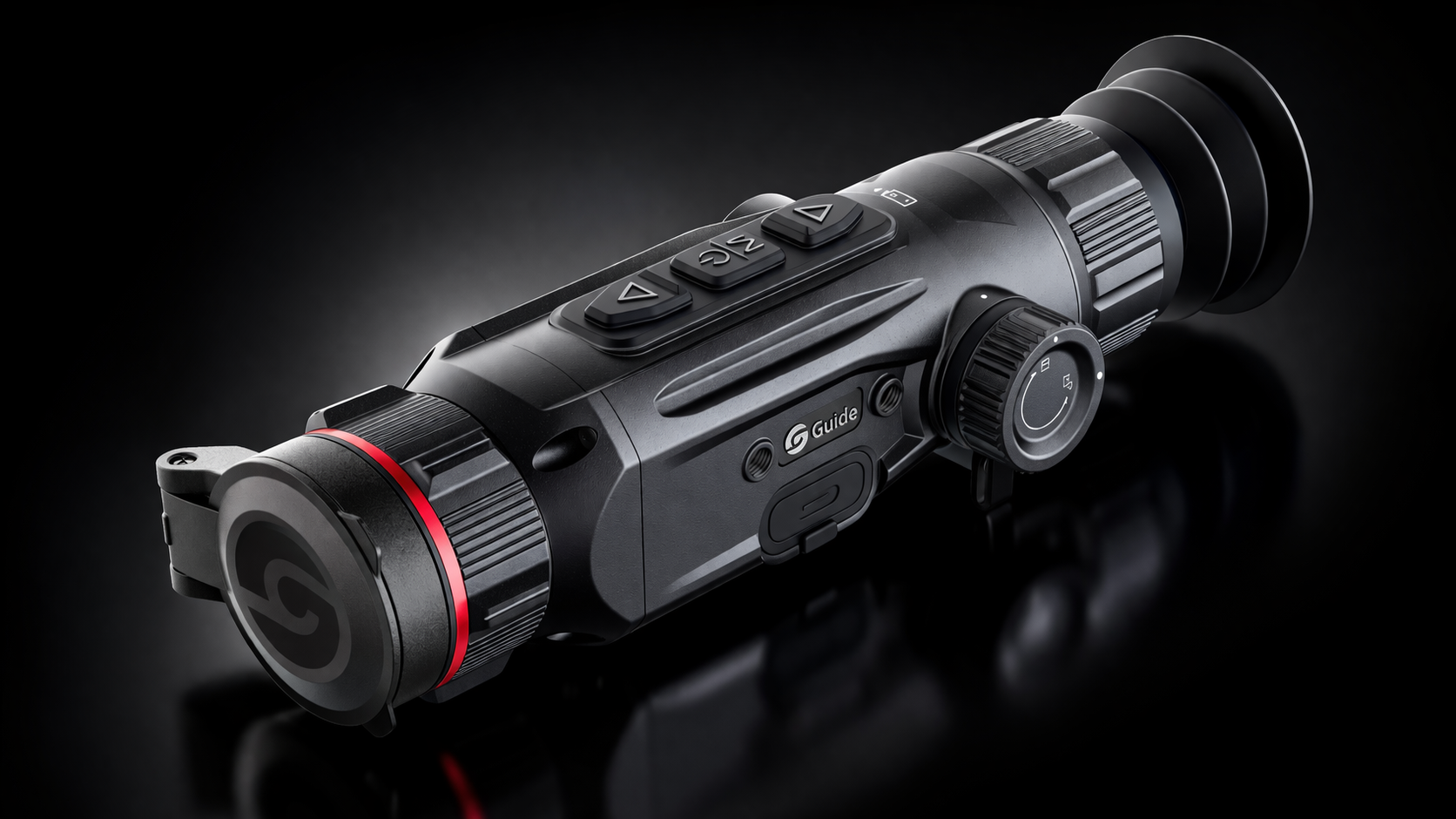

The Guide Nova N225 is a compact, high-performance thermal scope designed for hunters who want serious capability without adding bulk to their rifle. Weighing just over 500g, it keeps your setup balanced and comfortable for long sessions in the field.
At its core is a 256×192 @12μm thermal sensor with excellent <25mK NETD sensitivity, allowing you to detect subtle heat differences even in poor weather or low-contrast environments.
With detection distance of 1000m, a smooth 50Hz refresh rate and recoil-activated photo/video recording, you’ll see fluid motion and automatically capture key moments before and after the shot.
Lightweight at 500g, Perfectly Balanced
With a compact, streamlined build weighing just over 500 grams, the NOVA Series is easy to carry and mount, while maintaining excellent balance for stable, accurate aiming.
Fast Charging with All-Day Endurance
Powered by a replaceable 18500 battery, the NOVA Series provides up to 8 hours of runtime. With 20W quick charging and hot-swap capability, it ensures continuous performance without interruption.
Hyper-Light Imaging for Superior Clarity
Powered by an advanced Hyper-Light algorithm, a 12μm detector, and a lag-free AMOLED display, the NOVA Series delivers enhanced contrast and finer detail for exceptional image clarity.

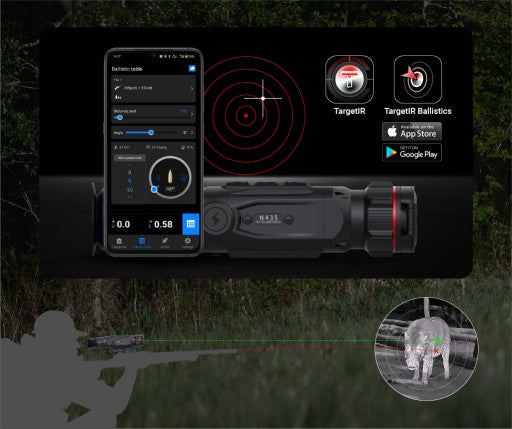

Ballistic Calculator for On-Target Precision
The TargetIR Ballistics App helps deliver precise shooting with an extensive, regularly updated database of calibres and manufacturers, combined with advanced algorithms for accurate trajectory calculation.
Robust Performance, Built to Endure
Durable yet comfortable, the housing features a refined metallic texture with a premium tactile feel. Rated IP67 and resistant to recoil up to 6000J, it delivers reliable performance and long-term durability.
Specifications
| Product Name | Guide NOVA N225 Thermal Scope |
|---|---|
| Laser Rangefinder | N/A |
| Type-C Power Supply | 5V DC 2A via USB-C |
| Battery Operating Time | 8 hours continuous |
| Battery Type | Replaceable Rechargeable Li-ion 18500 Battery |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Hotspot | 2.4 GHz / 5 GHz Wi-Fi |
| Capture Snapshot | Yes |
| Record Video | Yes |
| Working Temperature | From -20°C to 50°C |
| Dimension | 222.5×73×57.5mm |
| Weight | 506g |
| Protection Level | IP67 |
| Image Pro | N/A |
| HSIS | N/A |
| Zoom Pro | N/A |
| Diopter | -5D to +5D |
| Exit Pupil | - |
| Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Display | 0.39'' AMOLED 1024×768 |
| Magnification | 3.6x~14.4x |
| Field of View (Degrees/m @ 100m) | 7°×5.3° |
| Detection Range | 1300m |
| NETD | Less than 25mK |
| Response Waveband | 8μm to 14μm |
| Pixel Interval | 12μm |
| Frame Rate | 50Hz |
| Sensor Resolution | 256x192 |
| Lens (Focal Length) | 25mm F1.0 |
