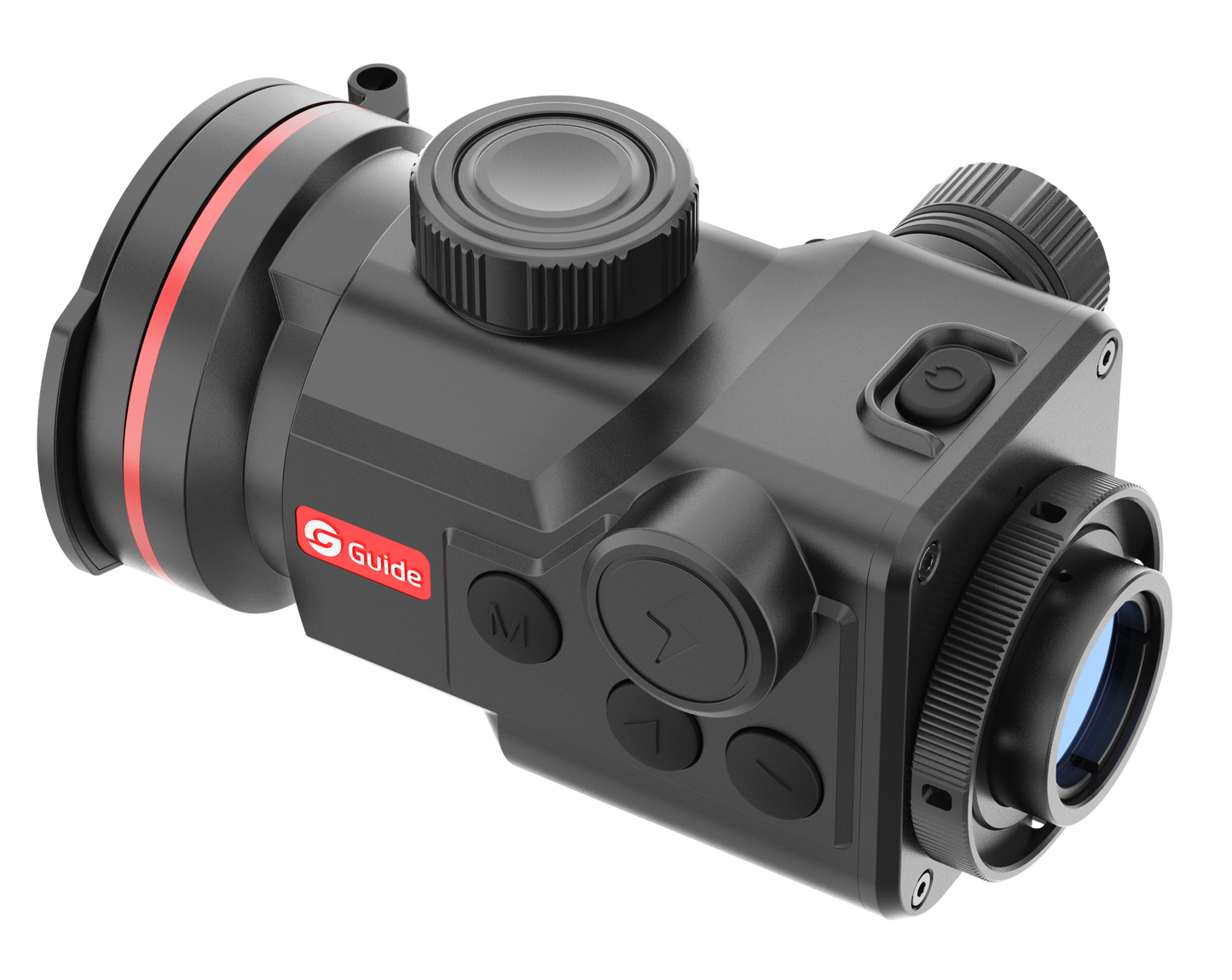

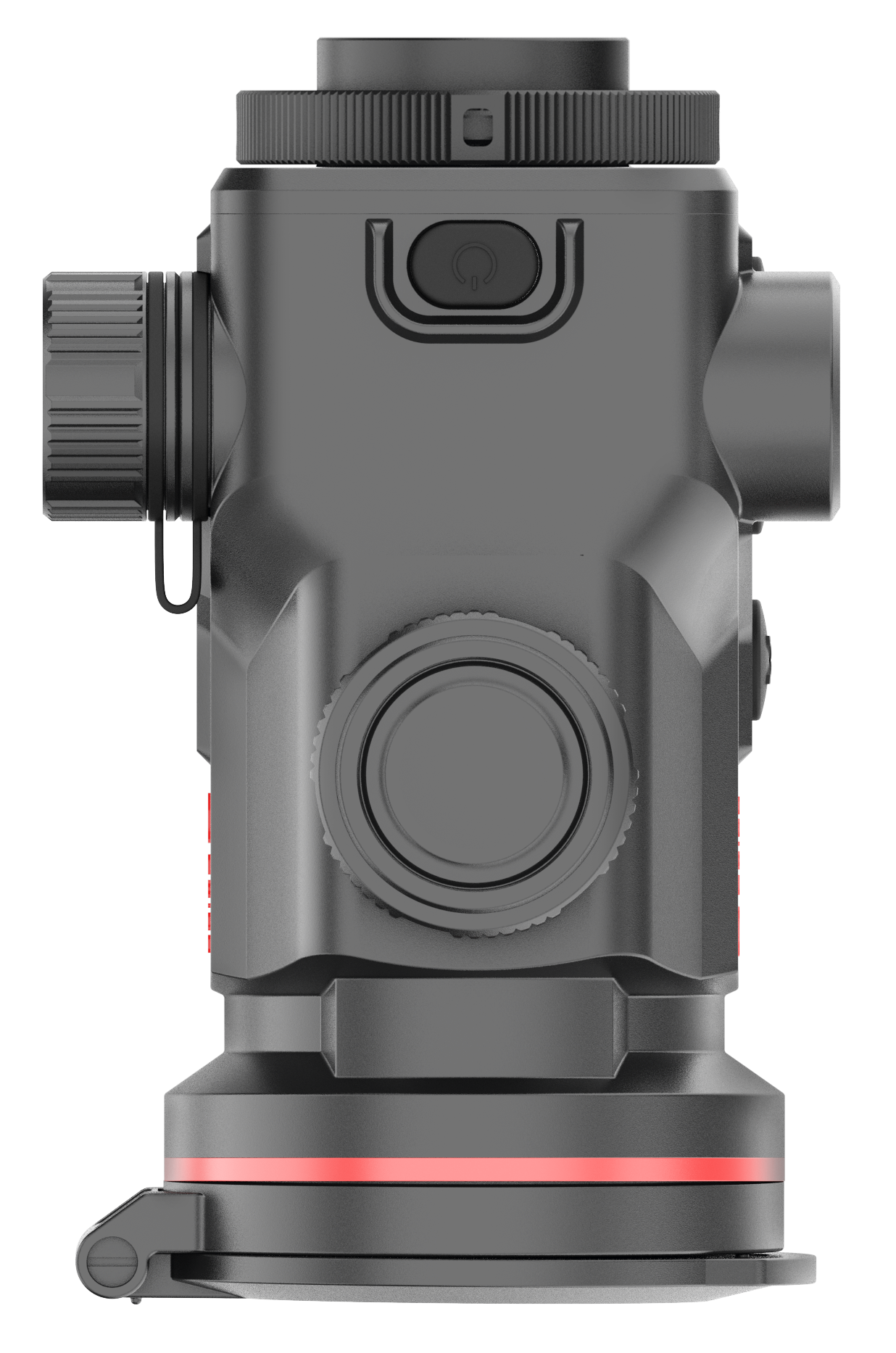

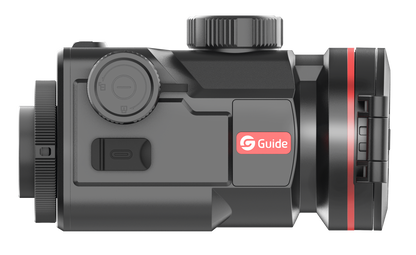

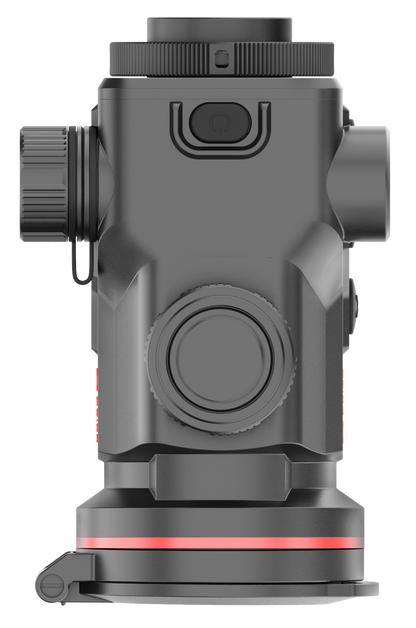

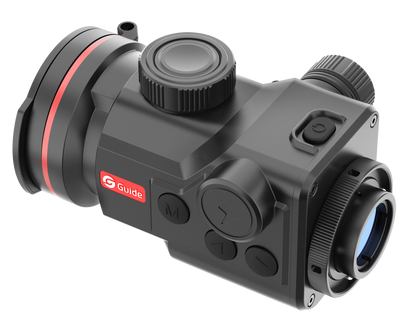

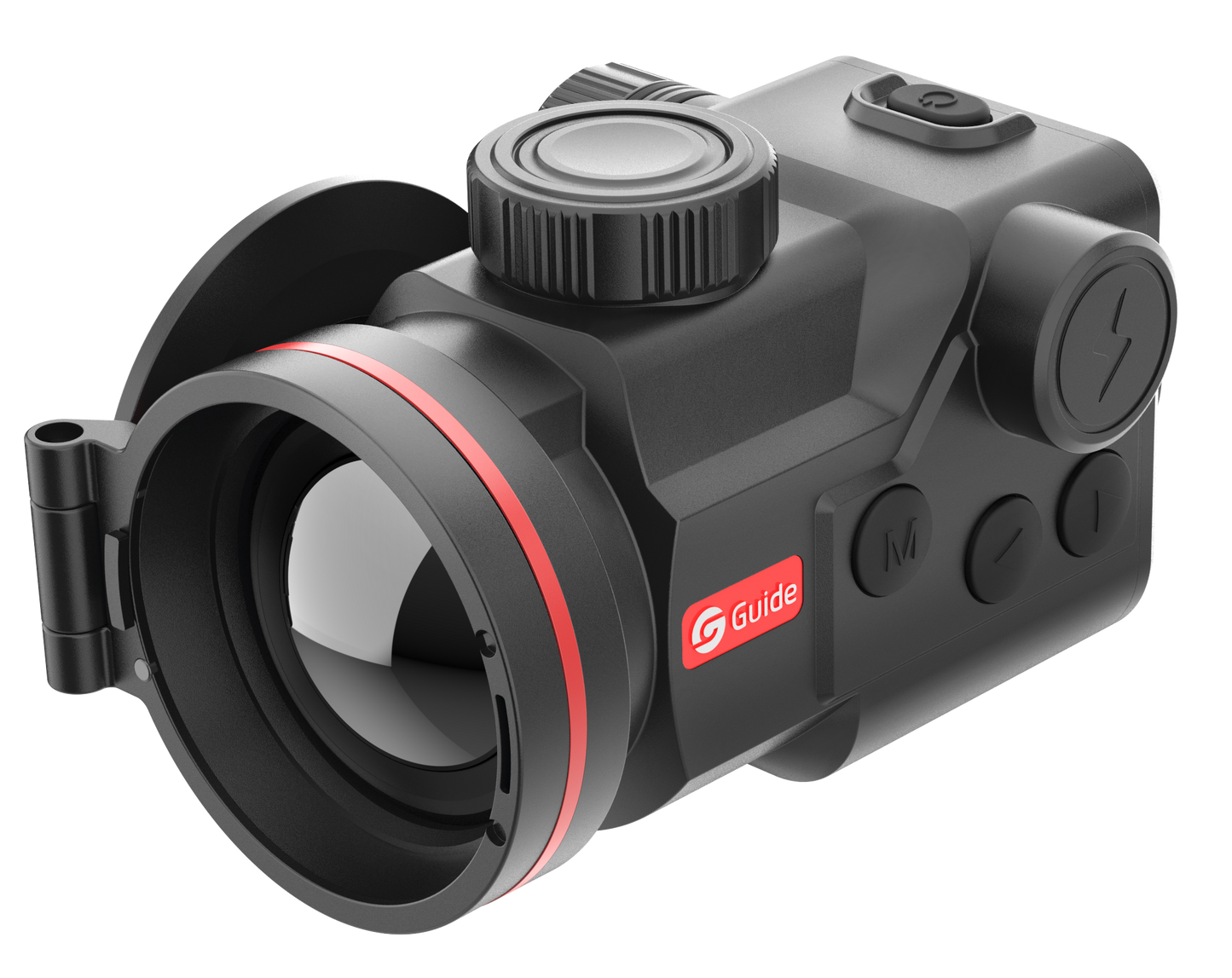

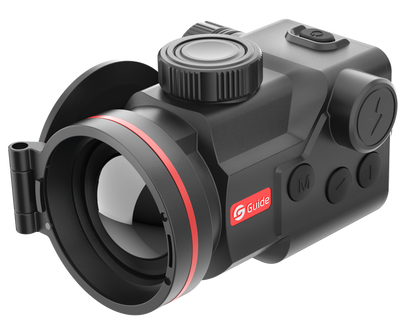

Guide TB650 2.0 Thermal Clip-On Scope
Guide TB650 2.0 Thermal Clip-On Scope
The TB 2.0 Series is a next-generation thermal clip-on built for hunters who demand precision and stealth. Weighing under 490g, its compact, lightweight design packs in advanced features including G-Zero shutterless technology, an integrated in-lens laser rangefinder, the powerful Hyper-Light image enhancement algorithm, and a standard replaceable 18650 battery. The result is unmatched downrange accuracy, superior imaging performance, and effortless handling in the field.
True Shutterless Performance
With G-Zero Shutterless Design, startup is instant and uninterrupted, with no image freezing to distract you or cost you critical moments on target. By removing shutter calibration noise, it also ensures quieter, smoother performance in the field.
Hyper-Light Algorithm. Smarter Clarity.
Powered by an advanced Hyper-Light algorithm and a high-sensitivity thermal detector, it delivers exceptional clarity with finer detail, reduced noise, and enhanced contrast for long-range observation.
Hyper-Light Imaging for Superior Clarity
Powered by an advanced Hyper-Light algorithm, a 12μm detector, and a lag-free AMOLED display, the NOVA Series delivers enhanced contrast and finer detail for exceptional image clarity.
Ultra-Precise Zeroing for 15× Optics
With fine 1.22 cm @ 100 m adjustments, the TB 2.0 Series gives you precise control when zeroing. Optimised for use with daylight optics up to 15×, it maintains accuracy across every shot.
Integrated LRF - Built for Precision
With the laser rangefinder housed within the objective lens, the TB650P 2.0 minimises parallax and streamlines the device. This delivers more accurate distance readings for confident shooting and precise ballistic calculations.
Lightweight and Well-Balanced
Weighing just 480–490 g, the compact, palm-sized design keeps handling easy. Its balanced construction distributes weight evenly when mounted on a daylight scope, improving comfort and control in the field.
Specifications
| Product Name | Guide TB650 2.0 Thermal Clip-On Scope |
|---|---|
| Laser Rangefinder | N/A |
| Type-C Power Supply | 5V DC 2A via USB-C |
| Battery Operating Time | 5 hours |
| Battery Type | 18650 Battery ×2 |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Hotspot | 2.4 GHz / 5 GHz Wi-Fi |
| Capture Snapshot | Yes |
| Record Video | Yes |
| Working Temperature | From -20°C to 50°C |
| Dimension | 144×86×79mm |
| Weight | 480g |
| Protection Level | IP68 |
| Image Pro | N/A |
| HSIS | N/A |
| Zoom Pro | N/A |
| Diopter | - |
| Exit Pupil | - |
| Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Display | 0.39'' AMOLED 1920×1080 |
| Magnification | 1x |
| Field of View (Degrees/m @ 100m) | 8.8°×6.6° |
| Detection Range | 2600m |
| NETD | NETD 18mK |
| Response Waveband | 8μm to 14μm |
| Pixel Interval | 12μm |
| Frame Rate | 50Hz |
| Sensor Resolution | 640×512 |
| Lens (Focal Length) | 50mm, F1.0 |
