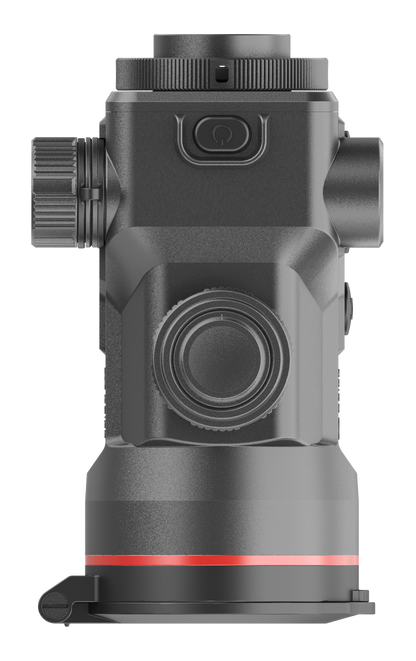

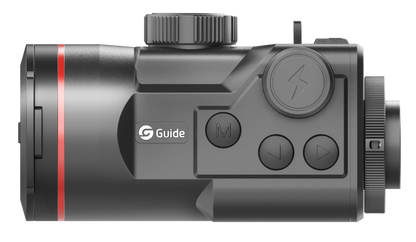

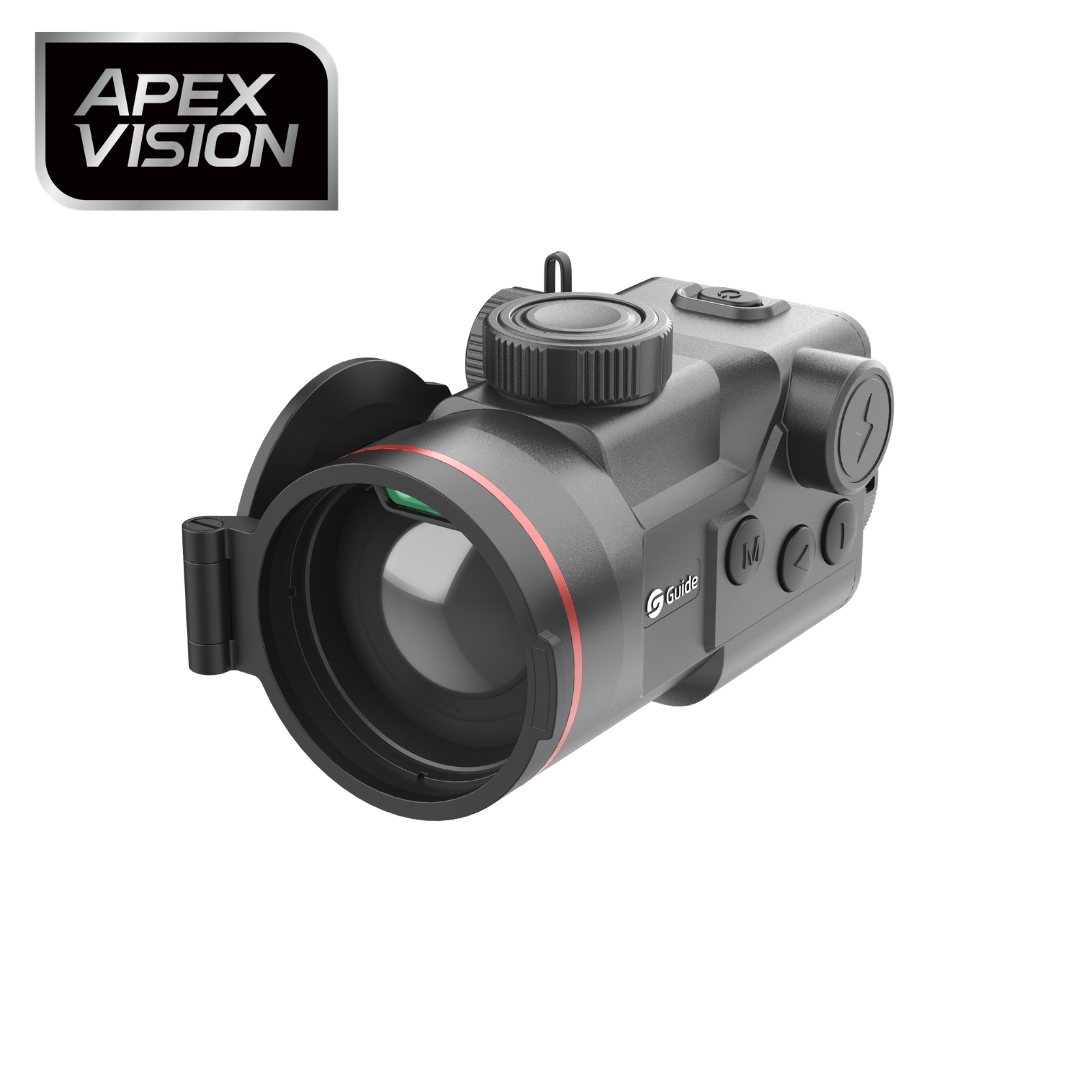

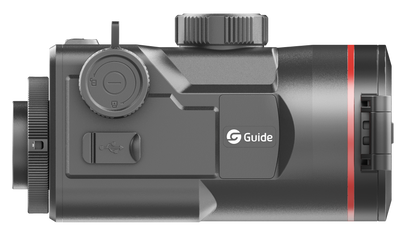

Guide TB650LS Thermal Clip-On
Guide TB650LS Thermal Clip-On
The Guide TB650LS is a thermal clip-on tailored for hunting, powered by the next-generation APEXVISION infrared imaging system. Featuring a 640×512@12μm resolution sensor with <15mK NETD sensitivty.
It brings precision in silence while integrating multiple intelligent features into a compact, lightweight housing weighing under 490g, G-Zero shutterless technology, a 1200m in-lens Laser Rangefinder, the Hyper-light image enhancement algorithm, and the standard replaceable 18650 battery.
It delivers unmatched downrange accuracy and exceptional handling convenience in the field.

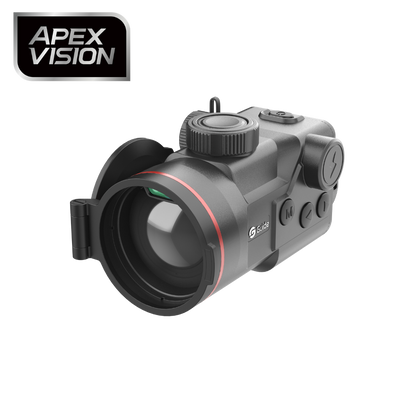

Complete ApexVision S1 System Architecture
Guide Sensmart's next-generation thermal imaging solution that redefines the infrared core of outdoor optics from the ground up. Engineered for any condition, ApexVision delivers ultra-clear visuals with smooth, ghost-free motion, high-fidelity imaging, and razor-sharp detail at long range.
True Shutterless Performance
With G-Zero Shutterless Design, startup is instant and uninterrupted, with no image freezing to distract you or cost you critical moments on target. By removing shutter calibration noise, it also ensures quieter, smoother performance in the field.
Hyper-Light Algorithm. Smarter Clarity.
Powered by an advanced Hyper-Light algorithm and a high-sensitivity thermal detector, it delivers exceptional clarity with finer detail, reduced noise, and enhanced contrast for long-range observation.
Hyper-Light Imaging for Superior Clarity
Powered by an advanced Hyper-Light algorithm, a 12μm detector, and a lag-free AMOLED display, the NOVA Series delivers enhanced contrast and finer detail for exceptional image clarity.
Ultra-Precise Zeroing for 15× Optics
With fine 1.22 cm @ 100 m adjustments, the TB 2.0 Series gives you precise control when zeroing. Optimised for use with daylight optics up to 15×, it maintains accuracy across every shot.
1200m Integrated LRF - Built for Precision
With the laser rangefinder housed within the objective lens, the TB650LS 2.0 minimises parallax and streamlines the device. This delivers more accurate distance readings for confident shooting and precise ballistic calculations.

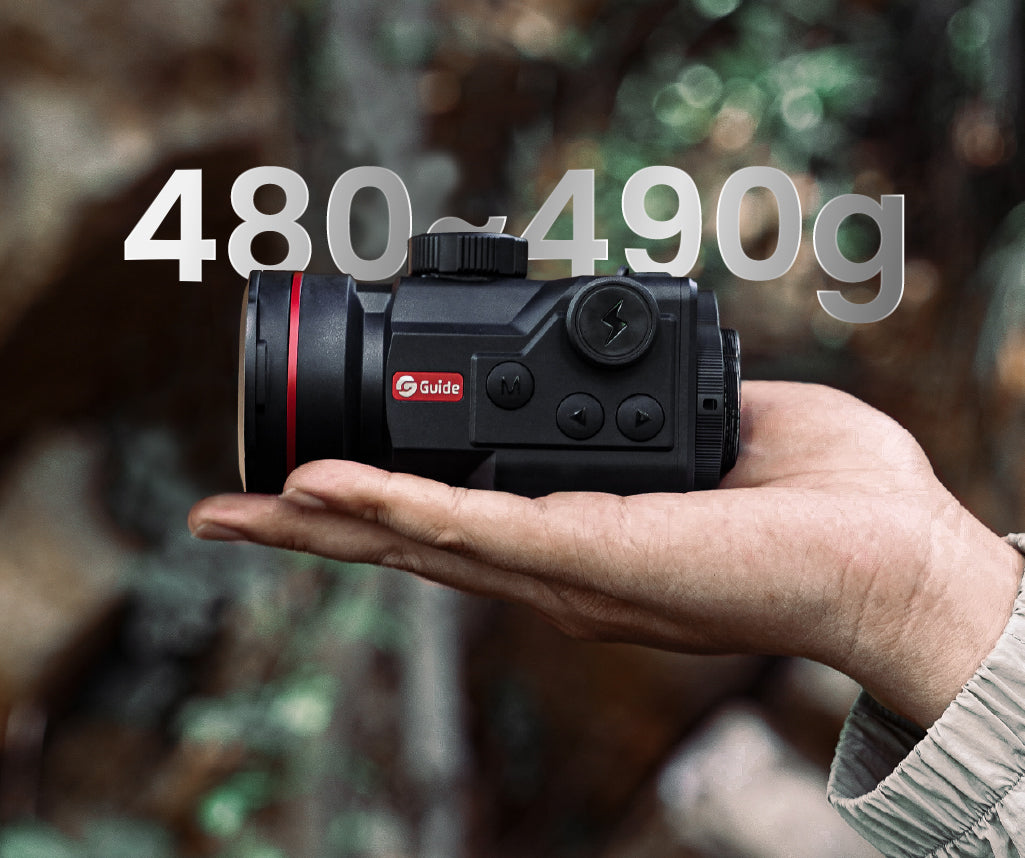

Lightweight and Well-Balanced

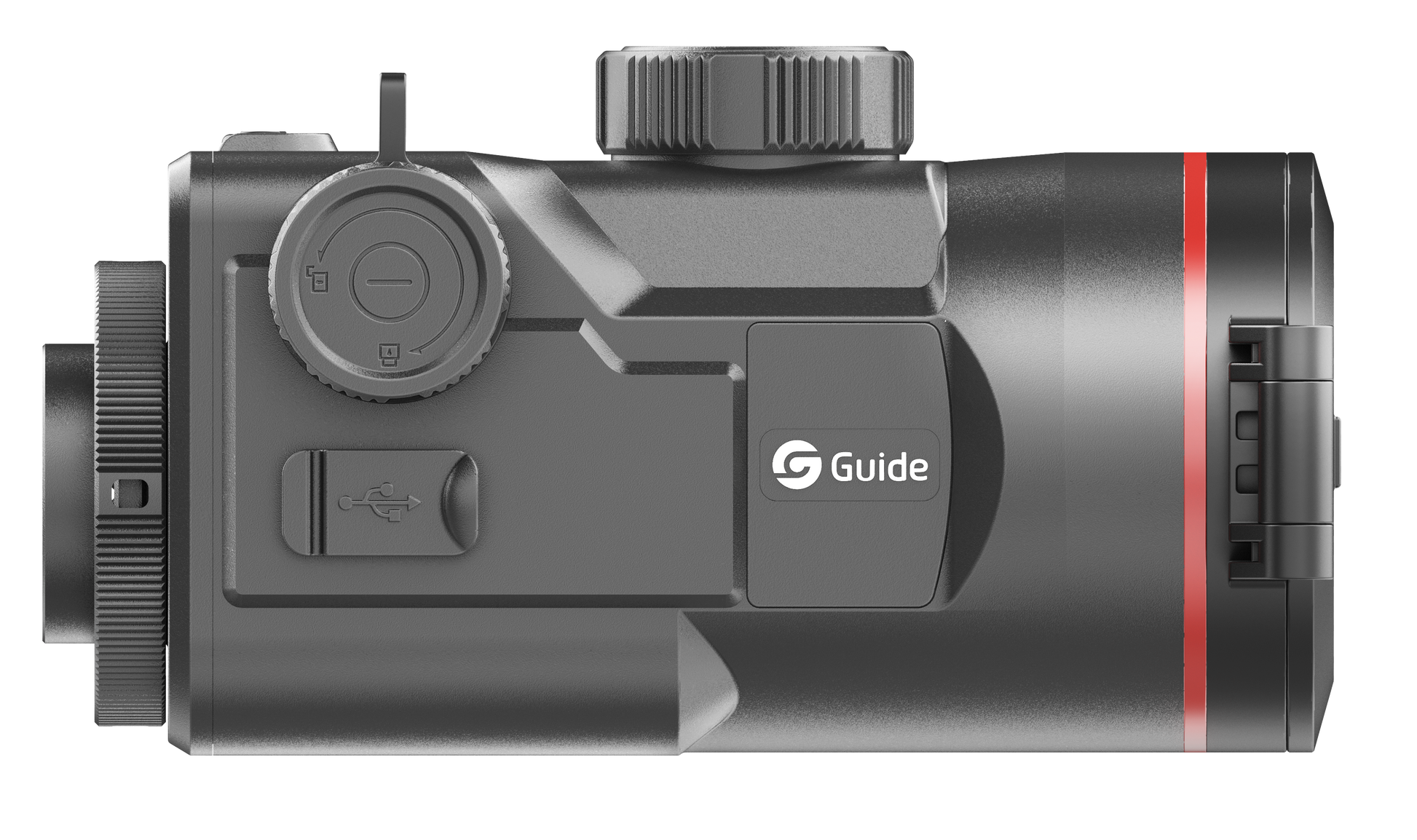

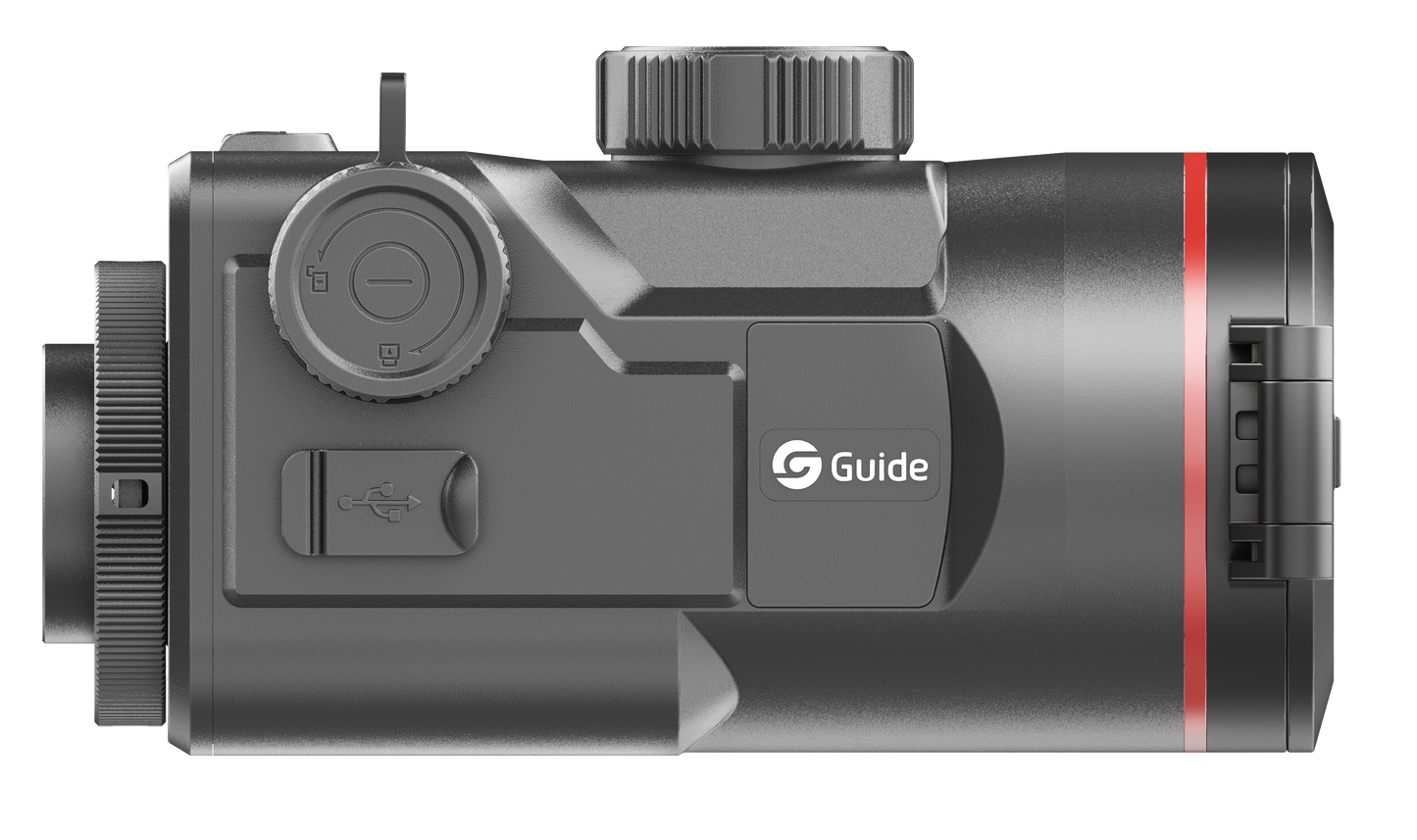

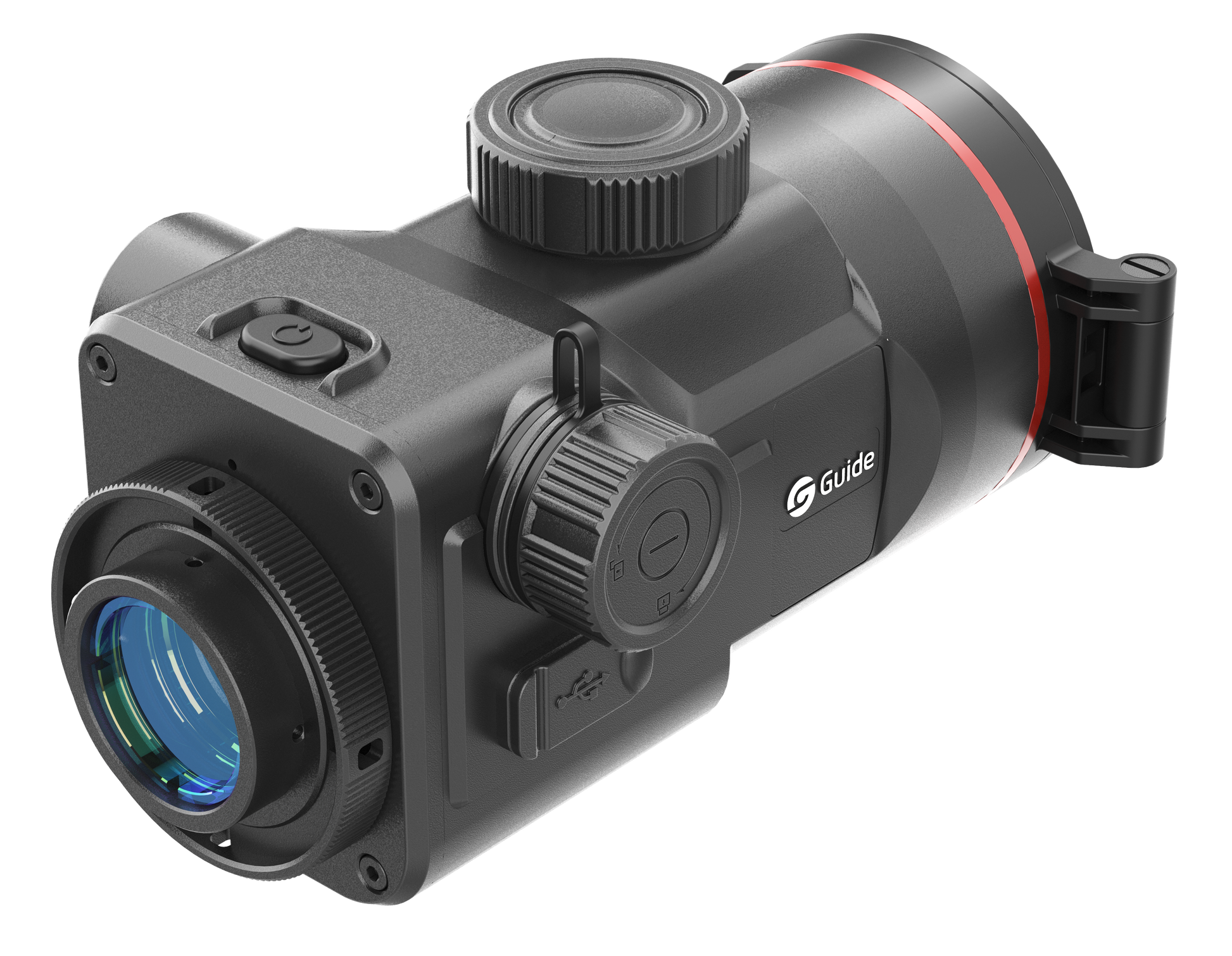

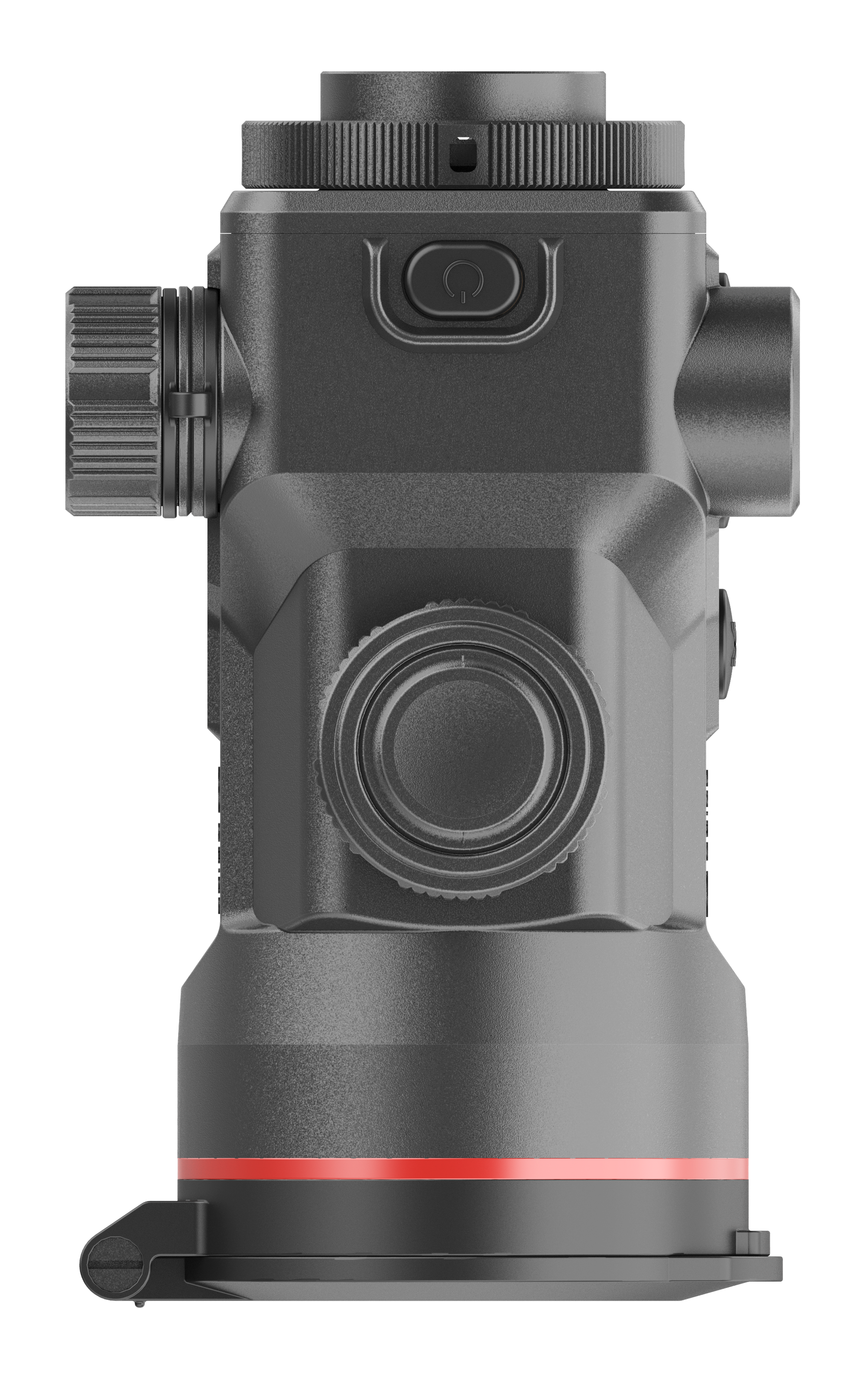

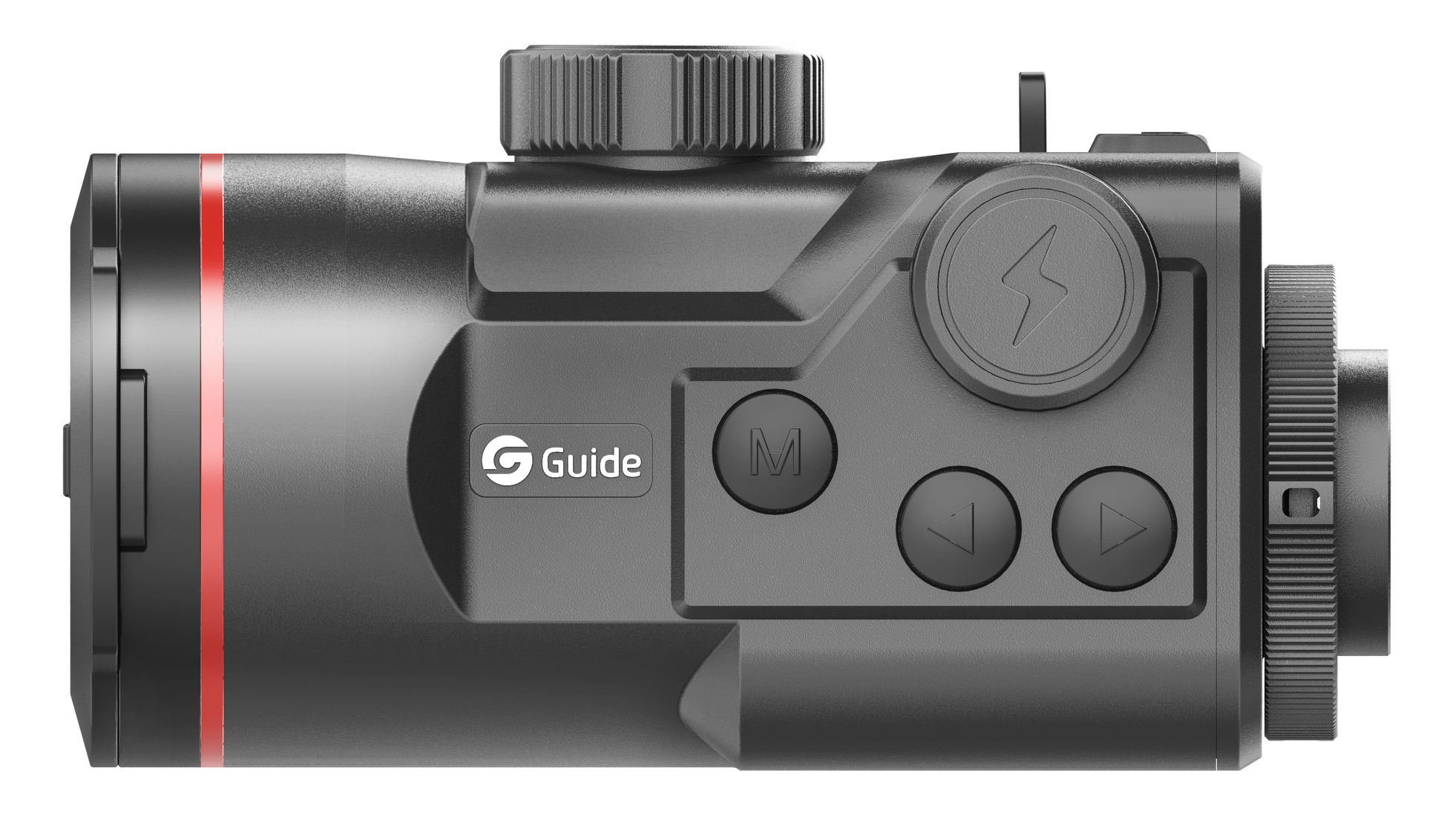

Weighing just 480–490 g, the compact, palm-sized design keeps handling easy. Its balanced construction distributes weight evenly when mounted on a daylight scope, improving comfort and control in the field.
Specifications
| Product Name | Guide TB650LS Thermal Clip-On |
|---|---|
| Laser Rangefinder | 1200m |
| Type-C Power Supply | USB-C (Power supply/USB2.0) |
| Battery Operating Time | 5 Hours |
| Battery Type | Single, Replaceable 18650 Battery |
| Audio Recording | Yes |
| Standby Mode | - |
| Hotspot | Yes |
| Capture Snapshot | - |
| Record Video | Yes |
| Working Temperature | -20°C to 50°C |
| Dimension | 139×86×79mm |
| Weight | 485g |
| Protection Level | IP68 |
| Image Pro | N/A |
| HSIS | N/A |
| Zoom Pro | N/A |
| Diopter | - |
| Exit Pupil | - |
| Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Display | 0.39'' AMOLED 1920×1080 |
| Magnification | 1x |
| Field of View (Degrees/m @ 100m) | 8.8°×6.6° |
| Detection Range | 2600m |
| NETD | 15mK |
| Response Waveband | 8 to 14μm |
| Pixel Interval | 12μm |
| Frame Rate | 50Hz |
| Sensor Resolution | 640×512 |
| Lens (Focal Length) | 50mm |
