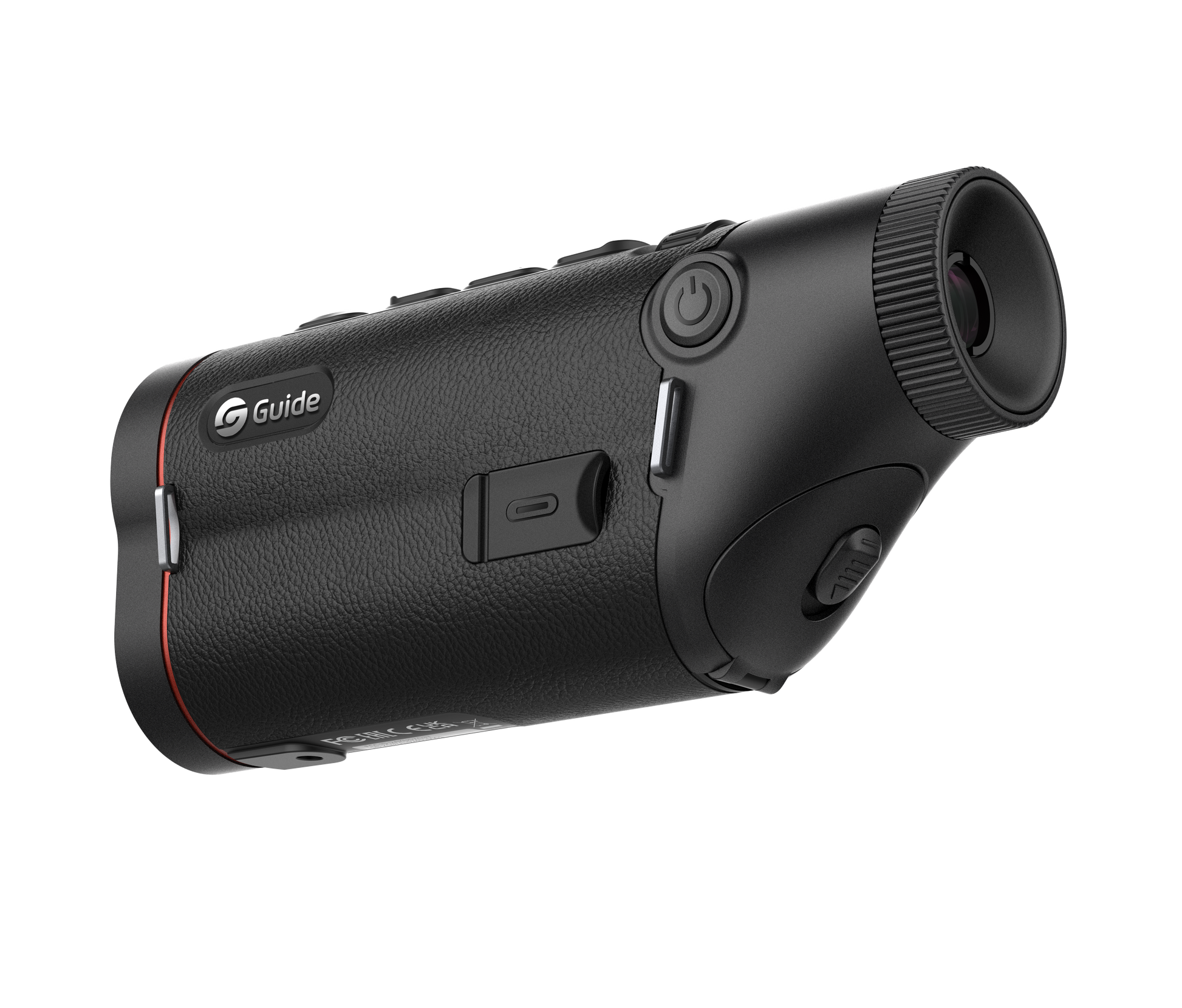

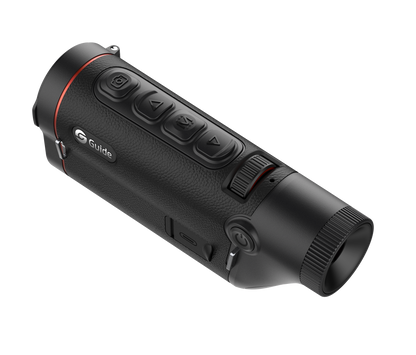

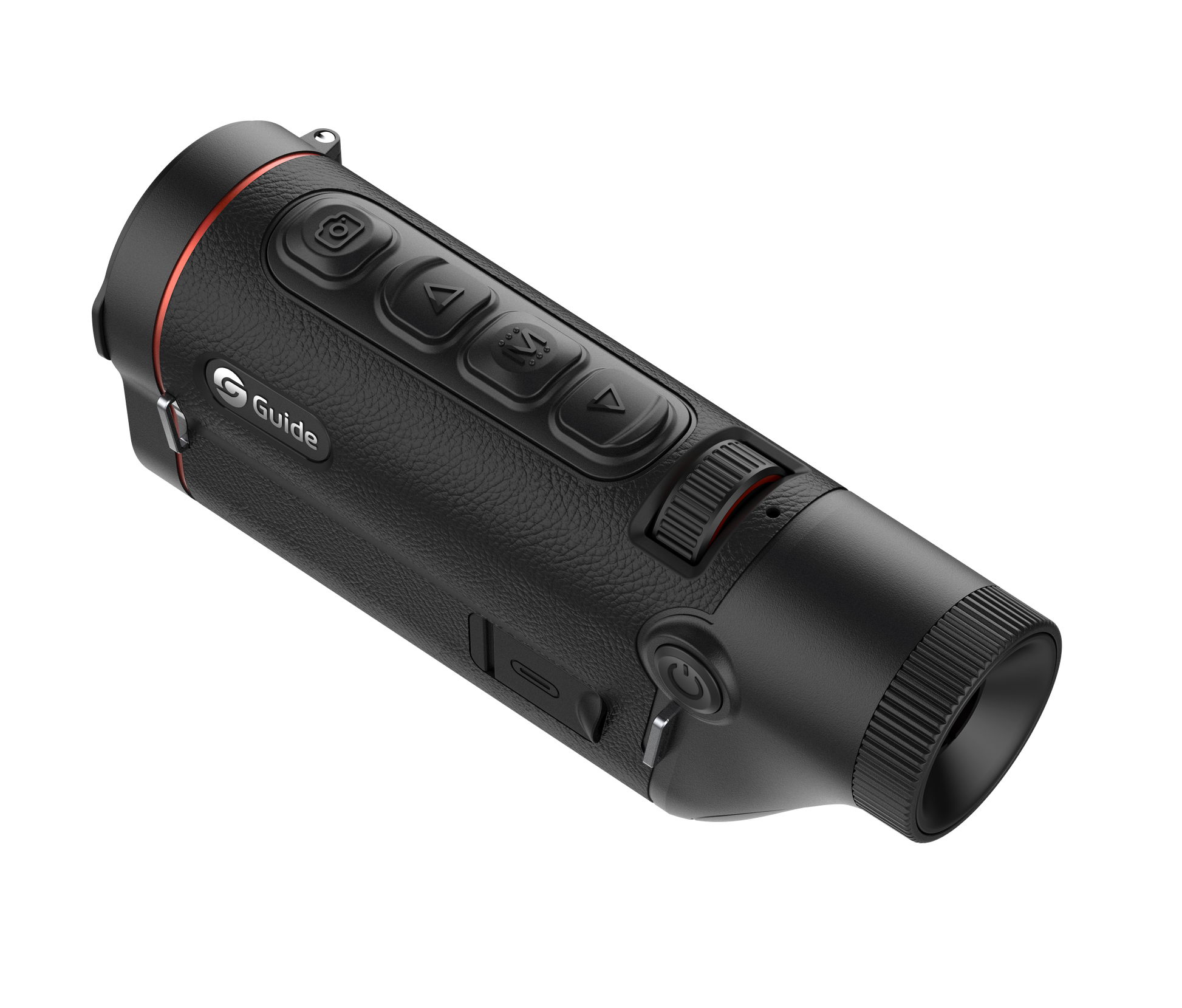

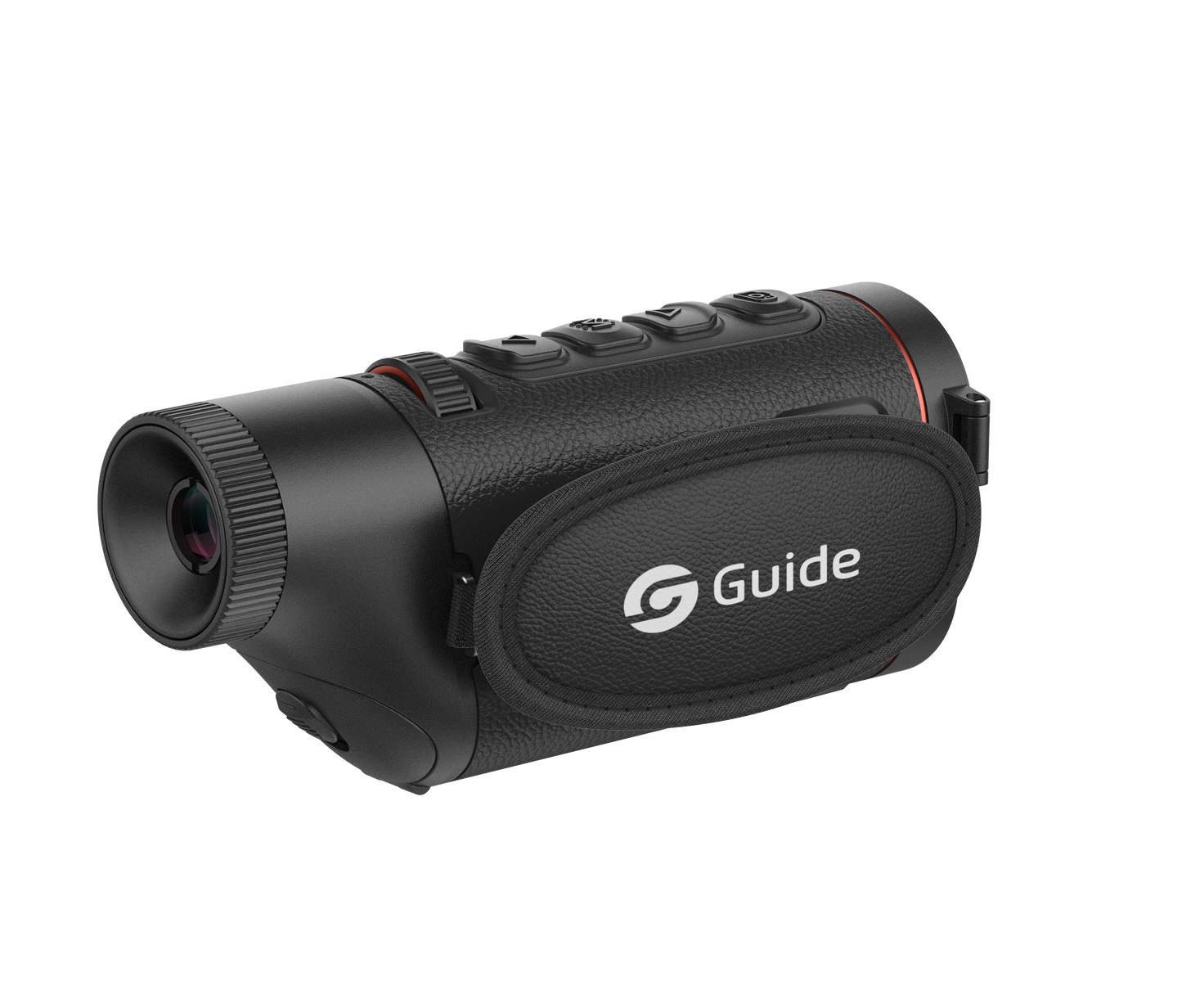

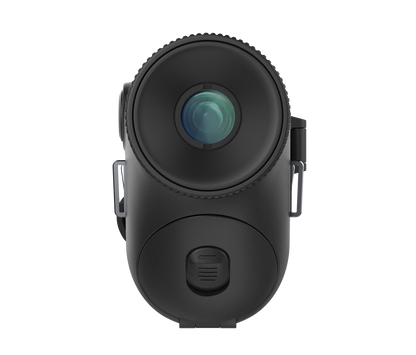

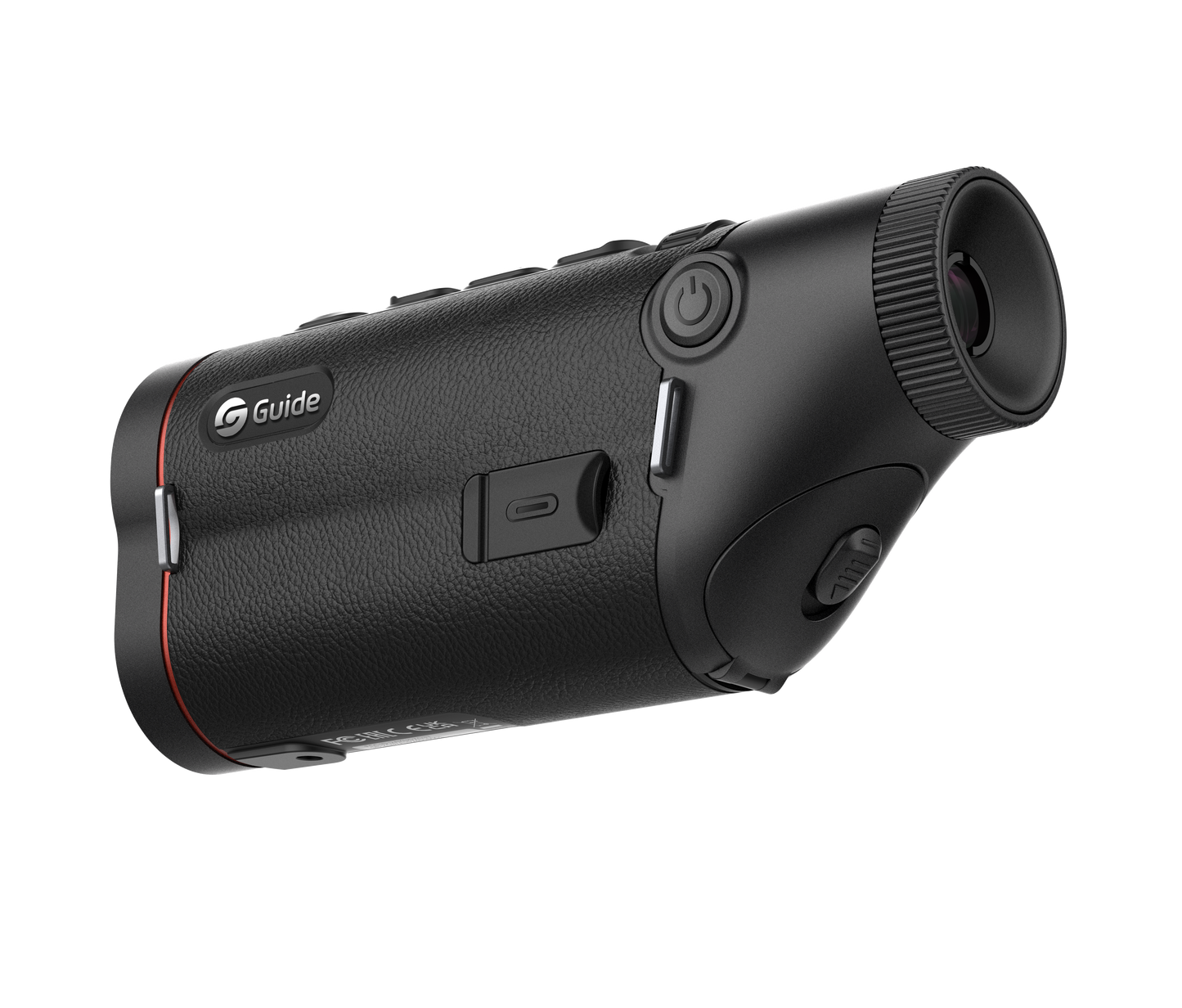

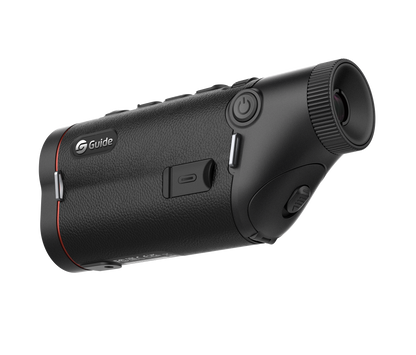

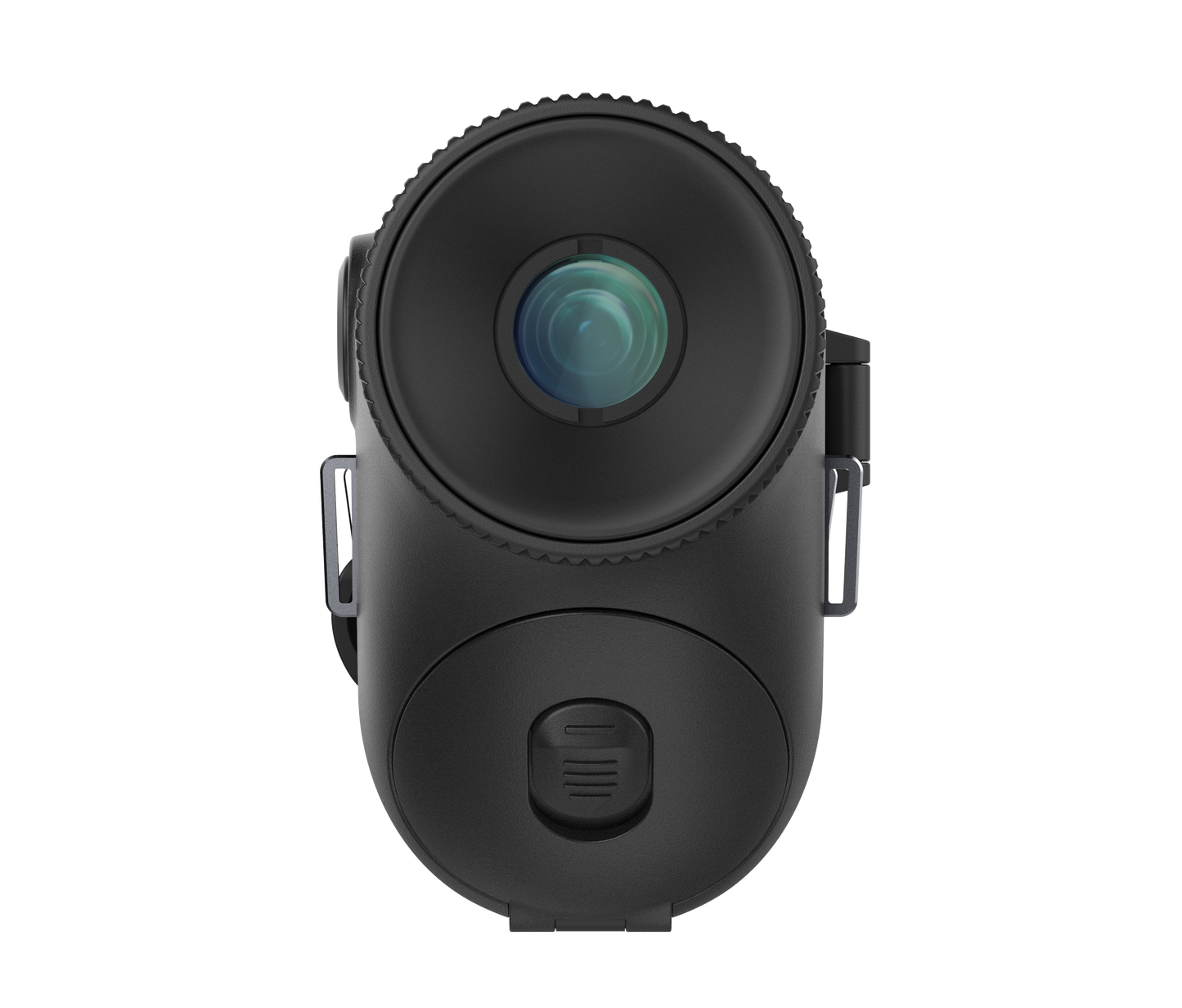

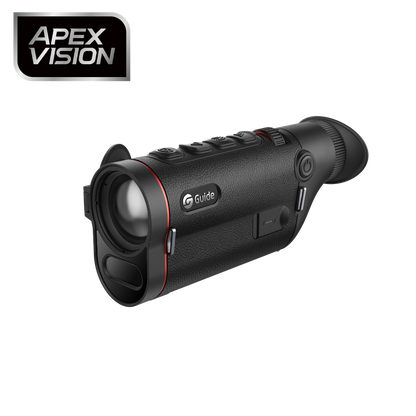

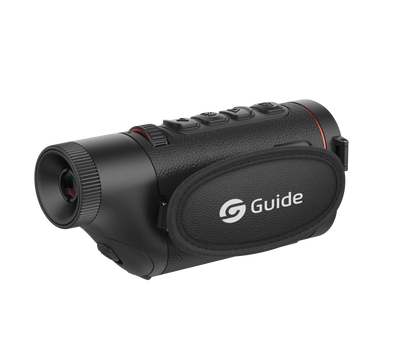

Guide TD635LS Thermal Monocular with LRF
Guide TD635LS Thermal Monocular with LRF
The Guide TD635LS Thermal Monocular has been upgraded with the latest ApexVision technology from Guide Sensmart. Equipped with a highly sensitive 640 × 512 @12μm thermal detector with an impressive NETD of <15mK, it provides clear thermal imagery and enhanced target detection in challenging weather and low-visibility conditions.
Featuring an integrated 1200m laser rangefinder, the TD635LS allows users to accurately measure distances while maintaining a lightweight and ergonomic design. The intuitive focusing roller enables smooth one-handed operation, while the symmetrical housing ensures comfortable use with either hand.
Combining advanced thermal performance, long battery life, laser rangefinding capability, and a compact form factor, the Guide TD635LS LRF is an ideal solution for wildlife observation, pest control, search and rescue, security applications, and general outdoor exploration.
SKU: TIGUI607

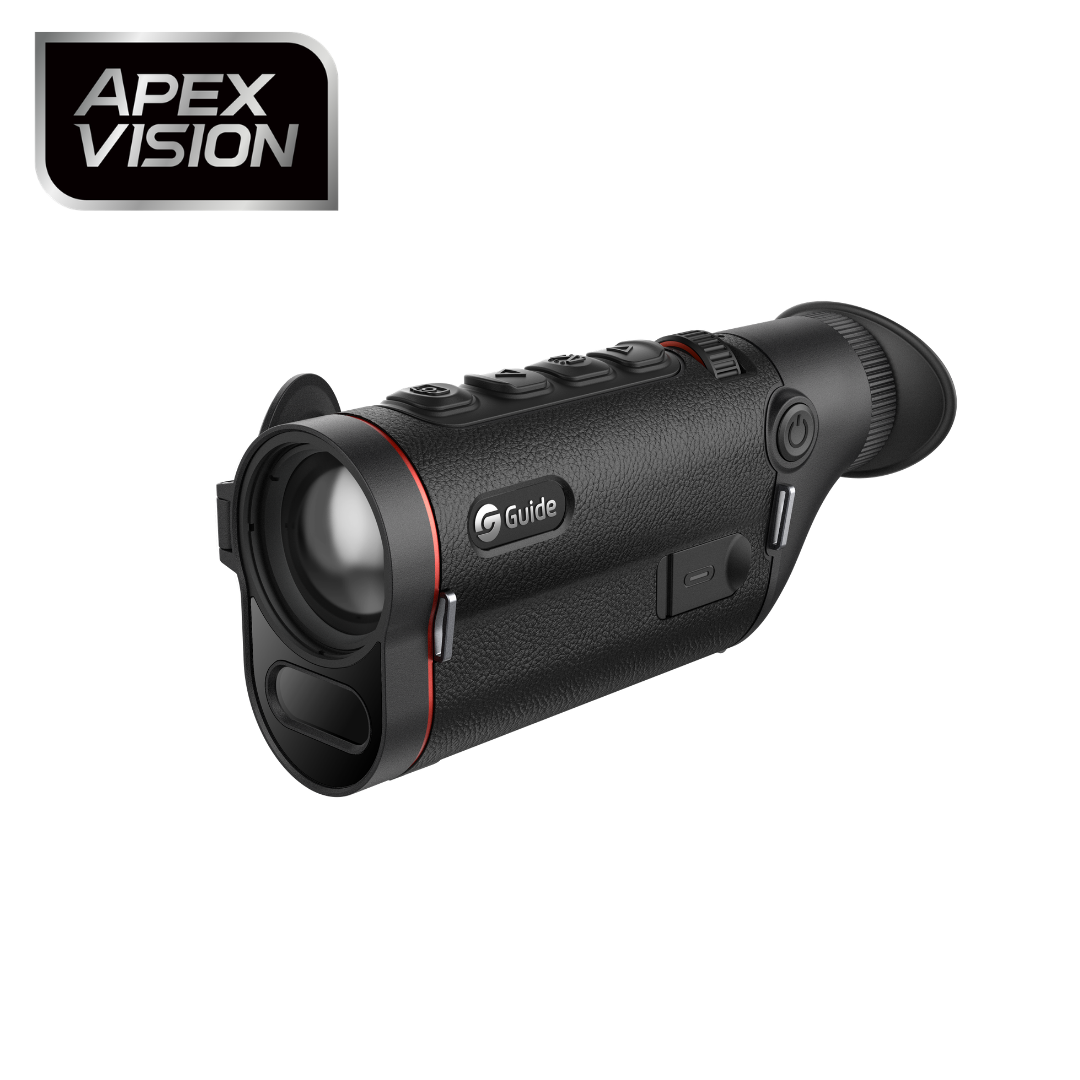

Complete ApexVision S1 System Architecture
Guide Sensmart's next-generation thermal imaging solution that redefines the infrared core of outdoor optics from the ground up. Engineered for any condition, ApexVision delivers ultra-clear visuals with smooth, ghost-free motion, high-fidelity imaging, and razor-sharp detail at long range.
Powerful 12μm Detector for Sharper Images
The TD Gen3 LRF Series features a 12μm infrared detector, available in 640×512 and 400×300 resolutions, paired with a 35mm lens to deliver crisp, detailed images even in complete darkness.

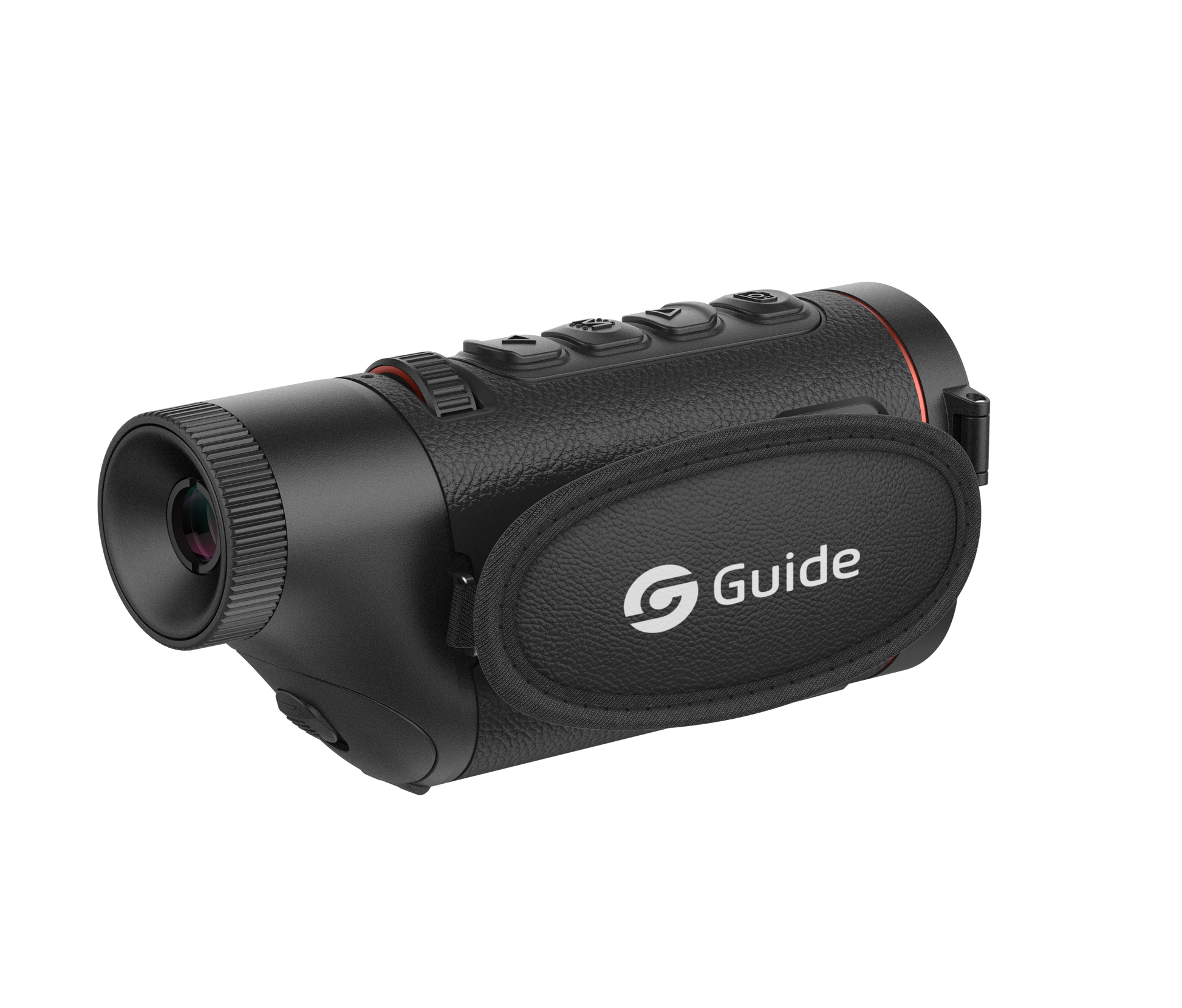

Ambidextrous Design, Effortless One-Handed Operation
Designed for ambidextrous use, the symmetrical housing ensures equal comfort for left- and right-handed users. The ergonomic control layout enables smooth, one-handed operation

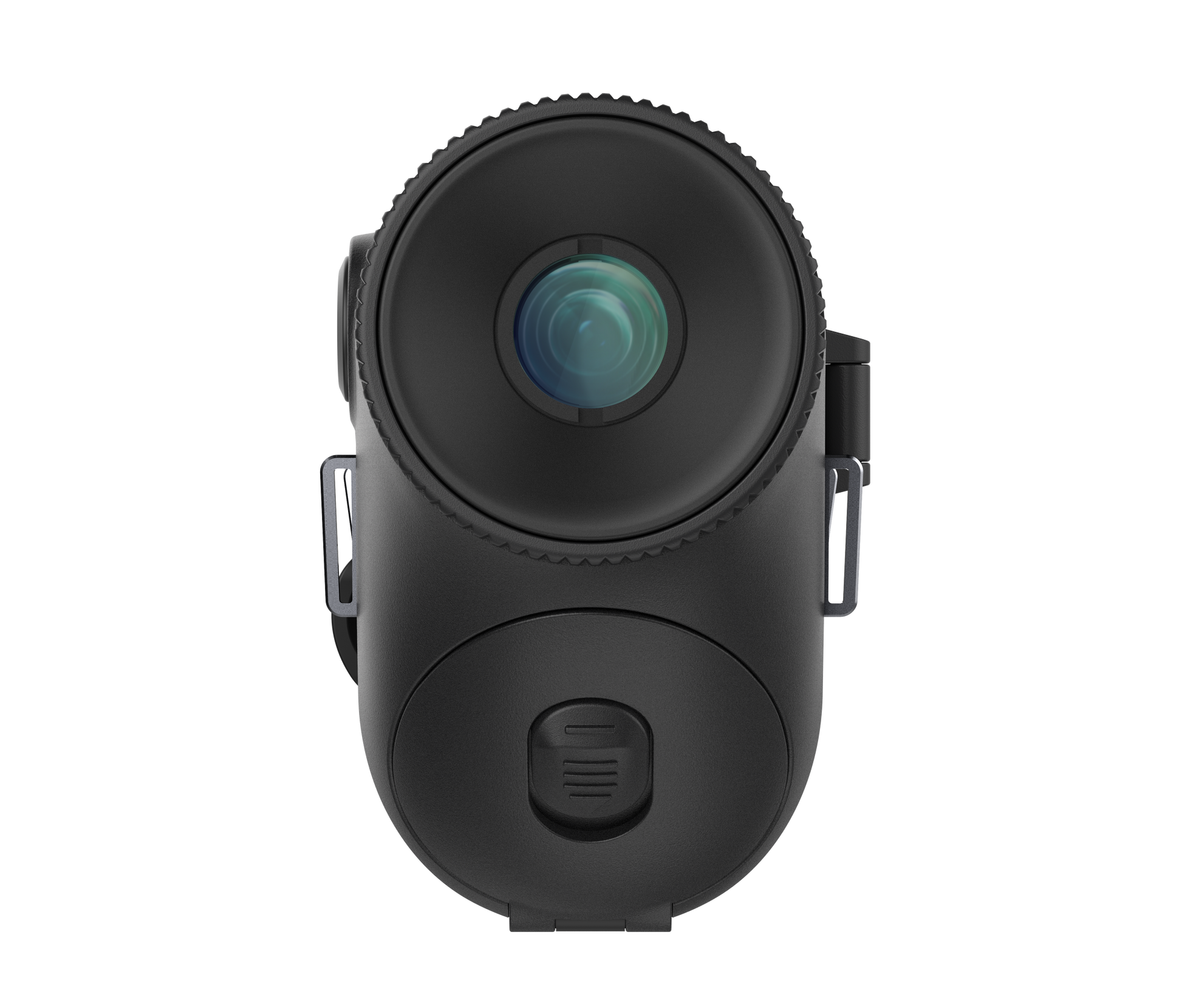

Fine Focus Control, Fingertip Precision
The mini focusing roller allows for fast, precise adjustments with a simple one finger scroll.
Large AMOLED Display for Upgraded Visuals
Building on the previous generation, the TD Gen3 LRF Series features a 0.49" AMOLED display with 1280×960 resolution, delivering sharper detail and a more comfortable viewing experience.
Built-in LRF For Precise Target Identification
Seamlessly integrated into the design, the built-in laser rangefinder enhances both portability and functionality, offering precise distance measurement up to 1200 metres.
Specifications
| Product Name | Guide TD635LS Thermal Monocular with LRF |
|---|---|
| Laser Rangefinder | 1200m |
| Type-C Power Supply | USB-C (Power supply/USB2.0) |
| Battery Operating Time | 10 Hours |
| Battery Type | Single, Replaceable 18650 Battery |
| Audio Recording | Yes |
| Standby Mode | - |
| Hotspot | Yes |
| Capture Snapshot | - |
| Record Video | Yes |
| Working Temperature | -20°C to 50°C |
| Dimension | 171×54×74mm |
| Weight | 374g |
| Protection Level | IP67 |
| Image Pro | N/A |
| HSIS | N/A |
| Zoom Pro | N/A |
| Diopter | -6 to +6 |
| Exit Pupil | - |
| Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Display | 0.49'' AMOLED 1440×1080 |
| Magnification | 2.03x~16.24x |
| Field of View (Degrees/m @ 100m) | 22×17 |
| Detection Range | 1800m |
| NETD | 15mK |
| Response Waveband | 8 to 14μm |
| Pixel Interval | 12μm |
| Frame Rate | 50Hz |
| Sensor Resolution | 640×512 |
| Lens (Focal Length) | 35mm |
