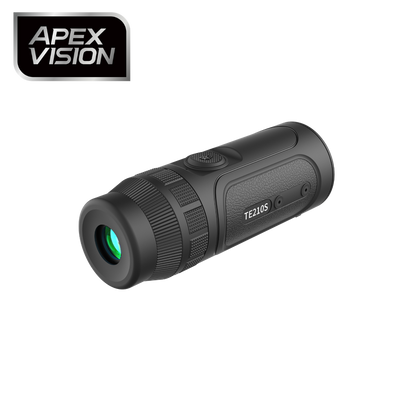

Guide TE210S Thermal Monocular
Guide TE210S Thermal Monocular
The Guide TE210S Thermal Imaging Monocular is a compact, ultra-lightweight night vision device, perfect for adventurers and professionals alike. Weighing just 228g, it’s designed for effortless portability without compromising on performance.
Powered by the advanced APEXVISION image processing system and a high sensitvity 256×192@12μm infrared detector, it delivers clear thermal imaging even in challenging conditions. With a quick 10-minute charge providing up to an hour of continuous use, you’ll be ready for any outdoor exploration.
Whether you’re navigating the wilderness or conducting night-time inspections, the TE210S offers unbeatable value, combining reliability, precision, and ease of use.

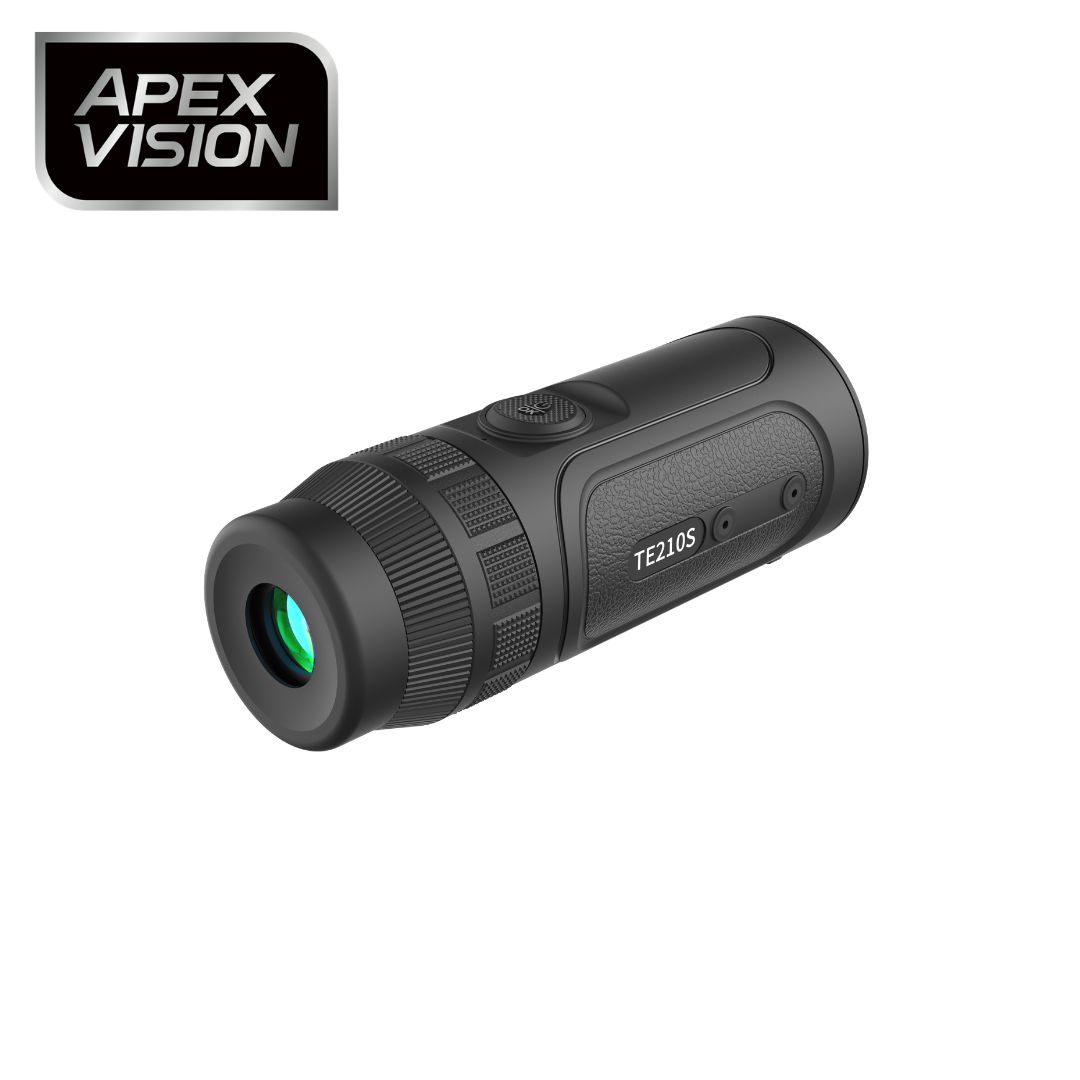

Complete ApexVision S1 System Architecture
Guide Sensmart’s next-generation thermal imaging solution that redefines the infrared core of outdoor optics from the ground up. Engineered for any condition, ApexVision delivers ultra-clear visuals with smooth, ghost-free motion, high-fidelity imaging, and razor-sharp detail at long range.

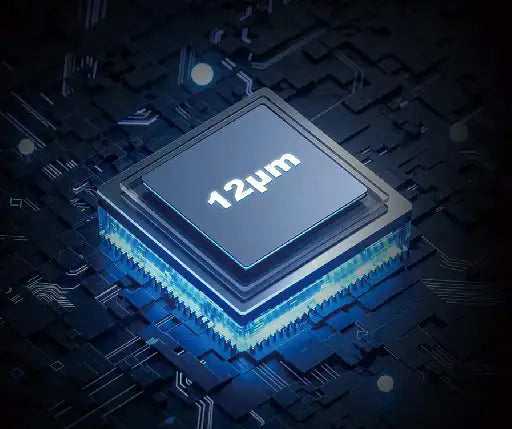

Powerful 12μm Detector for Sharper Images
Designed for crisp, detailed imaging, the TE Series features a powerful 12μm detector and a choice of resolutions and lenses to suit a wide range of scenarios and activities.

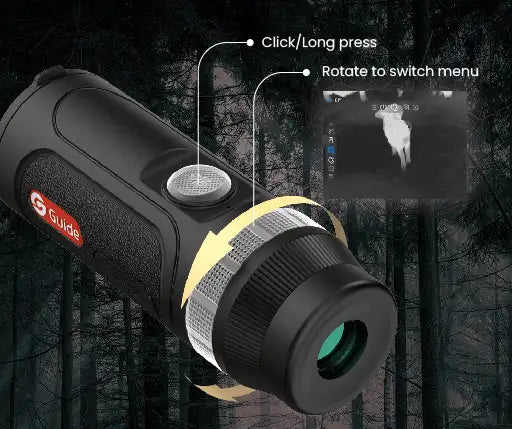

One Button Control for Smooth Operation
Built on years of outdoor experience, the TE Series features a streamlined control layout for simple operation. With a one-button and one-ring design, accessing menus and functions is quick and intuitive.
Ultra Lightweight & Portable
Weighing just over 200 grams, the TE Series features a compact, pocket-sized design. Small like a smartphone and thinner than a wristwatch, it offers a comfortable grip and exceptional portability.
Comfortable Viewing with Clear, Smooth Visuals
A 0.32-inch AMOLED display delivers rich colours and sharp, fluid imagery. Paired with a comfortable eyepiece and 25mm eye relief, it reduces eye strain for extended viewing in the field.
Extended Battery with 20W Quick Charge
The TE Series features a built-in rechargeable battery delivering up to 6 hours of runtime. With 20W fast charging, just 10 minutes of charge provides up to 1 hour of use, keeping you powered when it matters most.
Specifications
| Product Name | Guide TE210S Thermal Monocular |
|---|---|
| Laser Rangefinder | N/A |
| Type-C Power Supply | USB‑C (Charging/Power supply/USB2.0) |
| Battery Operating Time | 6 Hours |
| Battery Type | Built-in Battery |
| Audio Recording | Yes |
| Standby Mode | - |
| Hotspot | - |
| Capture Snapshot | - |
| Record Video | Yes |
| Working Temperature | -20°C to 50°C |
| Dimension | 47×47×132mm |
| Weight | 228g |
| Protection Level | IP67 |
| Image Pro | N/A |
| HSIS | N/A |
| Zoom Pro | N/A |
| Diopter | -5 to +5 |
| Exit Pupil | - |
| Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Display | 0.32" AMOLED 800×600 |
| Magnification | 1.2×–4.8× |
| Field of View (Degrees/m @ 100m) | 17.5° × 13.1°/31x23 |
| Detection Range | 500m |
| NETD | 15mK |
| Response Waveband | 8 to 14μm |
| Pixel Interval | 12μm |
| Frame Rate | 50Hz |
| Sensor Resolution | 256×192 |
| Lens (Focal Length) | 10mm |
