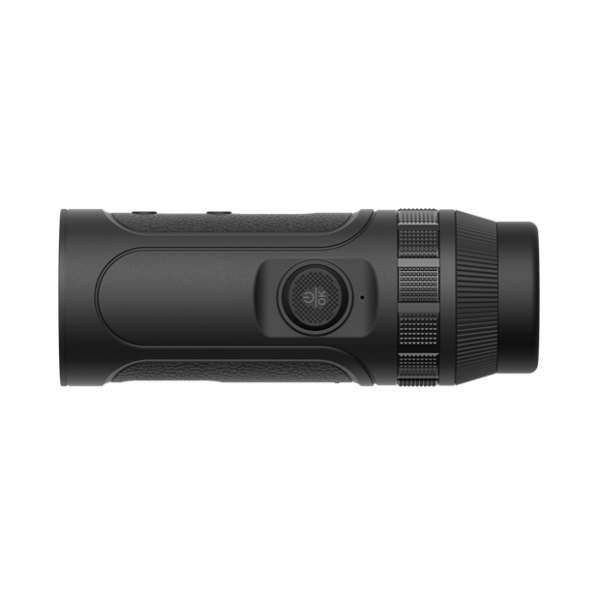

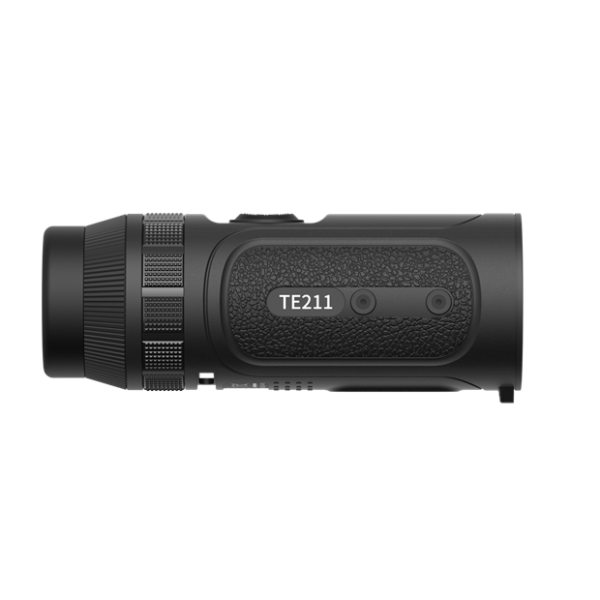

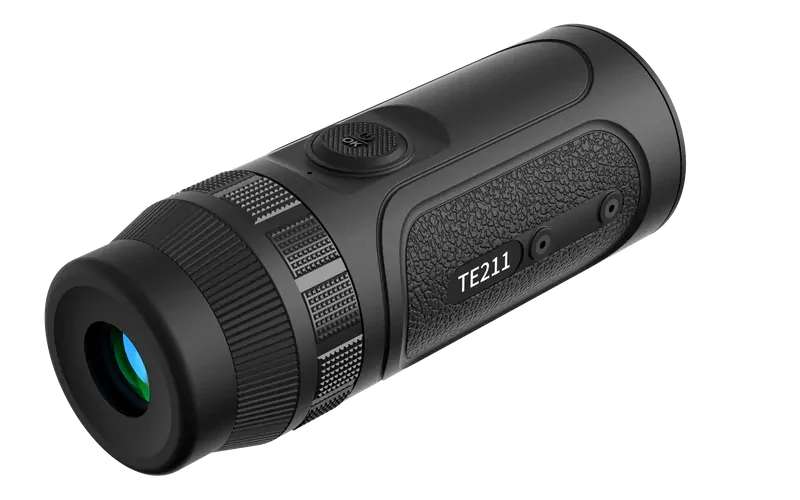

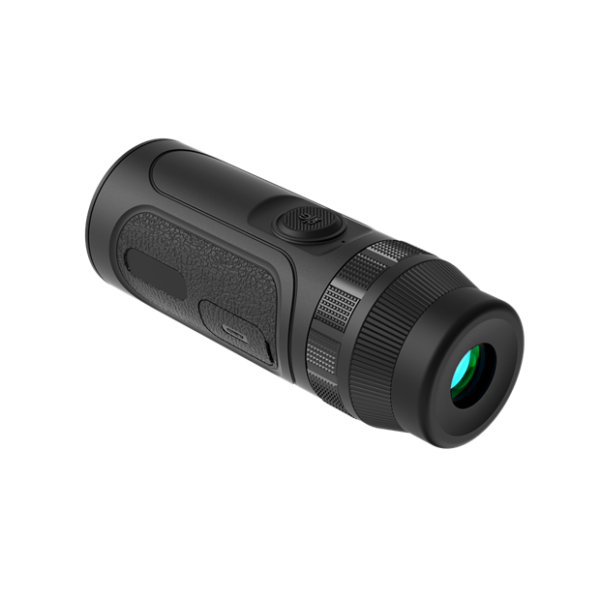

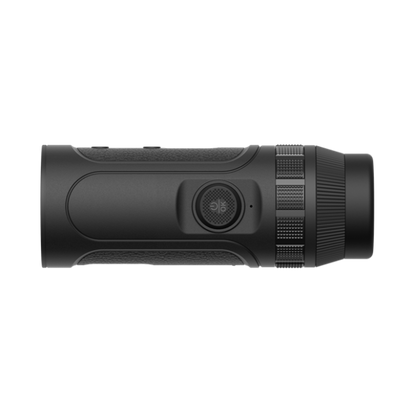

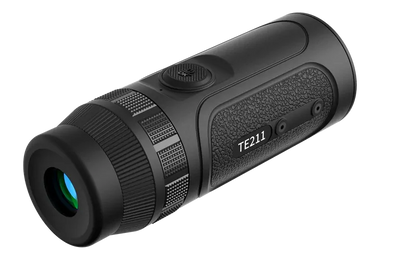

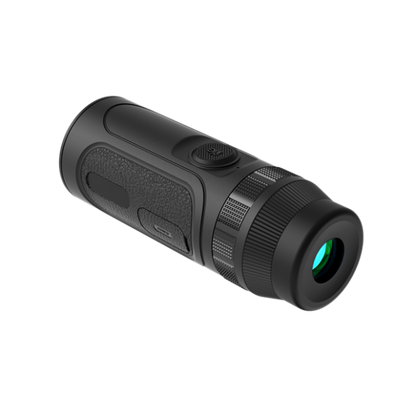

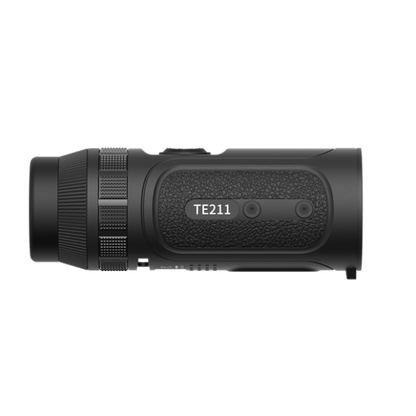

Guide TE211 Thermal Monocular
Guide TE211 Thermal Monocular
The TE211 Handheld Thermal Imaging Monocular is a compact, ultra-lightweight night vision device, perfect for adventurers and professionals alike. Weighing just 228g, it’s designed for effortless portability without compromising on performance.
Powered by a high-sensitivity 256×192@12μm, NETD <30mK infrared detector, it delivers clear thermal imaging even in challenging conditions. With up to 6 hours of continuous battery life, plus a quick 10-minute charge that delivers up to an hour of use, you'll be ready for every outdoor adventure.
Whether you’re navigating the wilderness or conducting night-time inspections, the TE211 offers unbeatable value, combining reliability, precision, and ease of use.
Powerful 12μm Detector for Sharper Images
Designed for crisp, detailed imaging, the TE Series features a powerful 12μm detector and a choice of resolutions and lenses to suit a wide range of scenarios and activities.
Ultra Lightweight & Portable
Weighing between 200-300g, the TE Series features a compact, pocket-sized design. Small like a smartphone and thinner than a wristwatch, it offers a comfortable grip and exceptional portability.
One Button Control for Smooth Operation
Built on years of outdoor experience, the TE Series features a streamlined control layout for simple operation. With a one-button and one-ring design, accessing menus and functions is quick and intuitive.
Extended Battery with 20W Quick Charge
The TE Series features a built-in rechargeable battery delivering up to 6 hours of runtime. With 20W fast charging, just 10 minutes of charge provides up to 1 hour of use, keeping you powered when it matters most.
Comfortable Viewing with Clear, Smooth Visuals
A 0.32-inch AMOLED display delivers rich colours and sharp, fluid imagery. Paired with a comfortable eyepiece and 25mm eye relief, it reduces eye strain for extended viewing in the field.
Specifications
| Product Name | Guide TE211 Thermal Monocular |
|---|---|
| Laser Rangefinder | N/A |
| Type-C Power Supply | 5V DC 2A via USB-C (20W Quick Charge) |
| Battery Operating Time | 6 hours continuous (20W Quick Charging) |
| Battery Type | Built-in Rechargeable Li-ion Battery |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Hotspot | 2.4 GHz / 5 GHz Wi-Fi |
| Capture Snapshot | Yes |
| Record Video | Yes |
| Working Temperature | From -20°C to 50°C |
| Dimension | 47 x 47 x 132mm |
| Weight | 228g |
| Protection Level | IP67 |
| Image Pro | N/A |
| HSIS | N/A |
| Zoom Pro | N/A |
| Diopter | -5D to +5D |
| Exit Pupil | - |
| Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Display | 0.32 inch 800x600 AMOLED |
| Magnification | 1.2x - 4.8x |
| Field of View (Degrees/m @ 100m) | 17.5 x 13.1 deg |
| Detection Range | 500m |
| NETD | Less than 30mK |
| Response Waveband | 8μm to 14μm |
| Pixel Interval | 12μm |
| Frame Rate | 50Hz |
| Sensor Resolution | 256x192 |
| Lens (Focal Length) | 10mm F1.0 |
