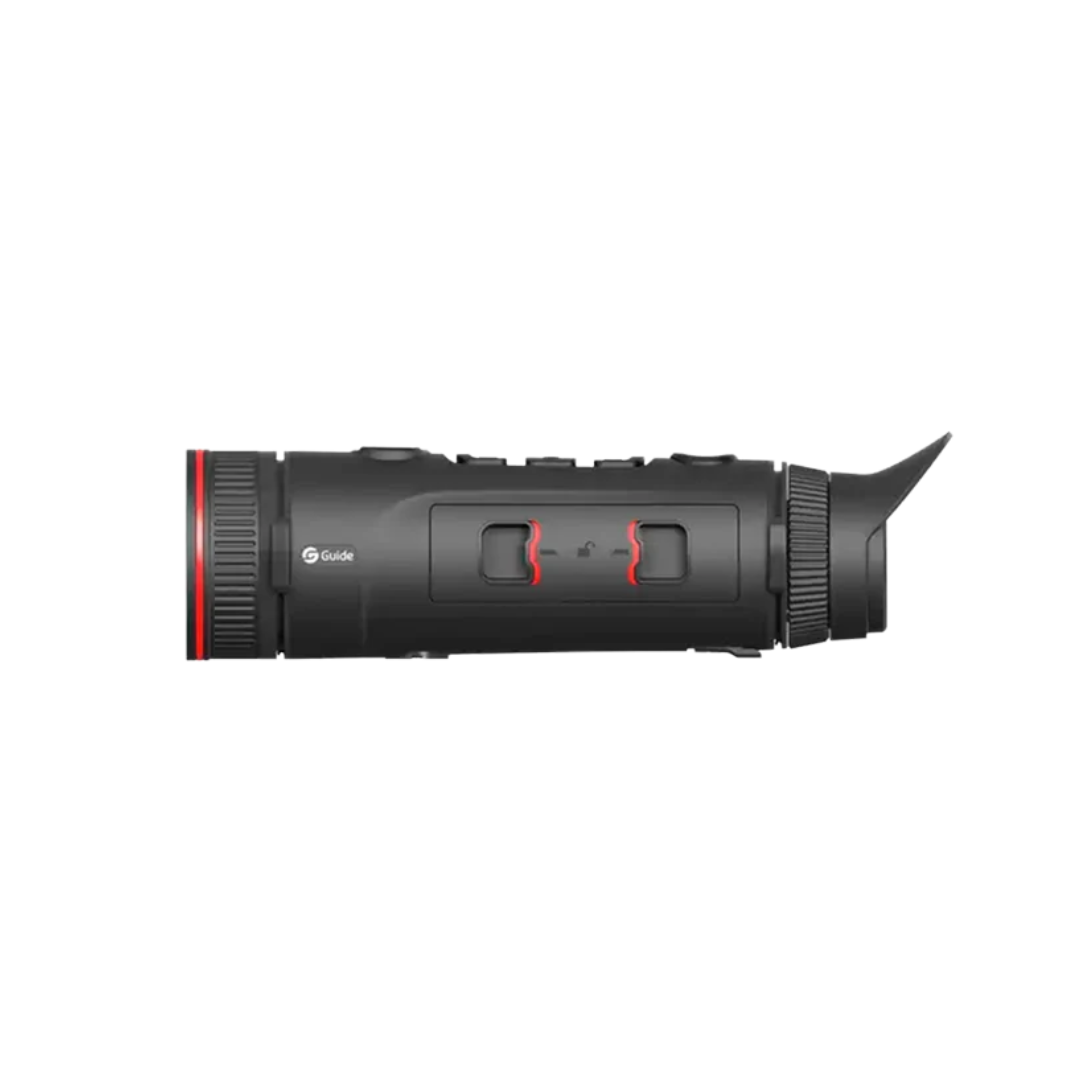

Guide TJ420 Thermal Monocular
Guide TJ420 Thermal Monocular
The Guide TJ420 Thermal Monocular combines a 400×300 thermal sensor and 25mm lens with a Full HD 1920×1080 AMOLED display for clear, comfortable viewing after dark.
With up to 12 hours of battery life, photo and video recording with audio, and IP67 protection, it’s a practical handheld option for wildlife observation and checking your property.
SKU: TIGUI060
12μm High Sensitivity Infrared Detector
By utilizing a highly sensitive lR detector with a NETD down to 20mK, even the slightest temperature differences can be distinguished, resulting in sharper and clearer imaging.
Lightweight
The whole device weighs around 500g, which reduces the burden of equipment and is easy to carry and use outdoors. lts compact design and portable size together bring convenience to your nighttime explorations.
Full-HD 1920x1080 AMOLED display
The eyepiece features a 1920x1080 high-definition AMOLED screen, allowing for a visual experience with vibrant colors and excellent image quality. This significantly enhances the comfort of observation.
IP67 Waterproof Rating
Equipped with an IP67 waterproof rating, ensuring it can withstand the most challenging weather conditions. With this robust protection, you can confidently take your thermal imaging monocular on any adventure.
Specifications
| Product Name | Guide TJ420 Thermal Monocular |
|---|---|
| Laser Rangefinder | N/A |
| Type-C Power Supply | USB-C (Power supply/USB 2.0) |
| Battery Operating Time | 12 Hours |
| Battery Type | 2 Replaceable 18650 Batteries |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Hotspot | Yes |
| Capture Snapshot | - |
| Record Video | Yes |
| Working Temperature | -20°C to 50°C / -4°F to +122°F |
| Dimension | 234×66×66mm |
| Weight | 479g |
| Protection Level | IP67 |
| Image Pro | N/A |
| HSIS | N/A |
| Zoom Pro | N/A |
| Diopter | N/A |
| Exit Pupil | N/A |
| Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Display | 0.39'' AMOLED 1920×1080 |
| Magnification | 3.04x~12.16x |
| Field of View (Degrees/m @ 100m) | 11°×8.2°/19×14 |
| Detection Range | 1300m |
| NETD | 25mK |
| Response Waveband | 8 to 14μm |
| Pixel Interval | 12μm |
| Frame Rate | 50Hz |
| Sensor Resolution | 400×300 |
| Lens (Focal Length) | 20mm |
