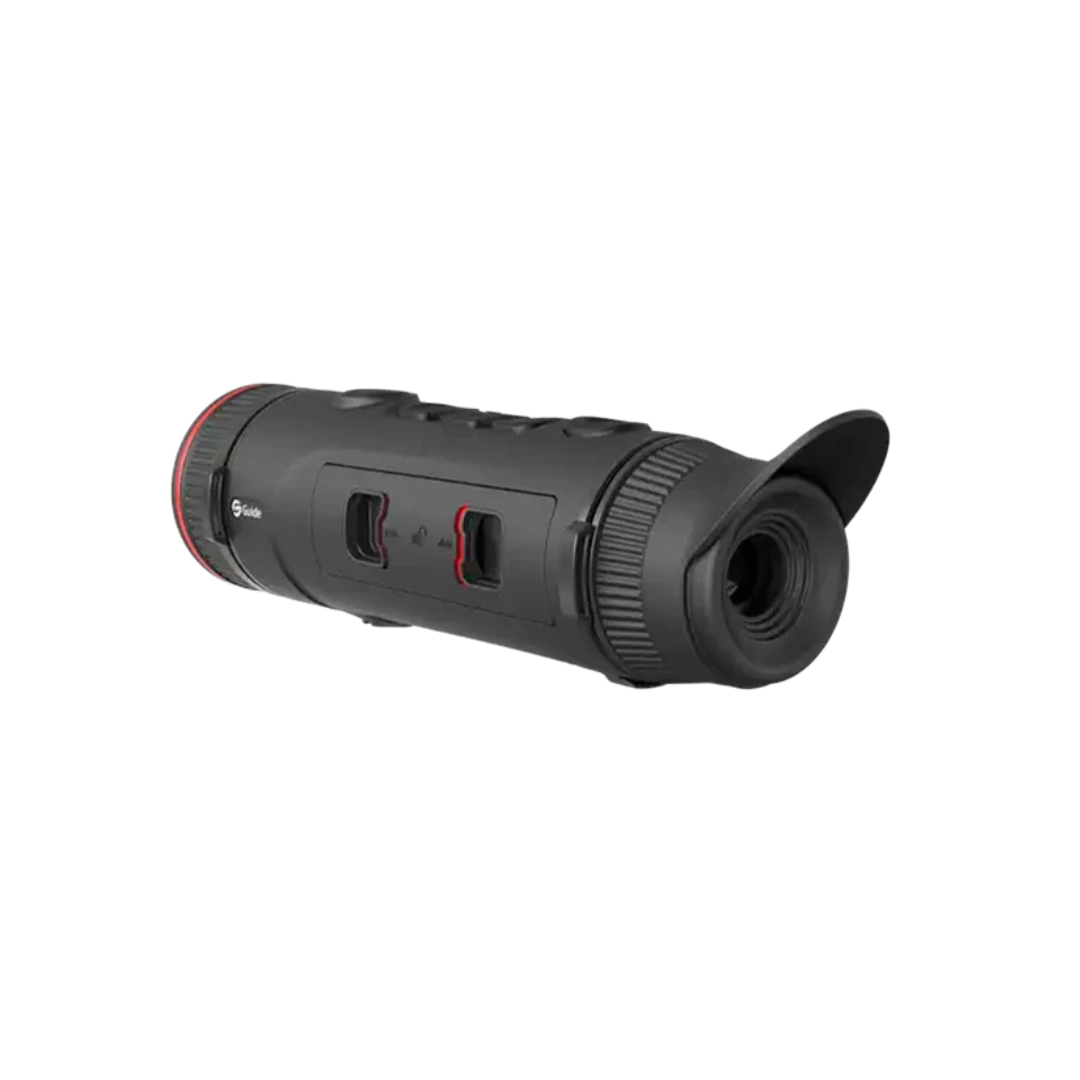

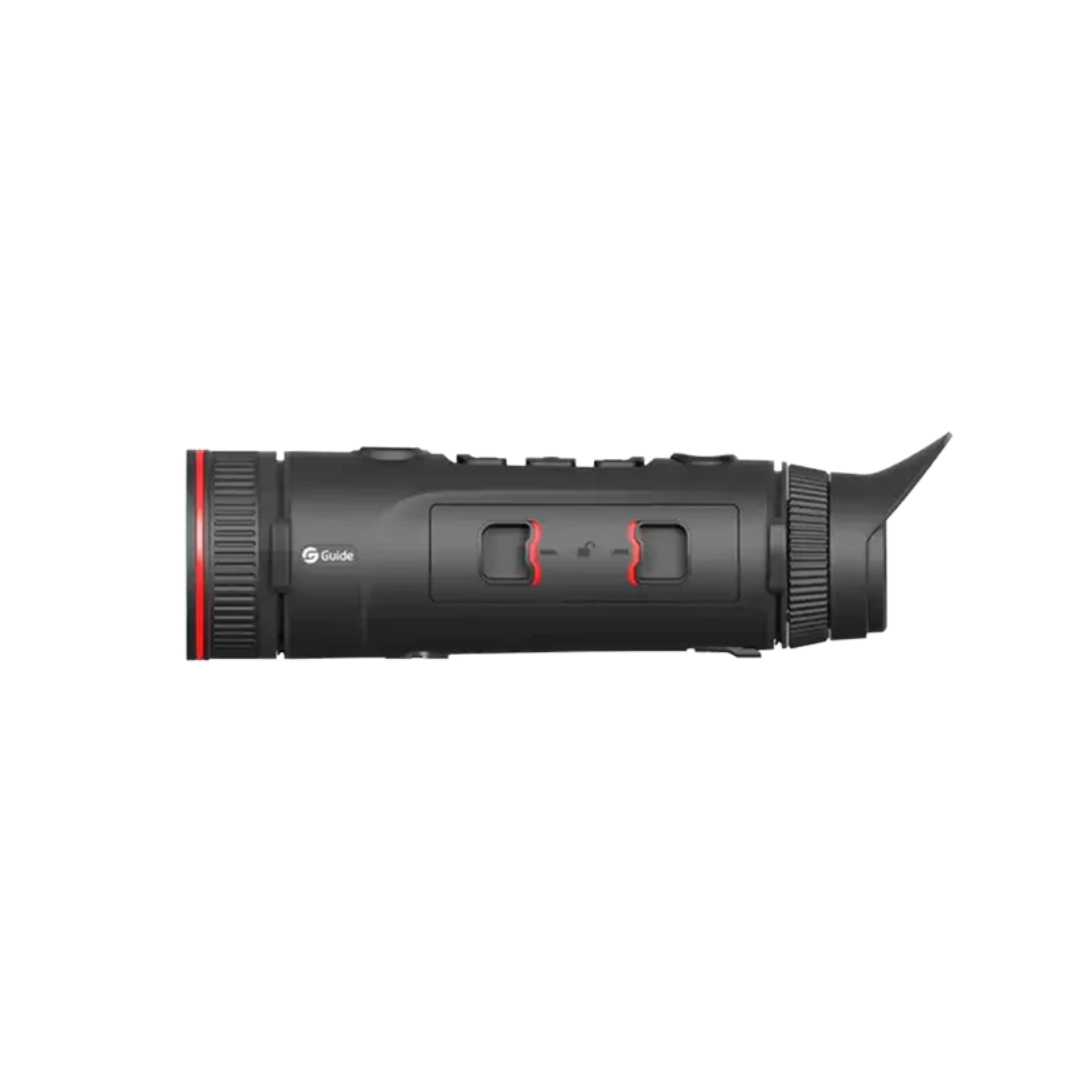

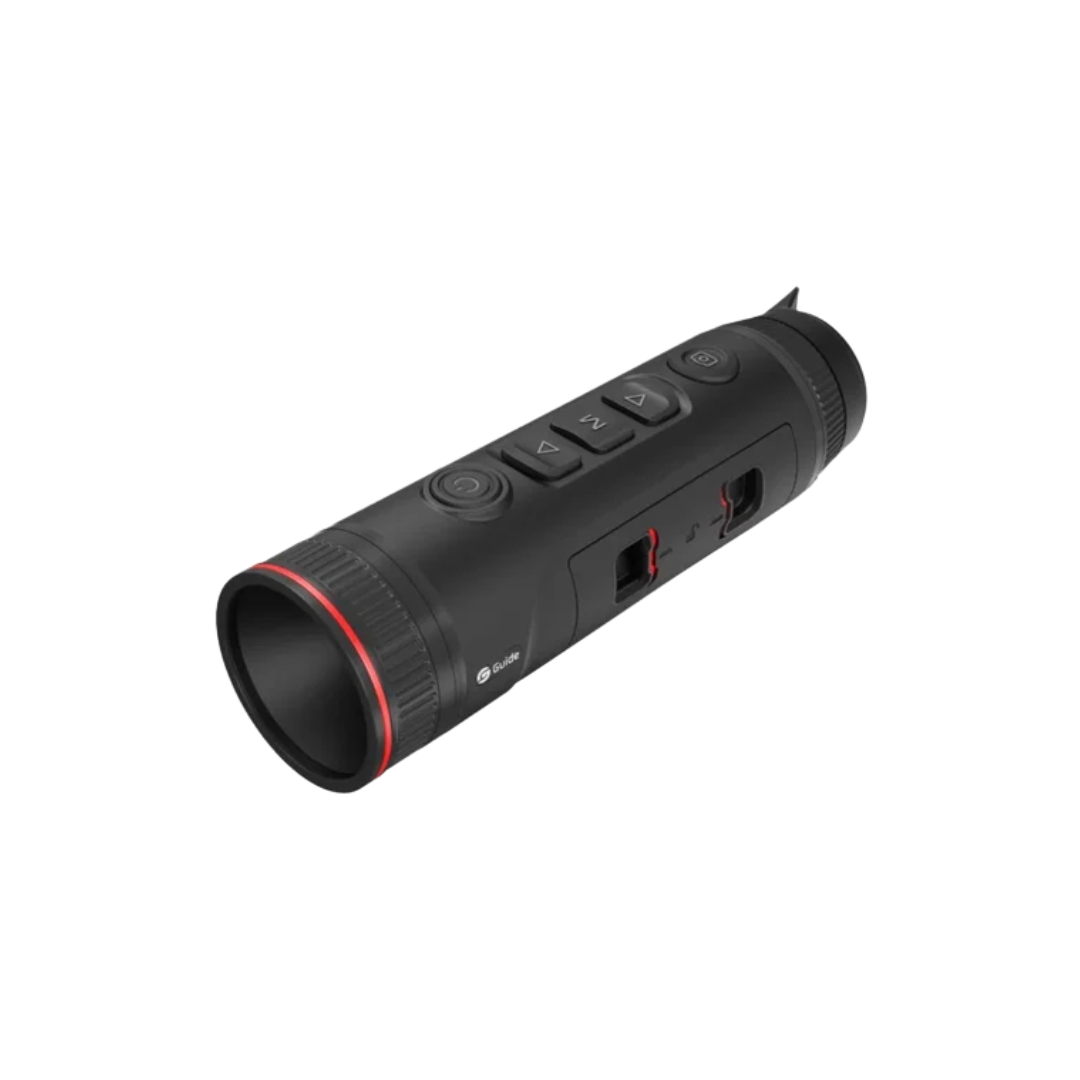

Guide TJ630 Thermal Monocular
Guide TJ630 Thermal Monocular
The Guide TJ630 Thermal Monocular pairs a higher-resolution 640×512 thermal sensor with a 35mm lens and 20mK thermal sensitivity to reveal subtle temperature differences.
A Full HD 1920×1080 AMOLED display, 64GB storage and audio-enabled video recording make it easy to view and capture your observations, while replaceable batteries provide up to 10 hours of operation.
SKU: TIGUI064
12μm High Sensitivity Infrared Detector
By utilizing a highly sensitive lR detector with a NETD down to 20mK, even the slightest temperature differences can be distinguished, resulting in sharper and clearer imaging.
Lightweight
The whole device weighs around 500g, which reduces the burden of equipment and is easy to carry and use outdoors. lts compact design and portable size together bring convenience to your nighttime explorations.
Full-HD 1920x1080 AMOLED display
The eyepiece features a 1920x1080 high-definition AMOLED screen, allowing for a visual experience with vibrant colors and excellent image quality. This significantly enhances the comfort of observation.
IP67 Waterproof Rating
Equipped with an IP67 waterproof rating, ensuring it can withstand the most challenging weather conditions. With this robust protection, you can confidently take your thermal imaging monocular on any adventure.
Specifications
| Product Name | Guide TJ630 Thermal Monocular |
|---|---|
| Laser Rangefinder | N/A |
| Type-C Power Supply | USB-C (Power supply/USB 2.0) |
| Battery Operating Time | 10 Hours |
| Battery Type | 2 Replaceable 18650 Batteries |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Hotspot | Yes |
| Capture Snapshot | - |
| Record Video | Yes |
| Working Temperature | -20°C to 50°C / -4°F to +122°F |
| Dimension | 234×66×66mm |
| Weight | 502g |
| Protection Level | IP67 |
| Image Pro | N/A |
| HSIS | N/A |
| Zoom Pro | N/A |
| Diopter | N/A |
| Exit Pupil | N/A |
| Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Display | 0.39'' AMOLED 1920×1080 |
| Magnification | 2.66x~21.28x |
| Field of View (Degrees/m @ 100m) | 12.5°×10°/22×17 |
| Detection Range | 1800m |
| NETD | 20mK |
| Response Waveband | 8 to 14μm |
| Pixel Interval | 12μm |
| Frame Rate | 50Hz |
| Sensor Resolution | 640×512 |
| Lens (Focal Length) | 35mm |
