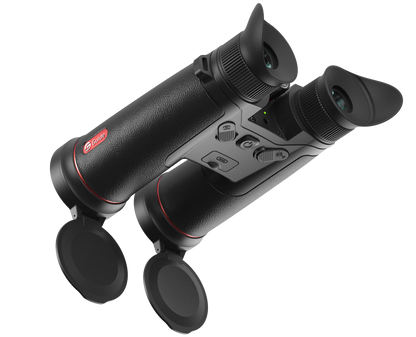

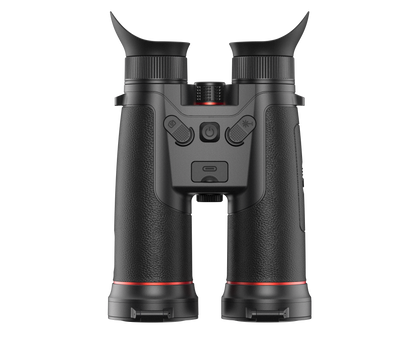

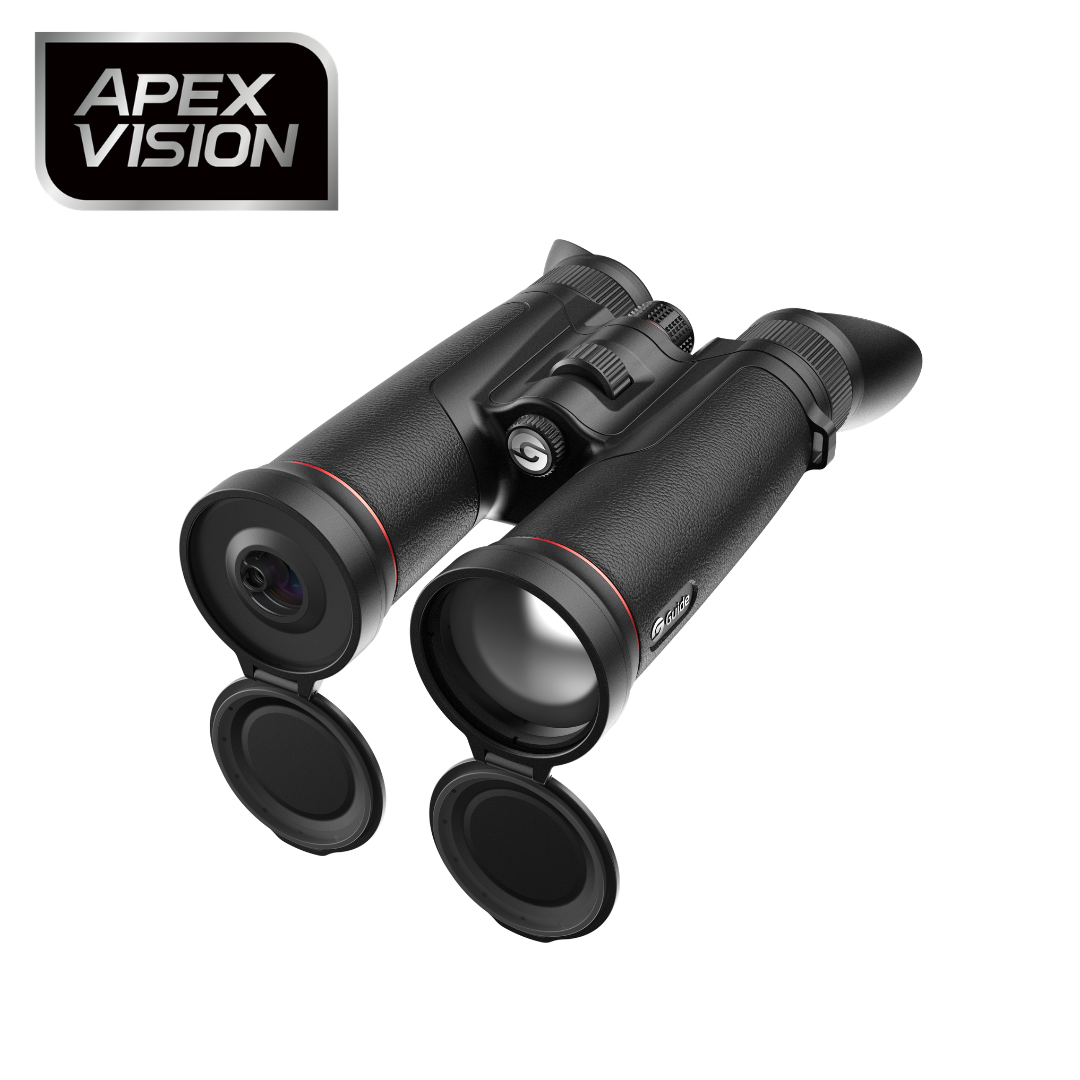

Guide TN450LS 2.0 Thermal Binoculars
Guide TN450LS 2.0 Thermal Binoculars
The Guide TN450LS redefines all-weather optical imaging with innovation and precision. Powered by the Complete ApexVision S1 System Architecture, Guide Sensmart's next-generation thermal imaging solution, it delivers ultra-clear visuals with smooth, ghost-free motion, high-fidelity imaging, and razor-sharp long-range detail in any condition.
Featuring a 400 × 300 @12μm thermal sensor with <15mK NETD sensitivity, the TN450LS combines advanced thermal and visible light imaging technology with intelligent sensor fusion to provide exceptional image quality, reliability, and performance.
Whether for hunting, law enforcement, or professional use, the TN450LS is built to perform when it matters most.
Complete ApexVision S1 System Architecture
Guide Sensmart’s next-generation thermal imaging solution that redefines the infrared core of outdoor optics from the ground up. Engineered for any condition, ApexVision delivers ultra-clear visuals with smooth, ghost-free motion, high-fidelity imaging, and razor-sharp detail at long range.

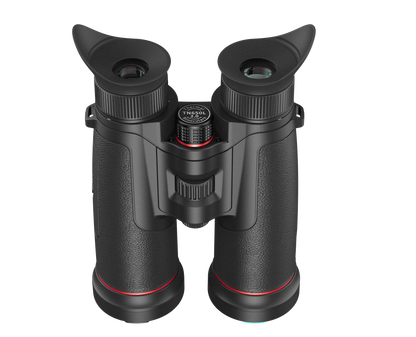

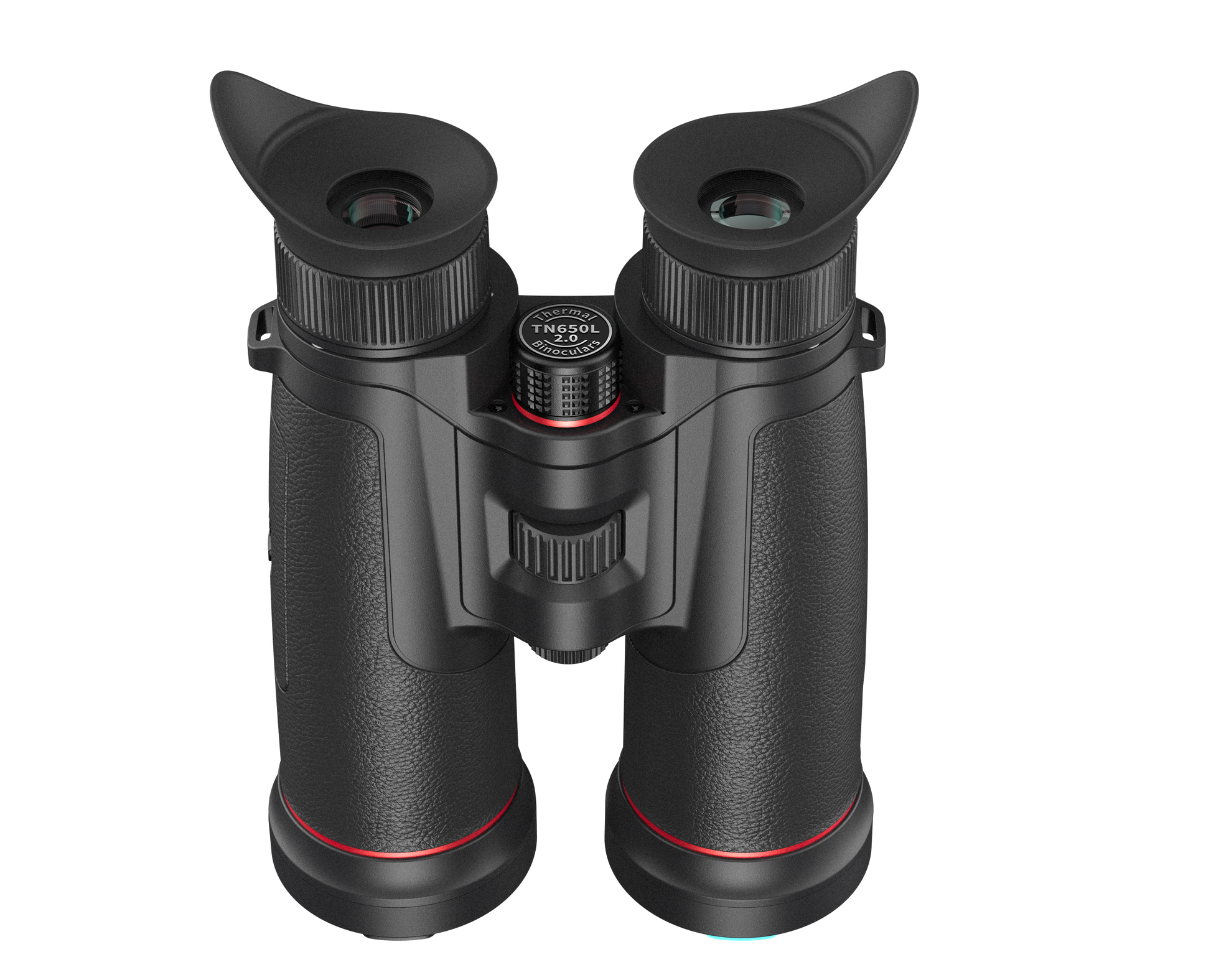

Slim, Lightweight Design
The TN 2.0 Series features a refined, slim housing inspired by classic binocular design, offering a more comfortable grip and improved handling in the field. Now 20% lighter than the previous generation, it delivers better balance and portability for extended use without fatigue.

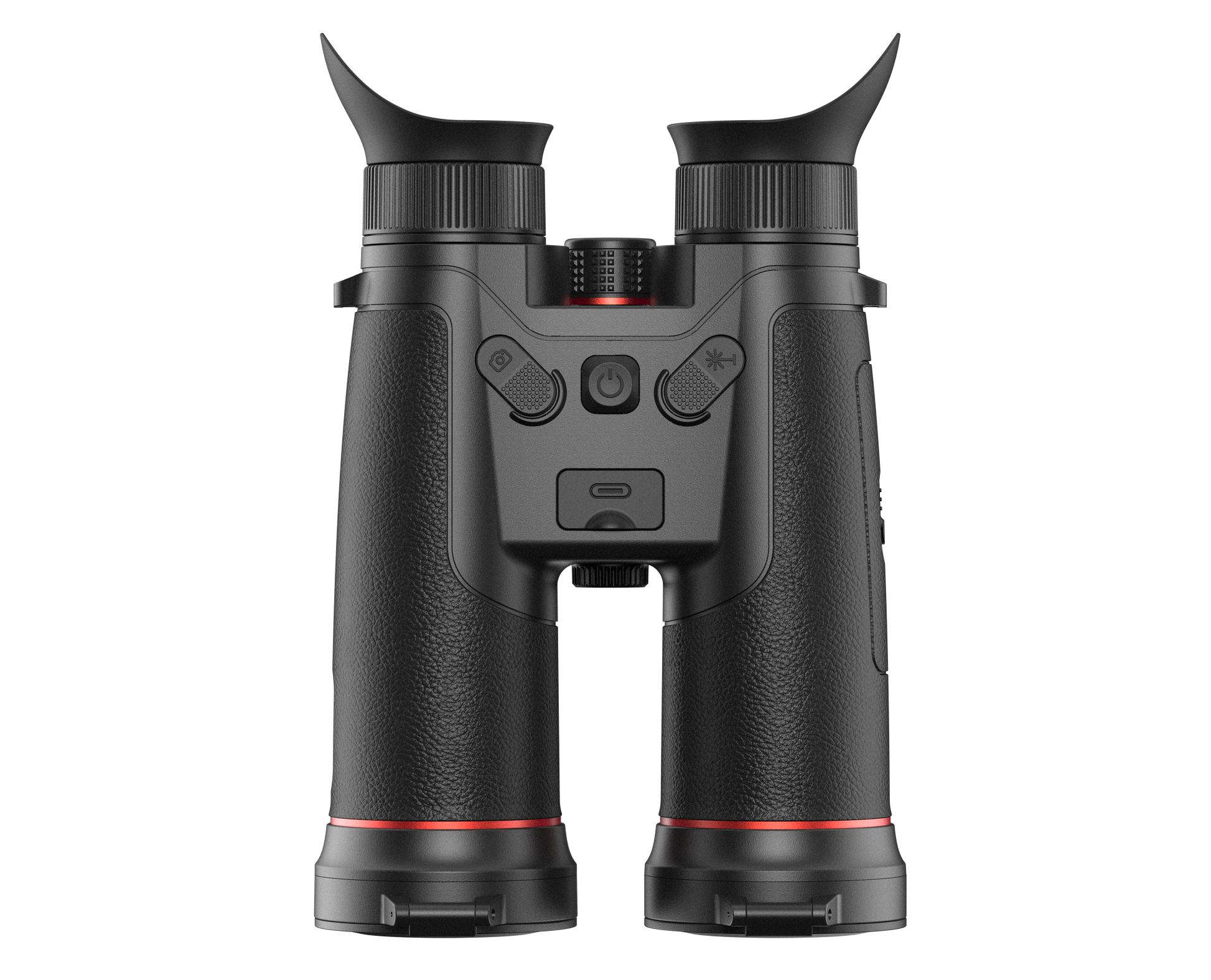

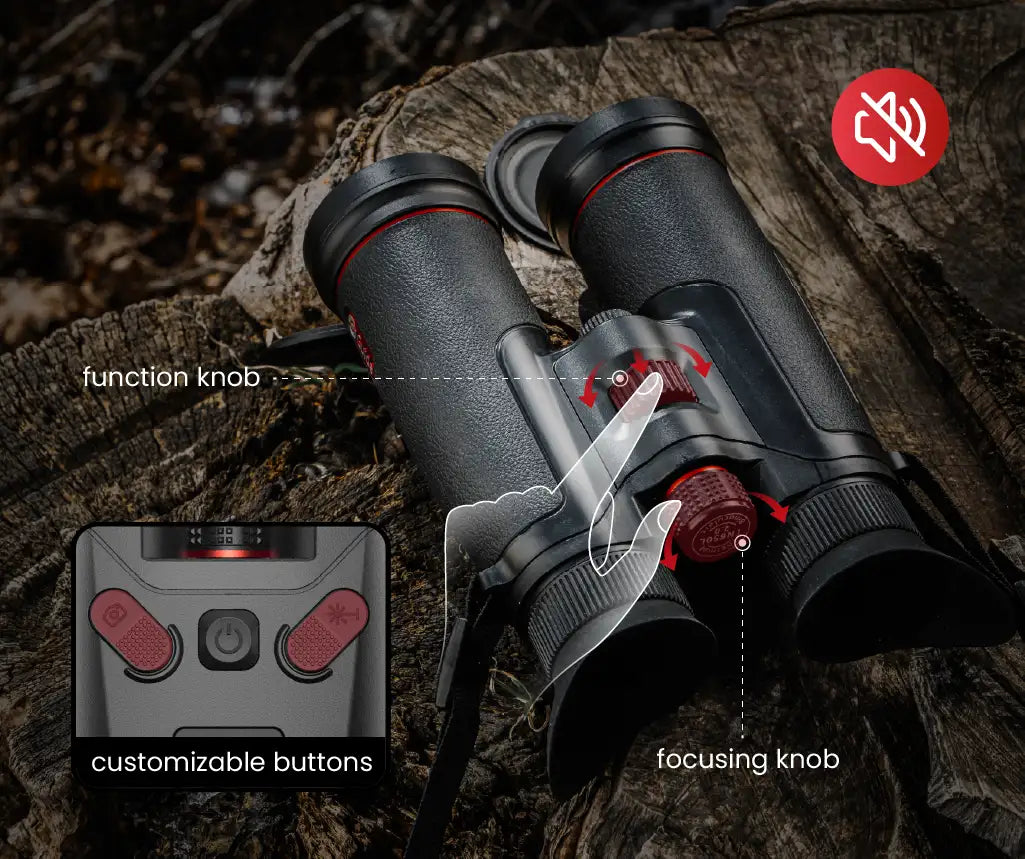

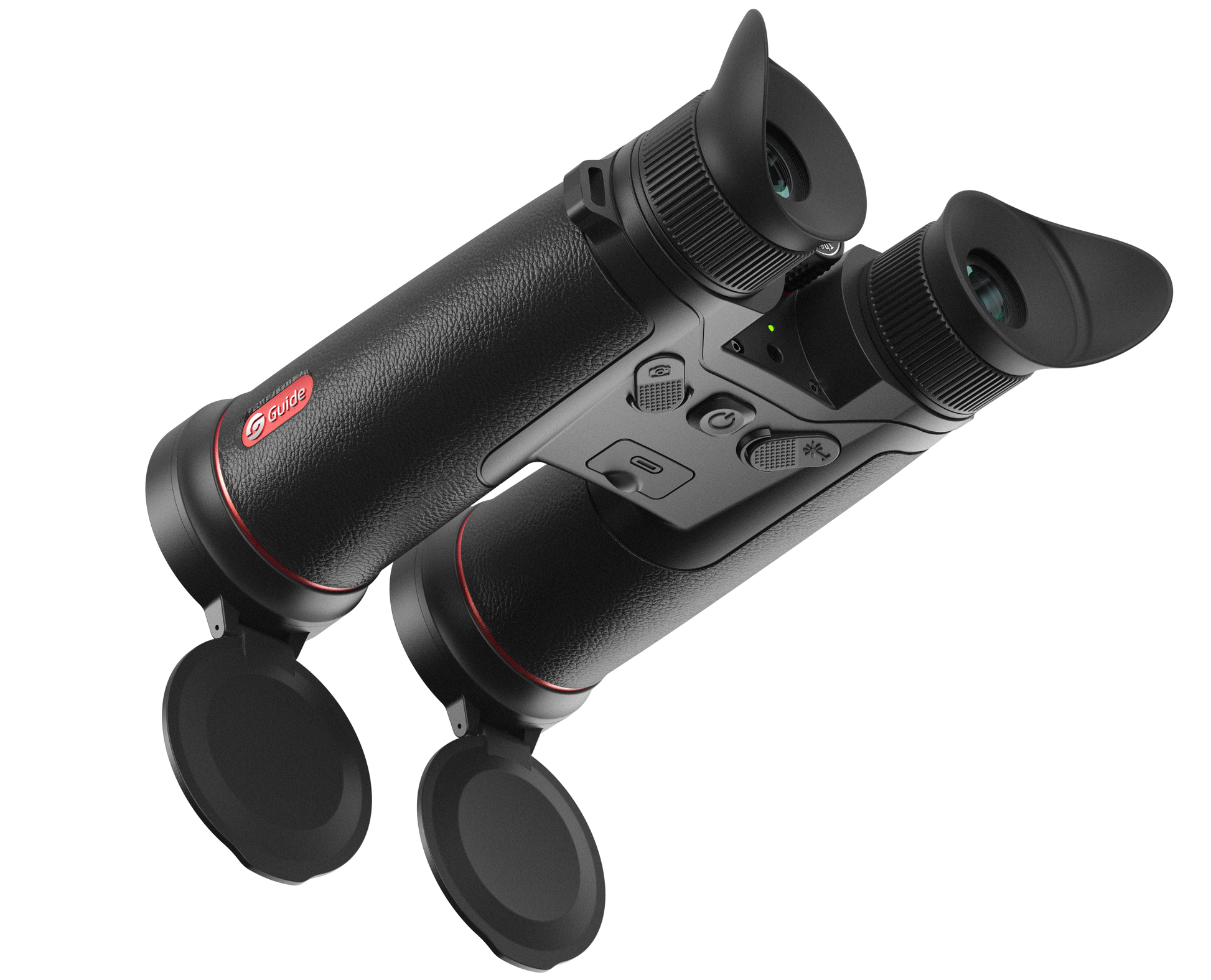

One-Handed Control, Silent Operation
The TN 2.0 Series features a streamlined, quiet control layout with multi-function rotary knobs and customisable buttons, making operation simple and intuitive. Paired with an updated user interface, you can easily scroll to select and click to confirm, all with one hand.
Flexible Charging, Extended Runtime
The TN 2.0 Series features a dual battery system for maximum flexibility in the field. The built-in battery supports 18W fast charging, reaching 80% in just one hour, while the replaceable 18650 battery allows for hot swapping during operation, ensuring uninterrupted use when it matters most.

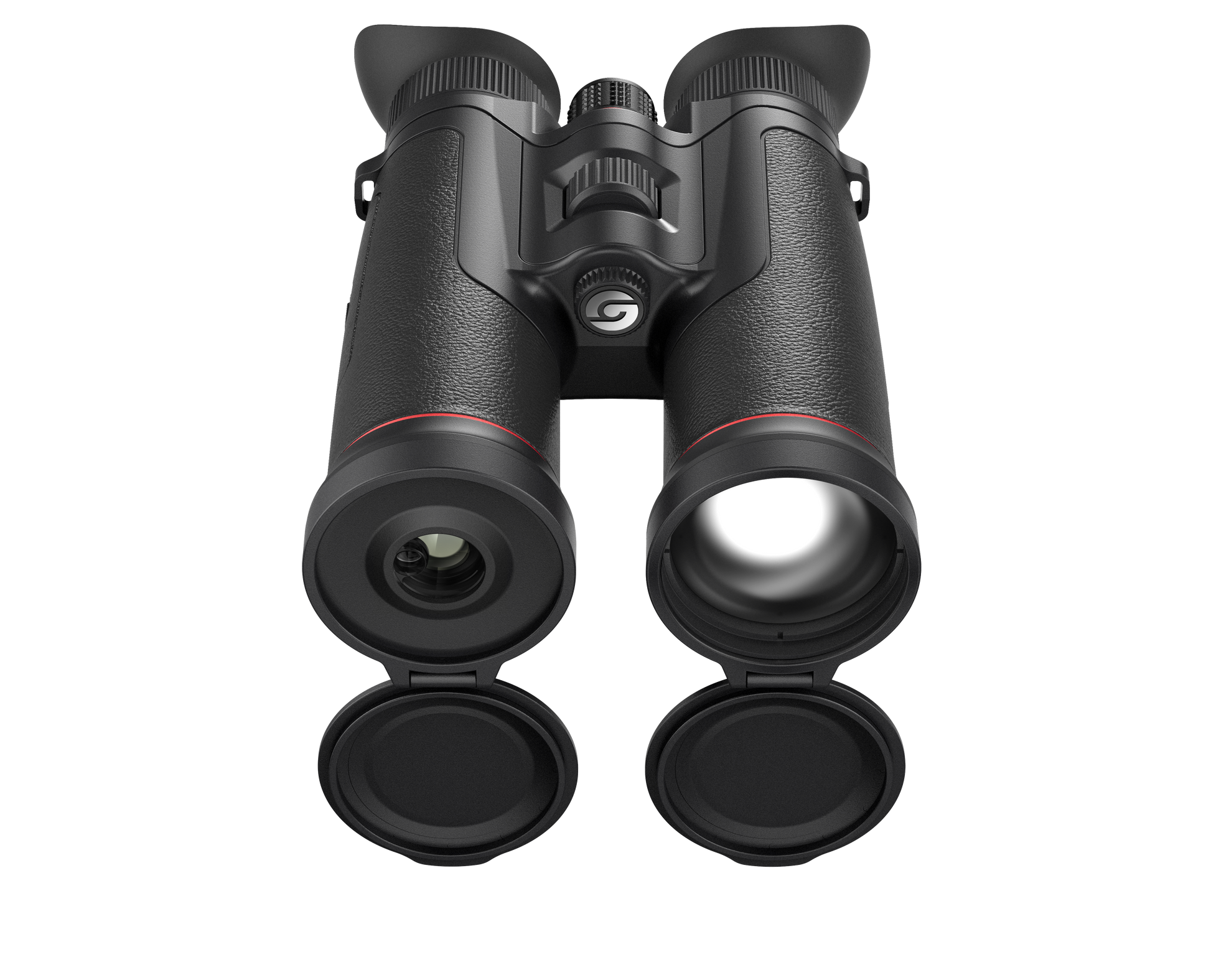

Laser Rangefinder for Precision Targeting
The TN 2.0 Series integrates a 1500m laser rangefinder, along with GPS, a digital compass and gyroscope, delivering accurate distance measurement and reliable target positioning in the field.
Premium Visuals, Optimised Clarity
The TN 2.0 Series combines a high-sensitivity detector with a 1920×1080 AMOLED display to deliver sharp, detailed imagery. Enhanced by the proprietary Hyper-light algorithm, it produces clearer contrast and improved detail in challenging conditions.
Specifications
| Product Name | Guide TN450LS 2.0 Thermal Binoculars |
|---|---|
| Laser Rangefinder | 1500m |
| Type-C Power Supply | 5V DC 2A via USB-C |
| Battery Operating Time | 8 hours |
| Battery Type | Customized Battery (Built-in) and 18650 ×1 Battery (External) |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Hotspot | 2.4 GHz / 5 GHz Wi-Fi |
| Capture Snapshot | Yes |
| Record Video | Yes |
| Working Temperature | From -20°C to 50°C |
| Dimension | 208×137×68.5mm |
| Weight | 722g |
| Protection Level | IP67 |
| Image Pro | N/A |
| HSIS | N/A |
| Zoom Pro | N/A |
| Diopter | -6D to +6D |
| Exit Pupil | - |
| Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Display | 0.49'' AMOLED 1920×1080 |
| Magnification | 6.2x~24.8x |
| Field of View (Degrees/m @ 100m) | 5.2°×3.1°/9X5 |
| Detection Range | 2600m |
| NETD | 15mK |
| Response Waveband | 8μm to 14μm |
| Pixel Interval | 12μm |
| Frame Rate | 50Hz |
| Sensor Resolution | 400×300 |
| Lens (Focal Length) | 50mm, F1.0 |
