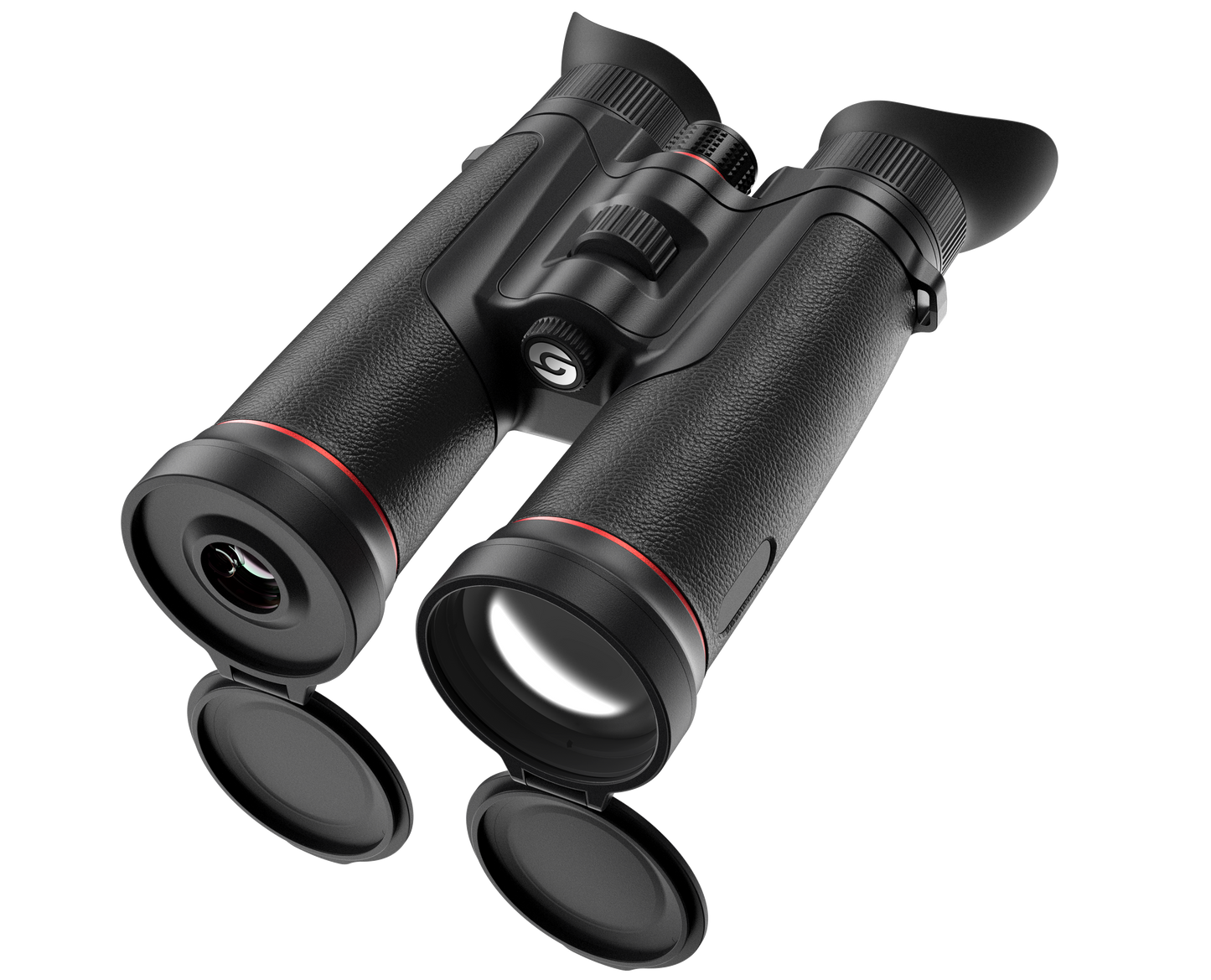

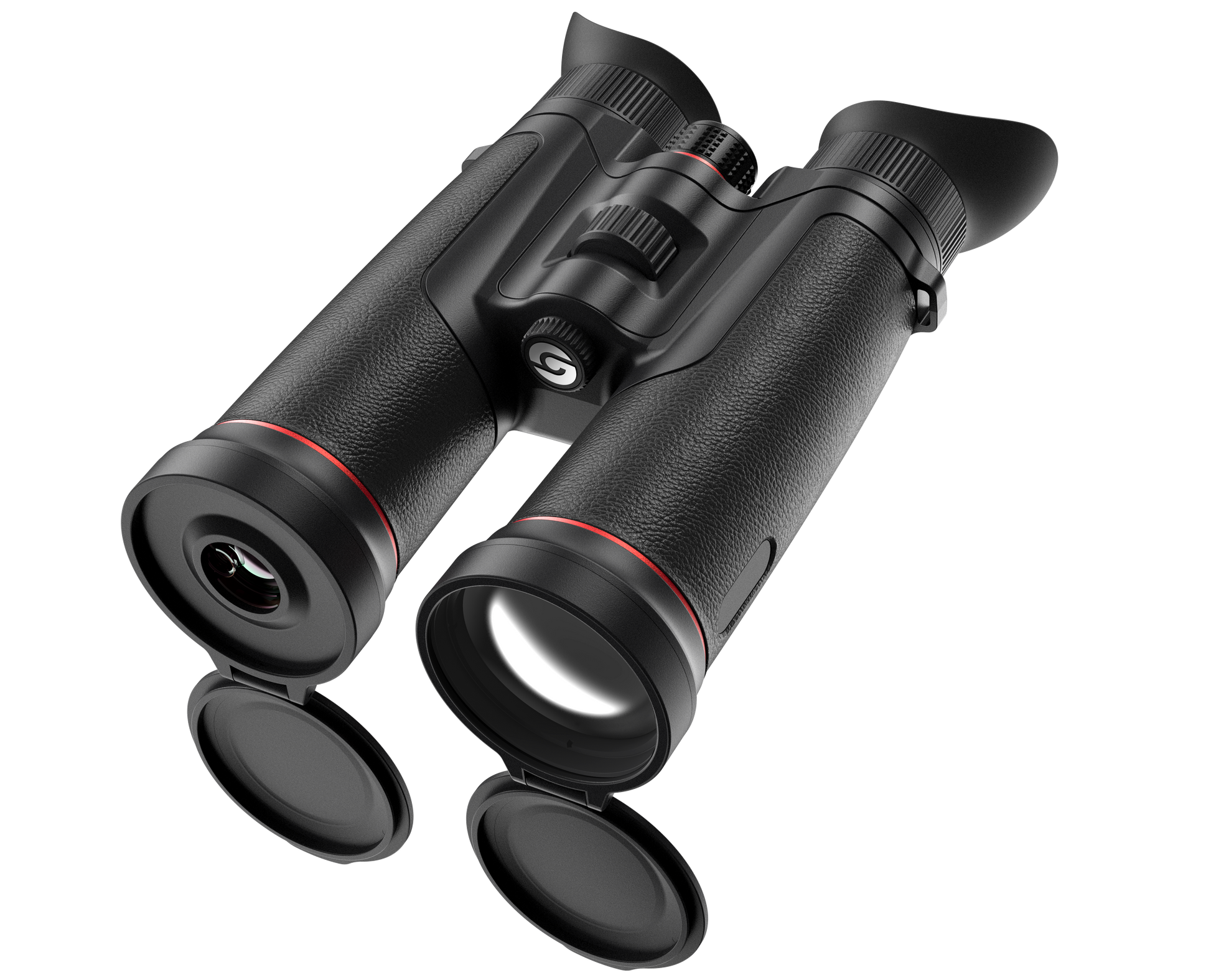

Guide TN650L 2.0 Thermal Binoculars
Guide TN650L 2.0 Thermal Binoculars
The all-new Guide TN 2.0 Binocular Series redefines all-weather optical imaging solutions with innovation and precision. The TN650L features a 640 x 512 @12μm thermal sensor with NETD <18mK sensitivity.
Whether for hunting, law enforcement or professional use, the series combines advanced thermal and visible light imaging technology, intelligent sensor fusion, and high-performance design to deliver exceptional performance and reliability, making it your ideal choice.
Slim, Lightweight Design
The TN 2.0 Series features a refined, slim housing inspired by classic binocular design, offering a more comfortable grip and improved handling in the field. Now 20% lighter than the previous generation, it delivers better balance and portability for extended use without fatigue.
One-Handed Control, Silent Operation
The TN 2.0 Series features a streamlined, quiet control layout with multi-function rotary knobs and customisable buttons, making operation simple and intuitive. Paired with an updated user interface, you can easily scroll to select and click to confirm, all with one hand.
Flexible Charging, Extended Runtime
The TN 2.0 Series features a dual battery system for maximum flexibility in the field. The built-in battery supports 18W fast charging, reaching 80% in just one hour, while the replaceable 18650 battery allows for hot swapping during operation, ensuring uninterrupted use when it matters most.
Laser Rangefinder for Precision Targeting
The TN 2.0 Series integrates a 1500m laser rangefinder, along with GPS, a digital compass and gyroscope, delivering accurate distance measurement and reliable target positioning in the field.
Premium Visuals, Optimised Clarity
The TN 2.0 Series combines a high-sensitivity detector with a 1920×1080 AMOLED display to deliver sharp, detailed imagery. Enhanced by the proprietary Hyper-light algorithm, it produces clearer contrast and improved detail in challenging conditions.
Specifications
| Product Name | Guide TN650L 2.0 Thermal Binoculars |
|---|---|
| Laser Rangefinder | 1500m |
| Type-C Power Supply | 5V DC 2A via USB-C |
| Battery Operating Time | 7 hours |
| Battery Type | 18650 Battery ×1 |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Hotspot | 2.4 GHz / 5 GHz Wi-Fi |
| Capture Snapshot | Yes |
| Record Video | Yes |
| Working Temperature | From -20°C to 50°C |
| Dimension | 208×137×68.5mm |
| Weight | 712g |
| Protection Level | IP67 |
| Image Pro | N/A |
| HSIS | N/A |
| Zoom Pro | N/A |
| Diopter | -6D to +6D |
| Exit Pupil | - |
| Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Display | 0.49'' AMOLED 1920×1080 |
| Magnification | 3.9x~31.2x |
| Field of View (Degrees/m @ 100m) | 8.2°×5.0° |
| Detection Range | 2600m |
| NETD | NETD 18mK |
| Response Waveband | 8μm to 14μm |
| Pixel Interval | 12μm |
| Frame Rate | 50Hz |
| Sensor Resolution | 640×512 |
| Lens (Focal Length) | 50mm, F1.0 |
