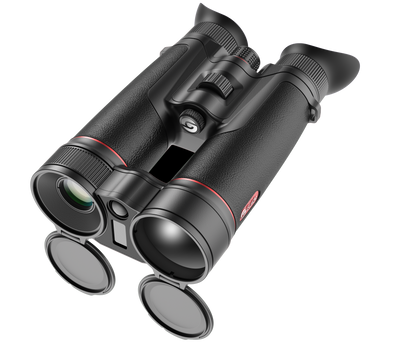

Guide TN650M 2.0 Multispectral Thermal Binoculars
Guide TN650M 2.0 Multispectral Thermal Binoculars
The TN MUO 2.0 Series brings together the best of both worlds, combining high-sensitivity thermal imaging with ultra-HD night vision in one compact, rugged binocular. The MUO 2.0 uses a powerful 640×512 thermal detector paired with a 3840×2160 low-light CMOS sensor, allowing you to switch between or fuse both views for unmatched situational awareness. With a 12μm thermal detector and ≤18mK NETD sensitivity, enhanced by the Hyper-Light image algorithm, you’ll experience crisp, detailed visuals even in the most challenging low-light or adverse weather conditions.
More than just optics, the MUO 2.0 integrates a rangefinder, GPS, and digital compass, giving you all the tools you need for quick, informed decision-making in the field. Built to withstand harsh conditions, it’s IP67-rated for water and dust resistance, and the auto screen-off feature saves energy while allowing discreet use when needed.
Thermal & Digital, All-Weather Performance
The TN Muo 2.0 Series features a dual-sensor system combining a 640×512 high-sensitivity thermal detector with a 4K low-light CMOS sensor, delivering consistent, reliable image performance across all lighting and weather conditions.
One-Handed Control, Intuitive Operation
The TN Muo 2.0 Series features a streamlined, quiet control layout with multi-function rotary knobs and customisable buttons, making operation simple and efficient. Paired with an updated, intuitive interface, you can easily scroll to select and click to confirm using one hand.
Slim, Lightweight Design
The TN Muo 2.0 Series features a refined, slim housing inspired by classic binocular design, offering a more comfortable grip and improved handling in the field. Now 20% lighter than the previous generation, it delivers better balance and portability for extended use without fatigue.
Laser Rangefinder for Precision Targeting
The TN Muo 2.0 Series integrates a 1500m laser rangefinder, along with GPS, a digital compass and gyroscope, delivering accurate distance measurement and reliable target positioning in the field.
Premium Visuals, Optimised Clarity
The TN Muo 2.0 Series combines a high-sensitivity detector with a 1920×1080 AMOLED display to deliver sharp, detailed imagery. Enhanced by the proprietary Hyper-light algorithm, it produces clearer contrast and improved detail in challenging conditions.
Specifications
| Product Name | Guide TN650M 2.0 Multispectral Thermal Binoculars |
|---|---|
| Laser Rangefinder | 1500m |
| Type-C Power Supply | 5V DC 2A via USB-C |
| Battery Operating Time | 5 hours |
| Battery Type | Customized Battery (Built-in) and 18650 ×1 Battery (External) |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Hotspot | 2.4 GHz / 5 GHz Wi-Fi |
| Capture Snapshot | Yes |
| Record Video | Yes |
| Working Temperature | From -20°C to 50°C |
| Dimension | 226×133×64mm |
| Weight | 865g |
| Protection Level | IP67 |
| Image Pro | N/A |
| HSIS | N/A |
| Zoom Pro | N/A |
| Diopter | -6D to +6D |
| Exit Pupil | - |
| Palettes | IR: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia; Visible: Day, Night, Low-light |
| Display | 0.49'' AMOLED 1920×1080 |
| Magnification | Thermal: 3.9x~31.2x; Digital: 2.6x~20.8x |
| Field of View (Degrees/m @ 100m) | Thermal: 8.2°×5.0°; Digital: 12.5°×7.5° |
| Detection Range | Thermal: 2600m/2800yd; Digital: 950m/1000yd |
| NETD | NETD 18mK |
| Response Waveband | Thermal: 8 to 14μm; Digital: CMOS |
| Pixel Interval | Thermal: 12μm Digital: 2μm |
| Frame Rate | 50Hz |
| Sensor Resolution | Thermal: 640×512 Digital: 3840×2160 |
| Lens (Focal Length) | Thermal: 50mm, F1.0; Digital: 33mm, F1.4 |
