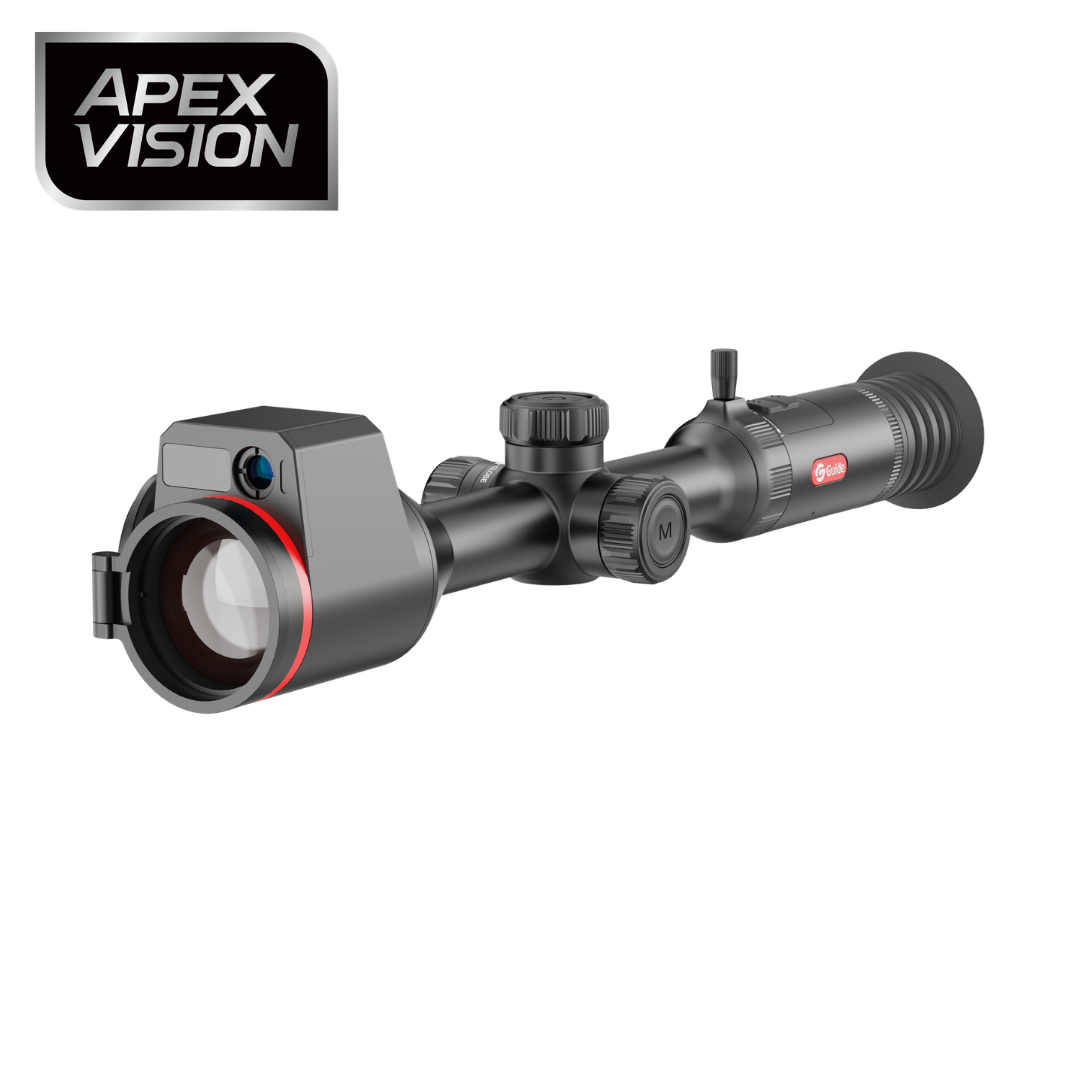

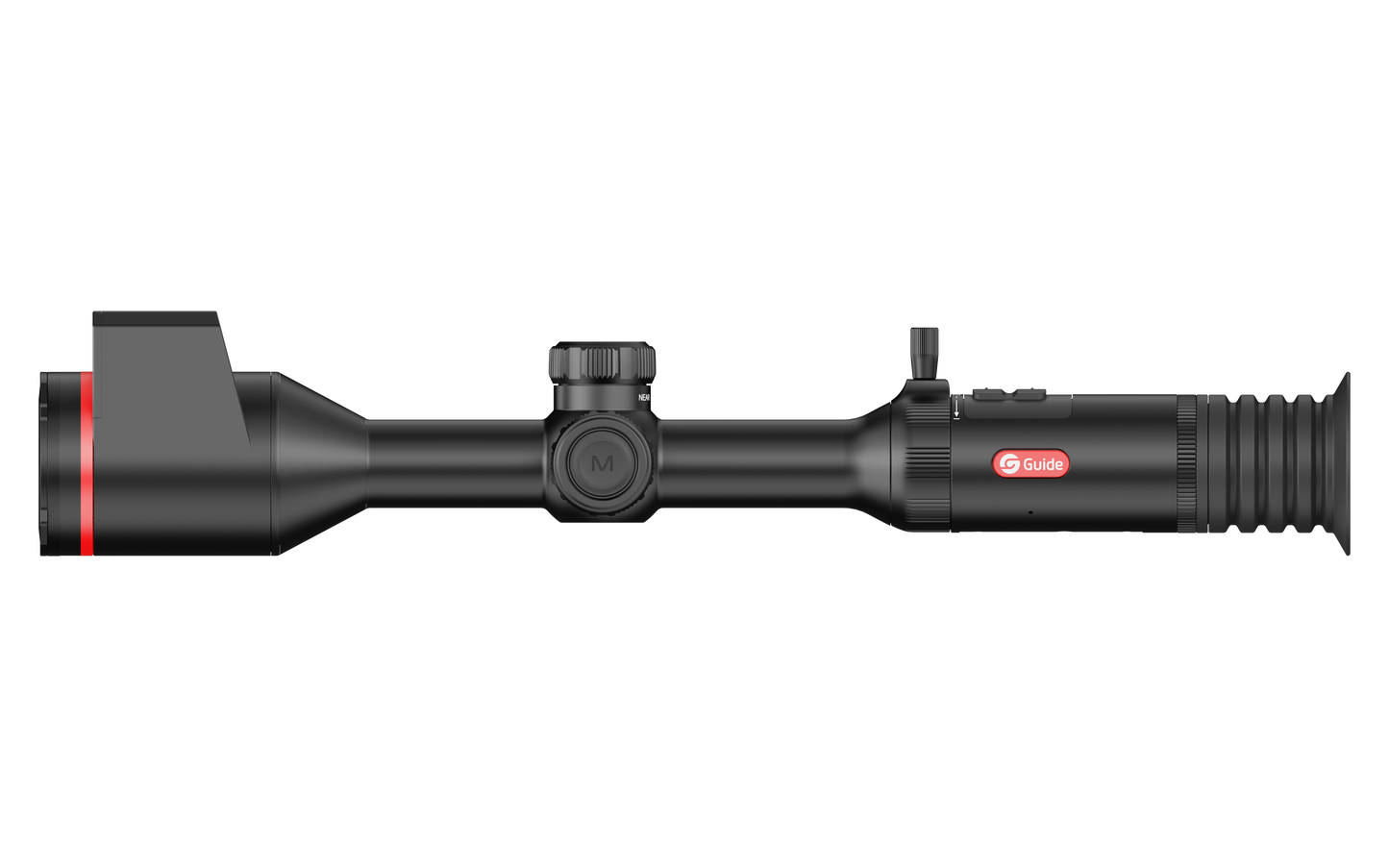

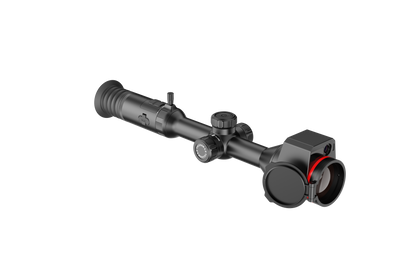

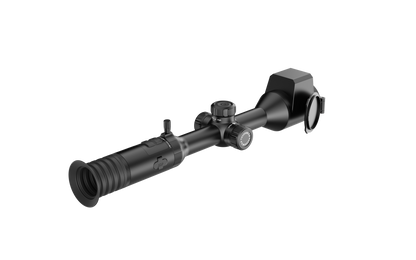

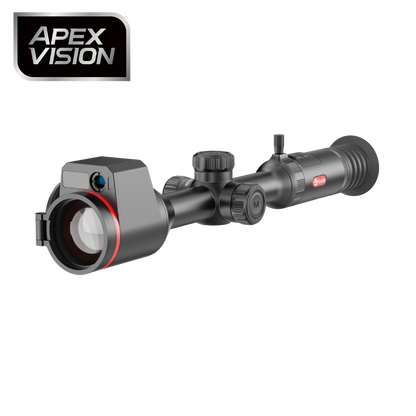

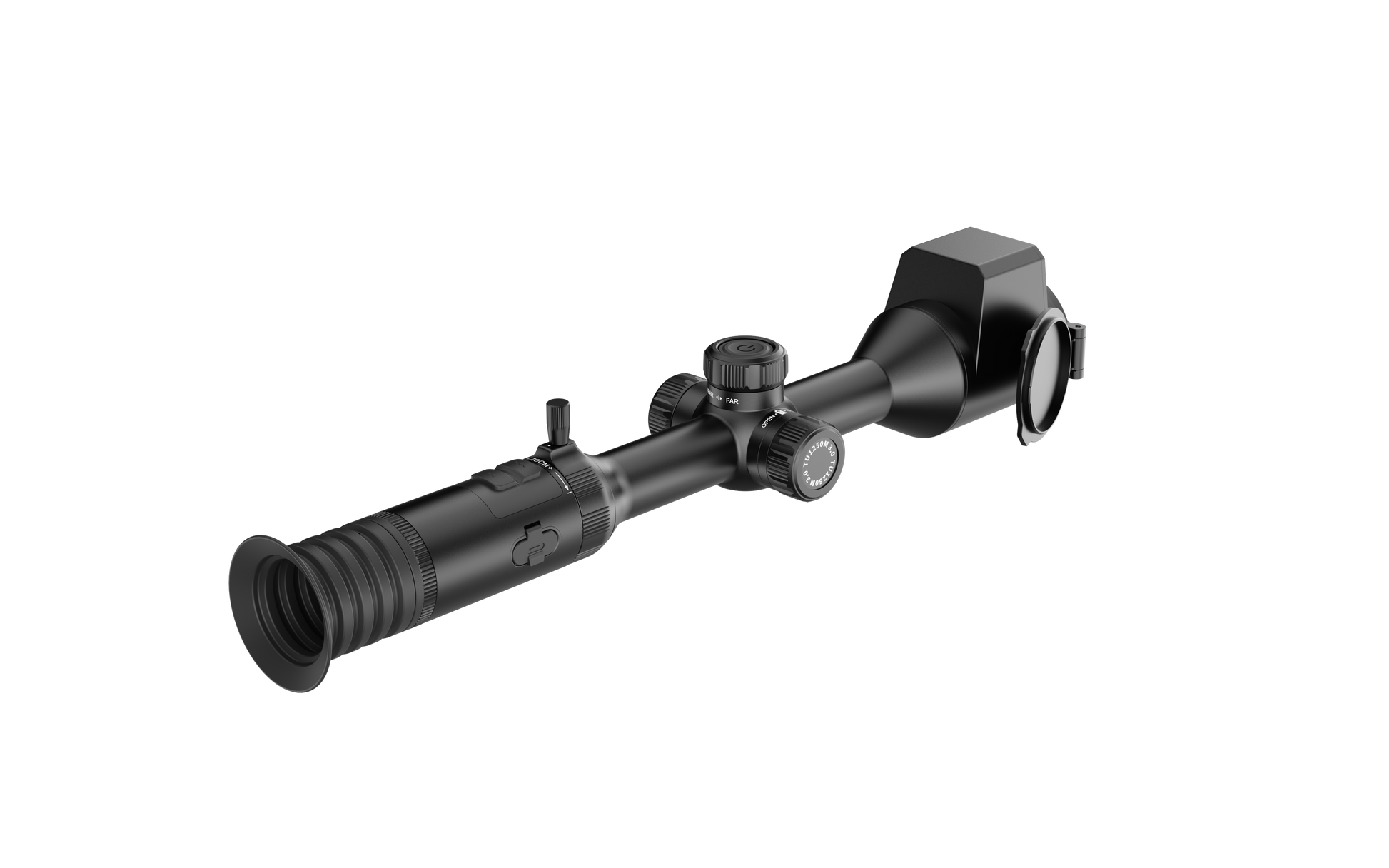

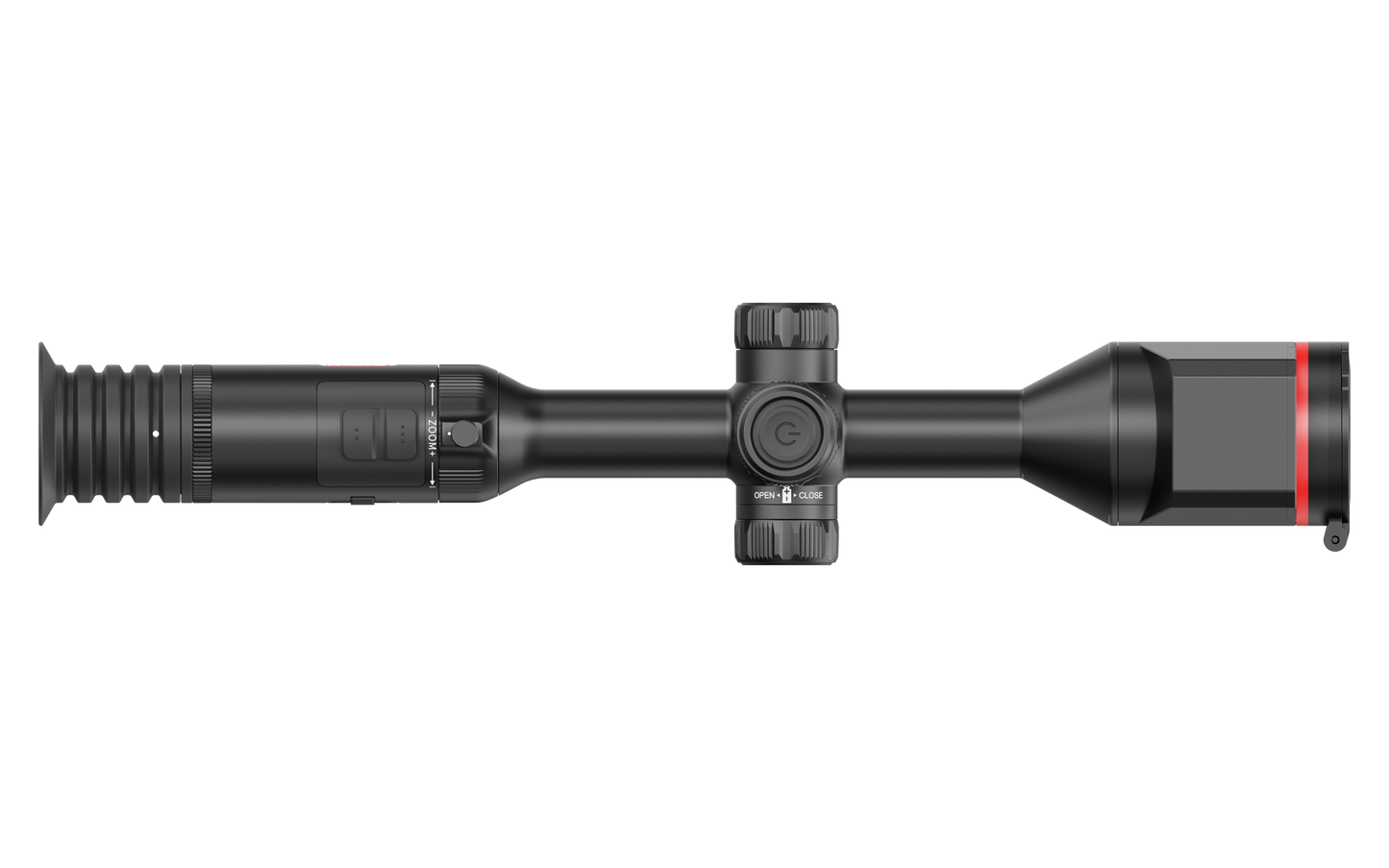

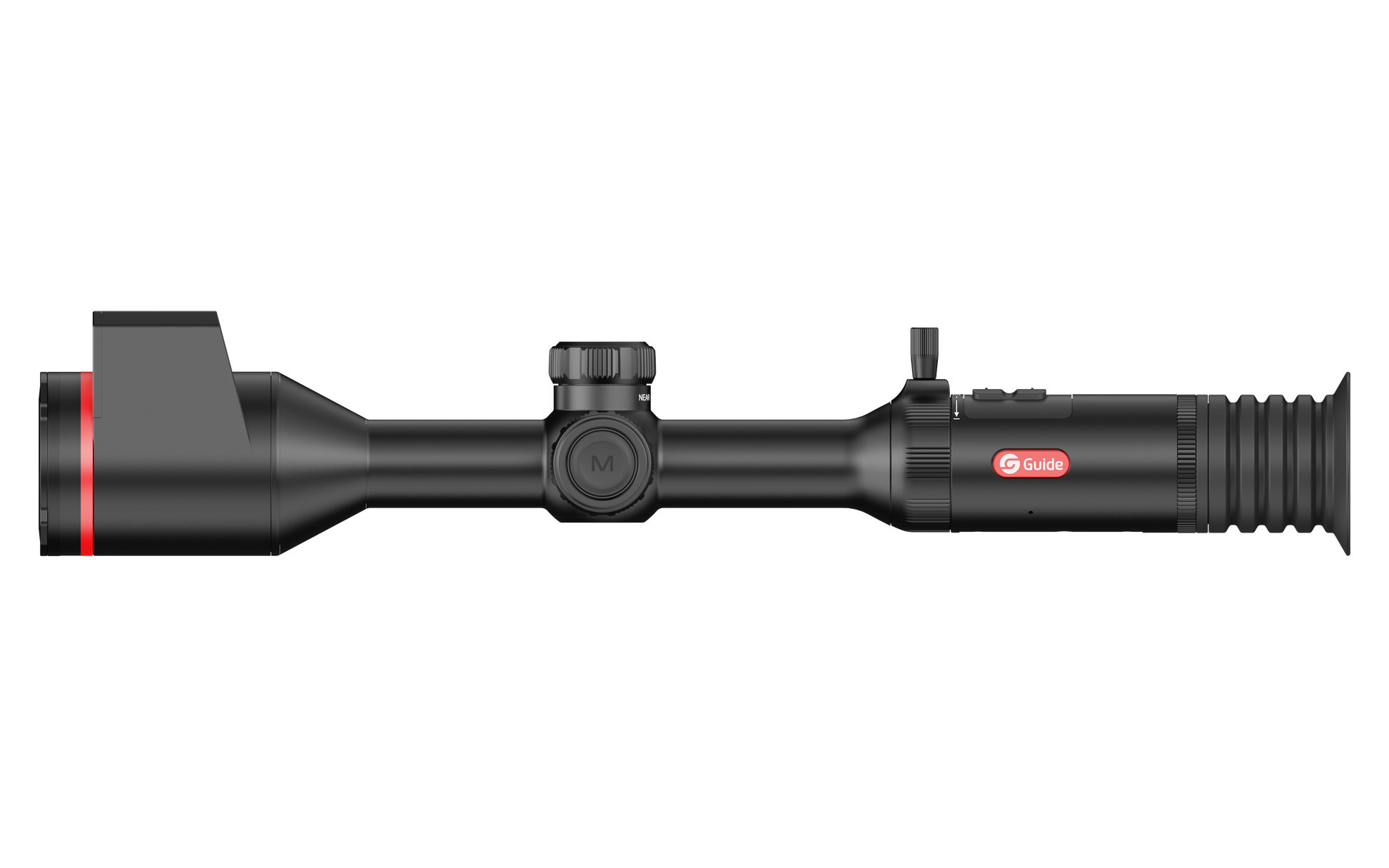

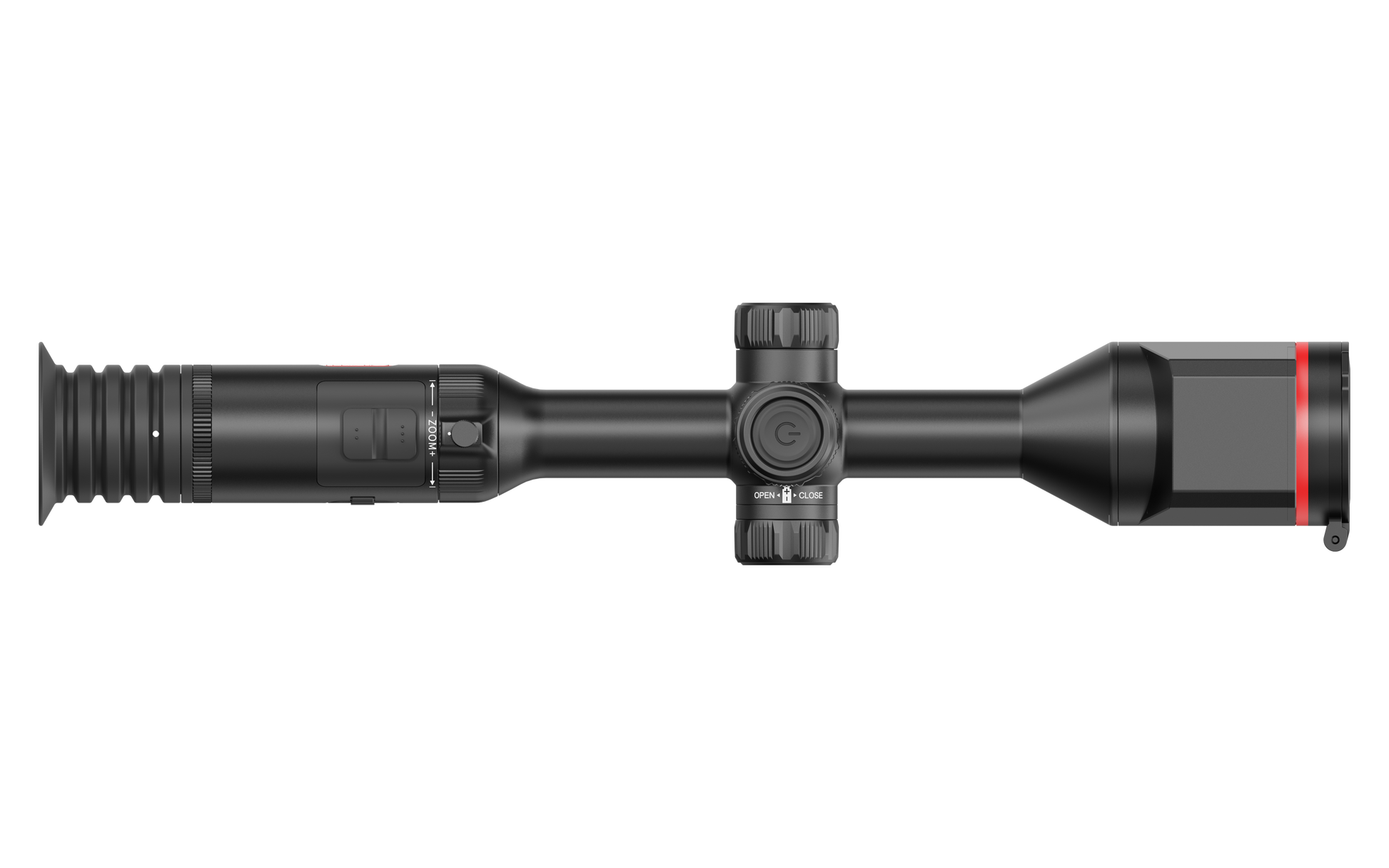

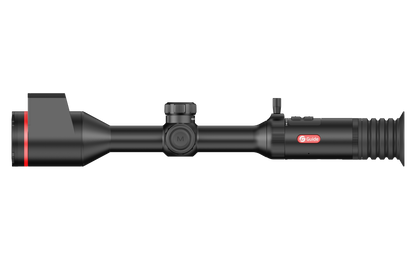

Guide TU1260MS Thermal Scope
Guide TU1260MS Thermal Scope
The TU MUO 3.0 sets a new benchmark in precision optics, combining advanced thermal and night vision technology into one rugged, all-weather device.
The TU1260MS is powered by the next-generation APEXVISION infrared imaging system and features a powerful 1280 × 1024 @12μm detector with 15mK NETD sensitivity and Hyper-Light enhancement. It delivers unmatched infrared imaging even in the toughest environments. A built-in laser rangefinder offers pinpoint accuracy out to 1500m, giving you confidence at any distance.
Built to endure extreme conditions, the TU MUO is IP68-rated and shock-resistant up to 6,000J, making it the ultimate choice for serious hunters and professionals who demand reliability without compromise.
INCLUDES QUICK RELEASE SCOPE MOUNT: Torque Settings = <2.5N·m / 22.13 in-lbs
INCLUDES IR TORCH & 30MM BRACKET
Complete ApexVision S1 System Architecture
Guide Sensmart’s next-generation thermal imaging solution that redefines the infrared core of outdoor optics from the ground up. Engineered for any condition, ApexVision delivers ultra-clear visuals with smooth, ghost-free motion, high-fidelity imaging, and razor-sharp detail at long range.
Thermal & Optical, All-Day. All-Weather
The TU Muo 3.0 Series combines thermal imaging and visible light technology with dedicated day, night, and low-light modes, delivering reliable performance in any environment.
Hyper-Light Algorithm, Ultra-Premium Visuals
Powered by next-generation sensors and the Hyper-Light algorithm, it delivers enhanced clarity, reduced noise, and optimized contrast, bringing out finer details with exceptional precision.
2560×2560 Display for Comfortable Viewing
Featuring a 1.03-inch AMOLED display with 2560×2560 resolution, the TU M 3.0 Series delivers crisp, detailed visuals. With 60mm eye relief and AI-enhanced imaging, it ensures a more comfortable viewing experience, even during extended use.
Dual Battery Design, Worry-Free Power
Two built-in batteries, combined with a replaceable external power source, deliver up to 12 hours of continuous use. Hot-swappable standard 18650 batteries allow you to extend runtime even further, keeping you powered in the field.
Specifications
| Product Name | Guide TU1260MS Thermal Scope |
|---|---|
| Laser Rangefinder | 1500m |
| Type-C Power Supply | USB-C (Charge/USB 2.0) |
| Battery Operating Time | 9 Hours |
| Battery Type | 18650 ×2 Battery (Built-in) and 18650 ×1 Battery (External) |
| Audio Recording | Yes |
| Standby Mode | - |
| Hotspot | Yes |
| Capture Snapshot | - |
| Record Video | Yes |
| Working Temperature | -20°C to 50°C |
| Dimension | 450×90×91mm |
| Weight | 1145g |
| Protection Level | IP68 |
| Image Pro | N/A |
| HSIS | N/A |
| Zoom Pro | N/A |
| Diopter | -5 to +5 |
| Exit Pupil | - |
| Palettes | IR: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia; Visible: Day, Night, Low-light |
| Display | 1.03'' AMOLED 2560×2560 |
| Magnification | Thermal: 2.3x~36.8x; Digital: 5.1x~81.6x |
| Field of View (Degrees/m @ 100m) | Thermal: 14.6°×11.7°; Digital: 6.4°×5.1° |
| Detection Range | Thermal: 3200m/2800yd; Digital: 330m/360yd |
| NETD | 15mK |
| Response Waveband | 8um to 14um |
| Pixel Interval | 12um |
| Frame Rate | 50Hz |
| Sensor Resolution | Thermal: 1280×1024; Digital: 1920×1080 |
| Lens (Focal Length) | Thermal: 60mm, F0.9; Digital: 35mm, F4.0 |
