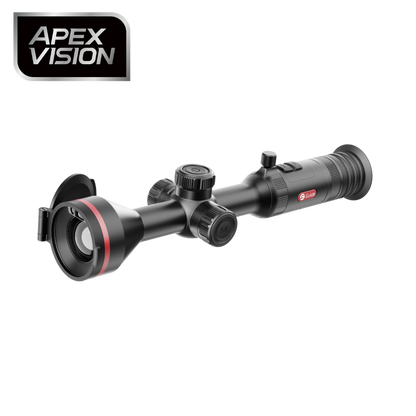

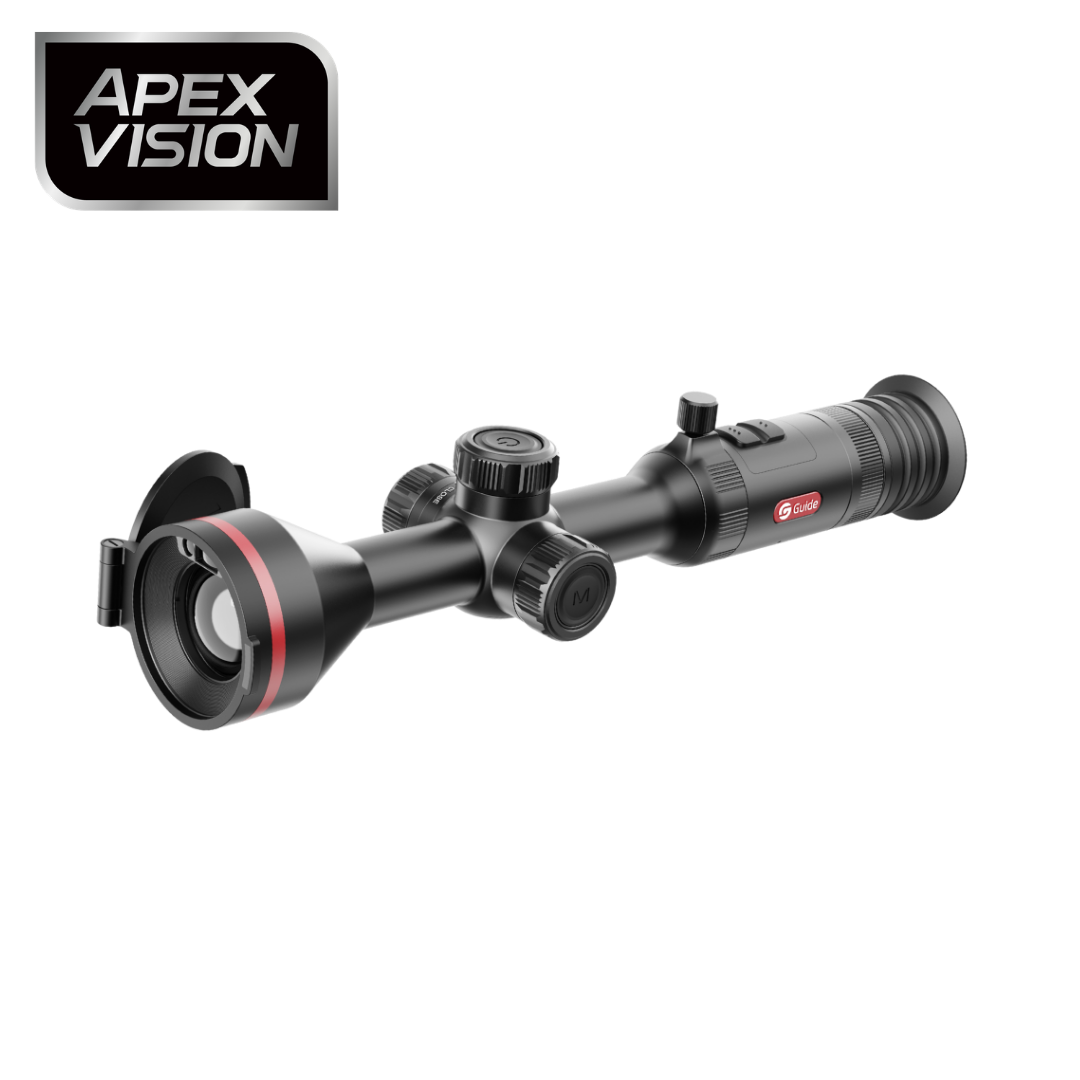

Guide TU435LS Thermal Scope with LRF
Guide TU435LS Thermal Scope with LRF
The Guide TU435LS is a top-tier model in the Guide TU 3.0 Series, powered by the next-generation APEXVISION infrared imaging system. It features a 400 x 300 @12μm thermal sensor with an impressive <15mK NETD sensitivity, delivering ultra-clear thermal images in challenging conditions.
The powerful lens system offers a 1800m detection range, while the built-in lens laser rangefinder gives fast, accurate distance readings up to 1200m, ideal for precision targeting at extended distances.
Designed for rugged use, the TU435LS includes a shutterless design, IP68 waterproof rating, dual-band Wi-Fi, and intuitive controls. Everything you need for reliable performance in the field.

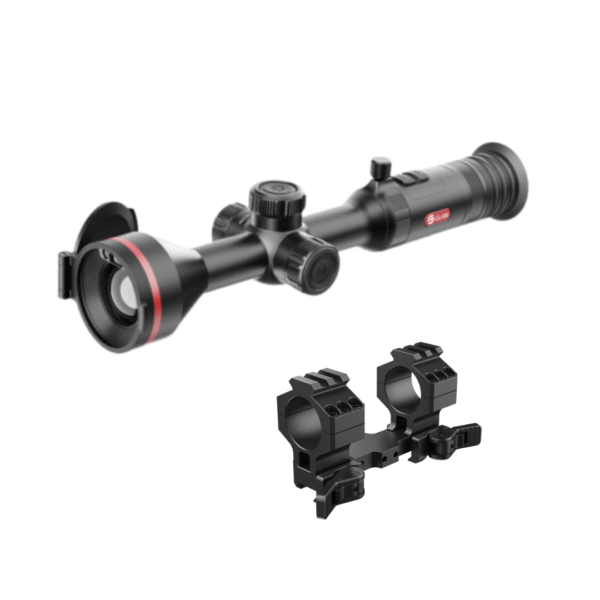

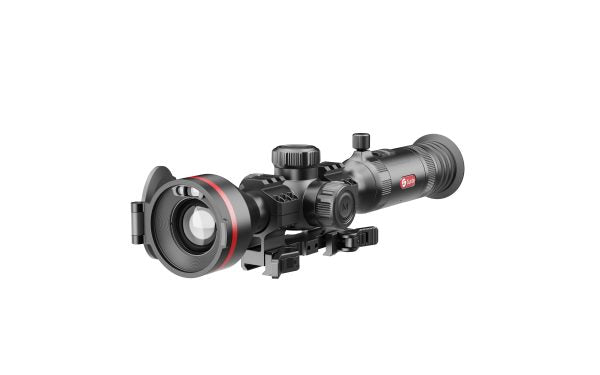

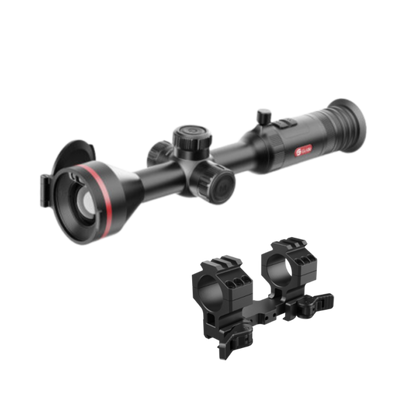

INCLUDES QUICK RELEASE SCOPE MOUNT.
Quick Release Mount Scope Tube Torque Settings = <2.5N·m / 22.13 in-lbs
Complete ApexVision S1 System Architecture
The Guide TULS is powered by Guide's next-generation thermal imaging solution. ApexVision redefines the infrared core of outdoor optics from the ground up - engineered for any condition, it delivers ultra-clear visuals with smooth, ghost-free motion, high-fidelity imaging and razor-sharp detail at long range.

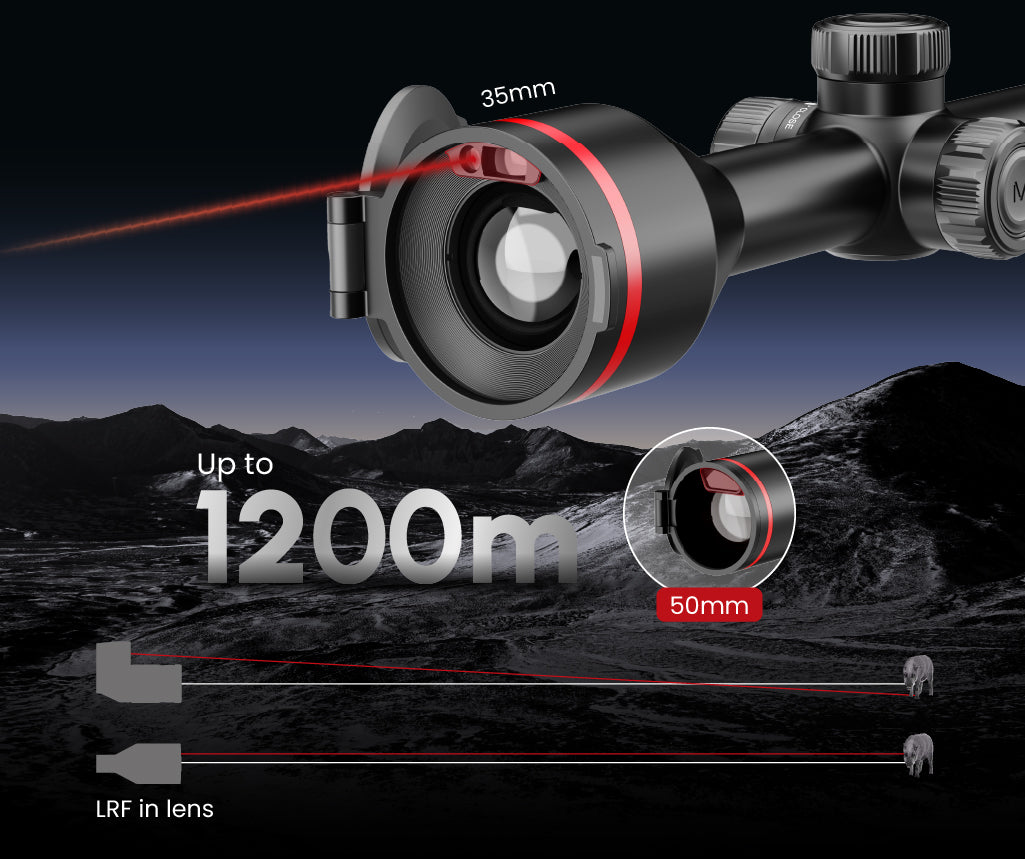

LRF in Lens for Precision Shooting
The 1200m laser rangefinder is seamlessly integrated into the objective lens, minimizing the distance to the optical axis. This reduces parallax error and delivers highly accurate ranging in a more compact form.
Hyper-Light Algorithm, Ultra-Premium Visuals
Powered by next-generation sensors and the Hyper-Light algorithm, it delivers enhanced clarity, reduced noise, and optimized contrast, bringing out finer details with exceptional precision.
2560×2560 Display for Comfortable Viewing
Featuring a 1.03-inch AMOLED display with 2560×2560 resolution, the TU 3.0 Series delivers crisp, detailed visuals. With 60mm eye relief and AI-enhanced imaging, it ensures a more comfortable viewing experience, even during extended use.
Dual Battery Design, Worry-Free Power
A dual internal battery system, combined with a replaceable external battery, delivers up to 14 hours of continuous use. With support for hot-swappable 18650 batteries, you can extend runtime even further, keeping you powered for longer in the field.
Shutterless Design, Uninterrupted Visuals
Advanced Shutterless 3.0 technology eliminates image freezing and audible clicks, delivering smooth, real-time viewing without interruptions in the field.
Note: A shutter module is retained to maintain optimal image quality during startup and in extreme temperature conditions.
Specifications
| Product Name | Guide TU435LS Thermal Scope with LRF |
|---|---|
| Laser Rangefinder | 1200m |
| Type-C Power Supply | USB‑C (Charge/USB2.0) |
| Battery Operating Time | 14 Hours |
| Battery Type | 18650×2 Built-in + 18650×1 External |
| Audio Recording | Yes |
| Standby Mode | - |
| Hotspot | Yes |
| Capture Snapshot | - |
| Record Video | Yes |
| Working Temperature | -20°C to 50°C |
| Dimension | 420×89×80mm |
| Weight | 875g |
| Protection Level | IP68 |
| Image Pro | N/A |
| HSIS | N/A |
| Zoom Pro | N/A |
| Diopter | -5 to +5 |
| Exit Pupil | - |
| Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Display | 1.03'' AMOLED 2560×2560 |
| Magnification | 4.2x – 16.8x |
| Field of View (Degrees/m @ 100m) | 14 × 10m |
| Detection Range | 1800m |
| NETD | 15mK |
| Response Waveband | 8–14μm |
| Pixel Interval | 12μm |
| Frame Rate | 50Hz |
| Sensor Resolution | 400×300 |
| Lens (Focal Length) | 35mm |
