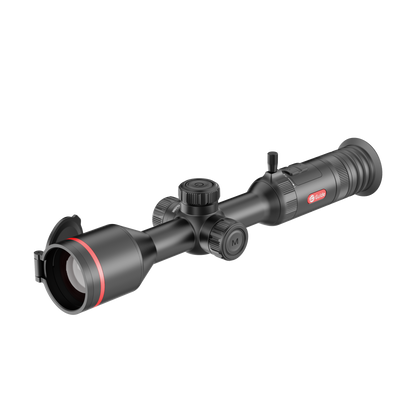

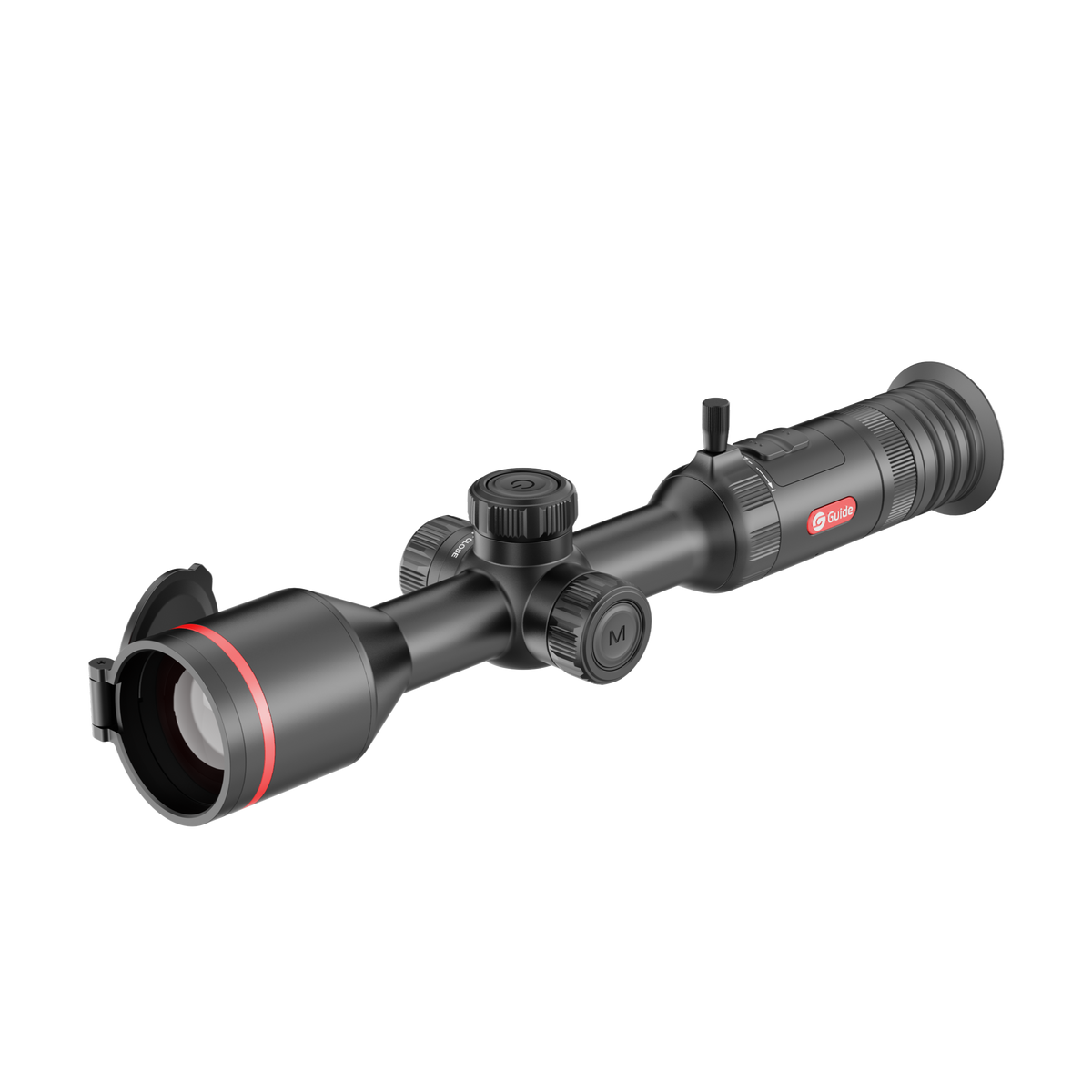

Guide TU635 3.0 Thermal Scope
Guide TU635 3.0 Thermal Scope
The Guide TU635 3.0 is built for serious hunters and professionals who need reliable thermal performance in the field, The TU635S features a 640×512 @12μm thermal sensor with <18mK NETD sensitivity, giving you clear images even in tough conditions. With a 35mm lens and a detection range of up to 1800 metres, it’s perfect for medium to long-range spotting.
Designed for tough environments, the TU635 includes a shutterless design, IP68 waterproof rating, dual-band Wi-Fi, and easy-to-use controls. Durable, powerful, and ready for any challenge.
SKU: TIGUI249
Lightweight Design, Compact Housing
Redesigned for improved portability, the TU 3.0 is over 200g lighter than its predecessor while maintaining the same configuration. The slim, metallic housing enhances handling and overall comfort.
Hyper-Light Algorithm, Ultra-Premium Visuals
Powered by next-generation sensors and the Hyper-Light algorithm, the TU 3.0 delivers enhanced clarity, reduced noise, and optimized contrast, bringing out finer details with exceptional precision.
2560×2560 Display for Comfortable Viewing
Featuring a 1.03-inch AMOLED display with 2560×2560 resolution, the TU Pro 3.0 Series delivers crisp, detailed visuals. With 60mm eye relief and AI-enhanced imaging, it ensures a more comfortable viewing experience, even during extended use.
Seamless Control, Easy Focus & Zoom
Refined through extensive field testing and user feedback, the TU 3.0 features an ergonomic control layout, from the focus wheel to the zoom lever and button, designed for intuitive, comfortable operation
Shutterless Design, Uninterrupted Visuals
Advanced Shutterless 3.0 technology eliminates image freezing and audible clicks, delivering smooth, real-time viewing without interruptions in the field.
Note: A shutter module is retained to maintain optimal image quality during startup and in extreme temperature conditions.
Specifications
| Product Name | Guide TU635 3.0 Thermal Scope |
|---|---|
| Laser Rangefinder | N/A |
| Type-C Power Supply | USB‑C (Charge/USB2.0) |
| Battery Operating Time | 12 Hours |
| Battery Type | 18650×2 Built-in + 18650×1 External |
| Audio Recording | Yes |
| Standby Mode | - |
| Hotspot | Yes |
| Capture Snapshot | - |
| Record Video | Yes |
| Working Temperature | -20°C to 50°C |
| Dimension | 374 x 89 x 82mm |
| Weight | 815g |
| Protection Level | IP68 |
| Image Pro | N/A |
| HSIS | N/A |
| Zoom Pro | N/A |
| Diopter | -5 to +5 |
| Exit Pupil | - |
| Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Display | 0.49'' AMOLED 1920×1080 |
| Magnification | 3x~24x |
| Field of View (Degrees/m @ 100m) | 11.8°×7.1°/21x12 |
| Detection Range | 1800m |
| NETD | 18mK |
| Response Waveband | 8–14μm |
| Pixel Interval | 12μm |
| Frame Rate | 50Hz |
| Sensor Resolution | 640×512 |
| Lens (Focal Length) | 35mm |
