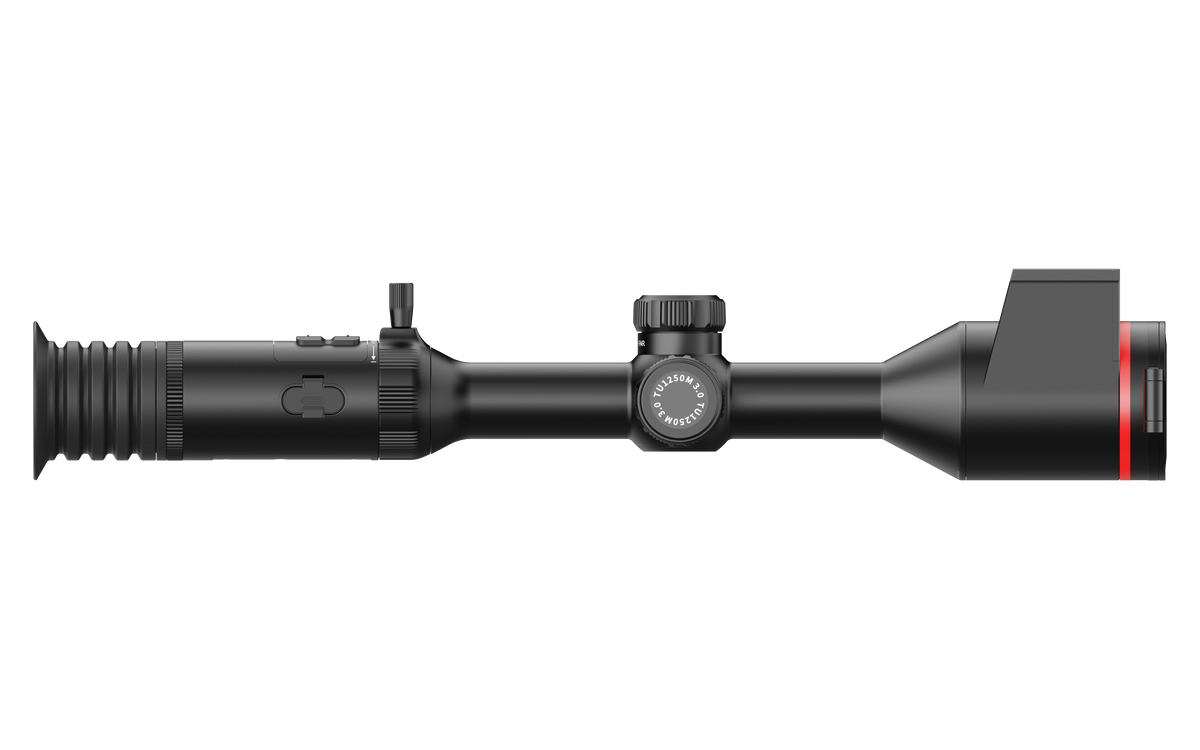

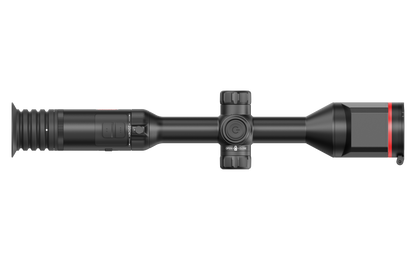

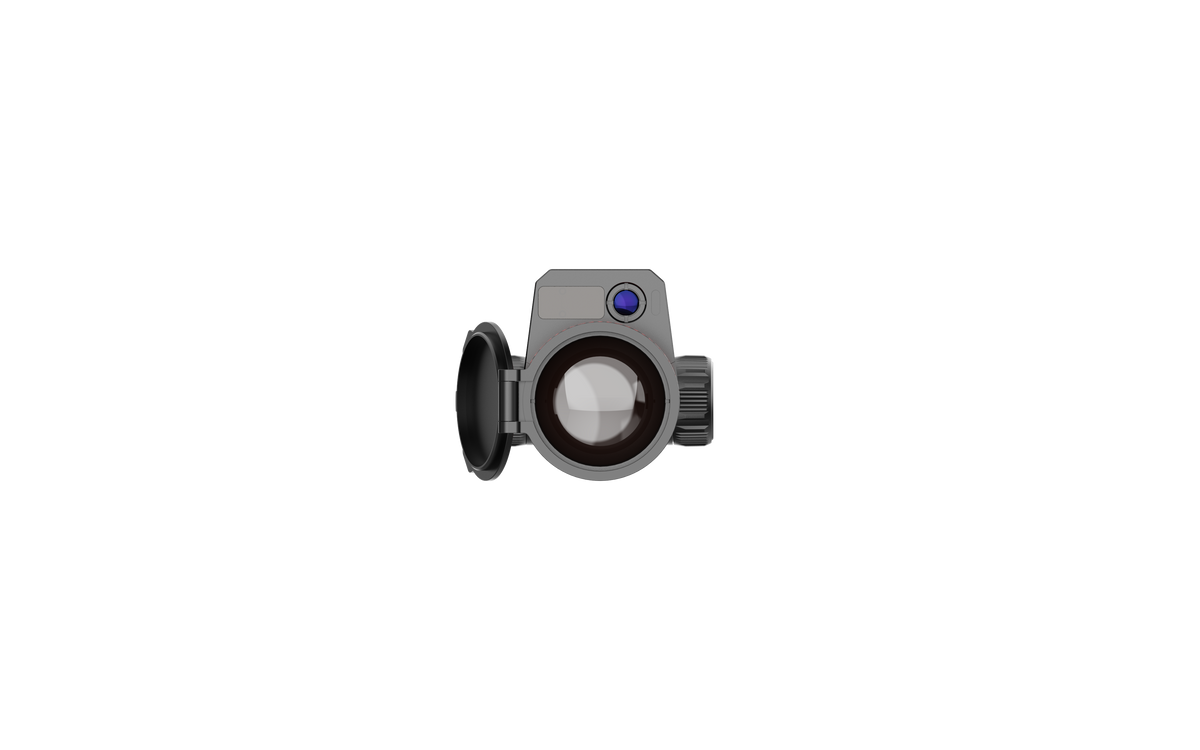

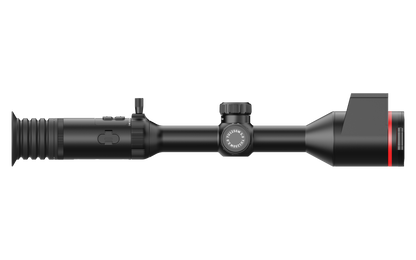

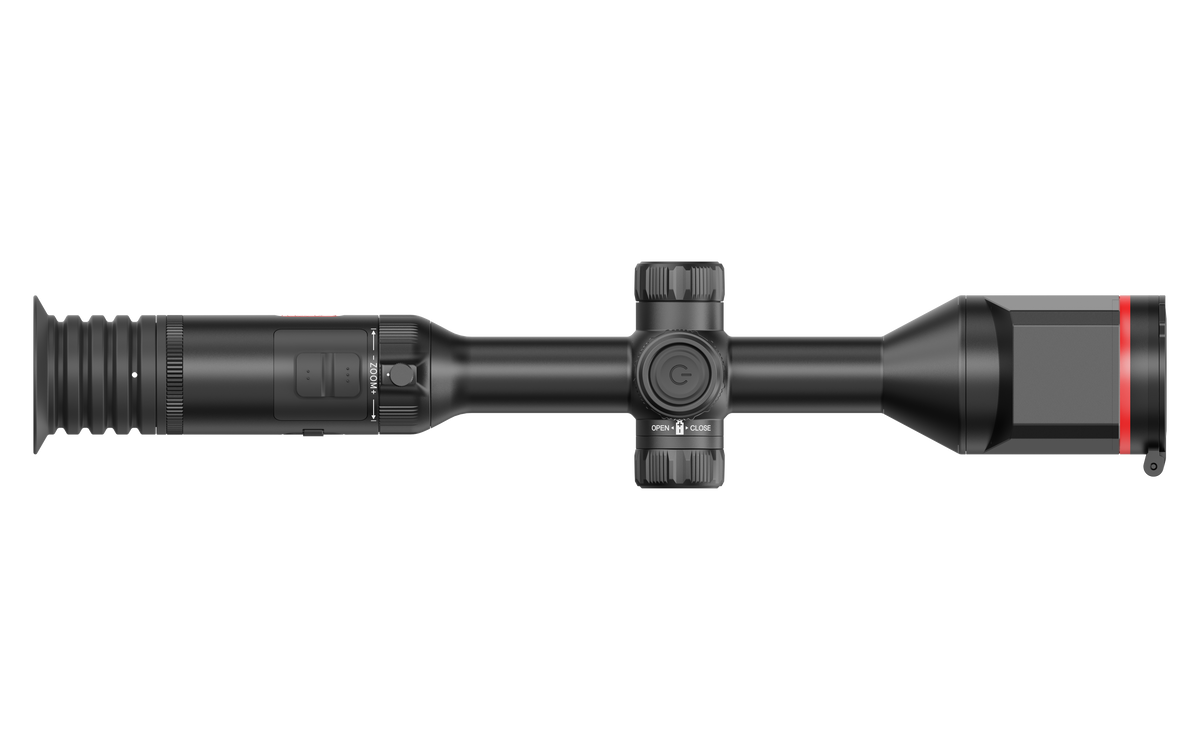

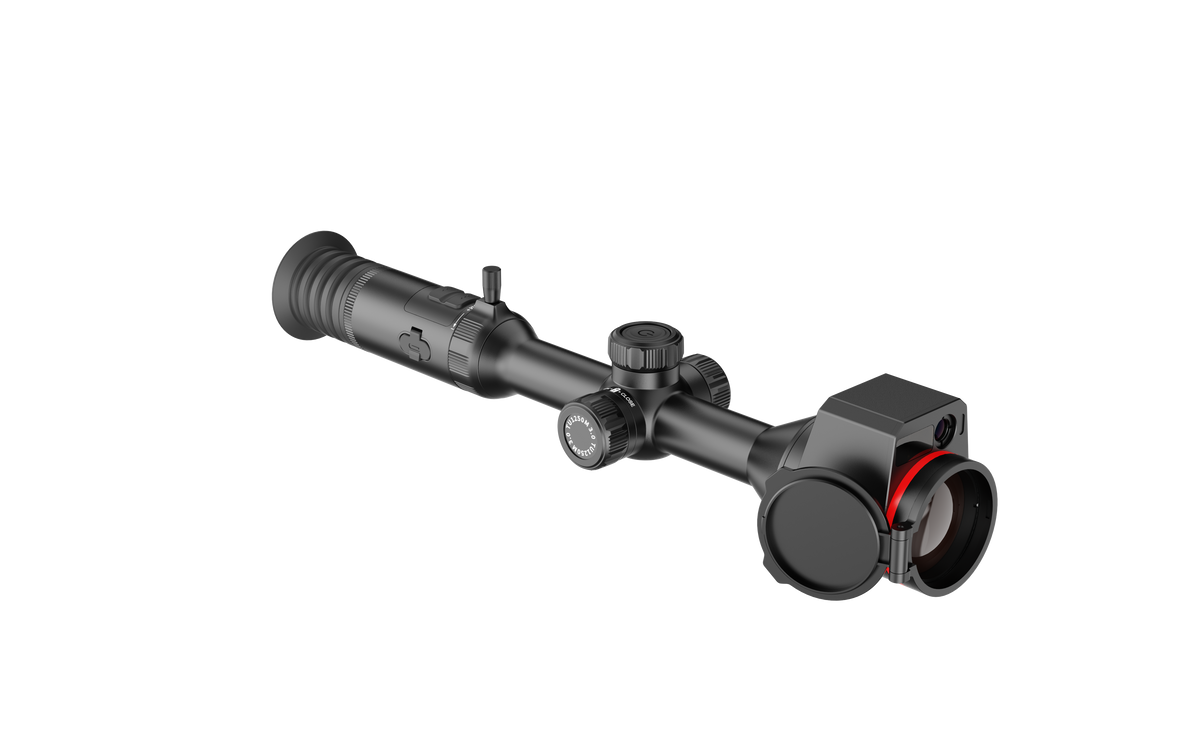

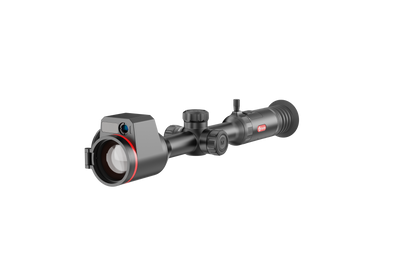

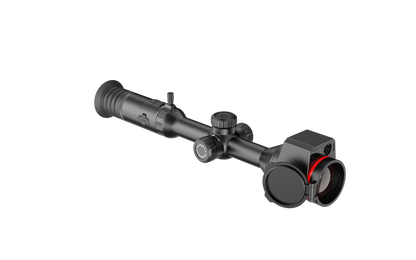

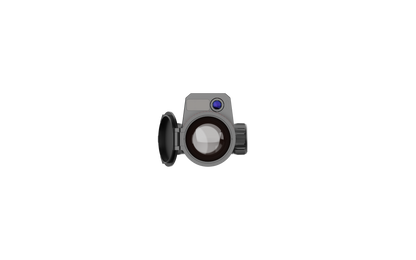

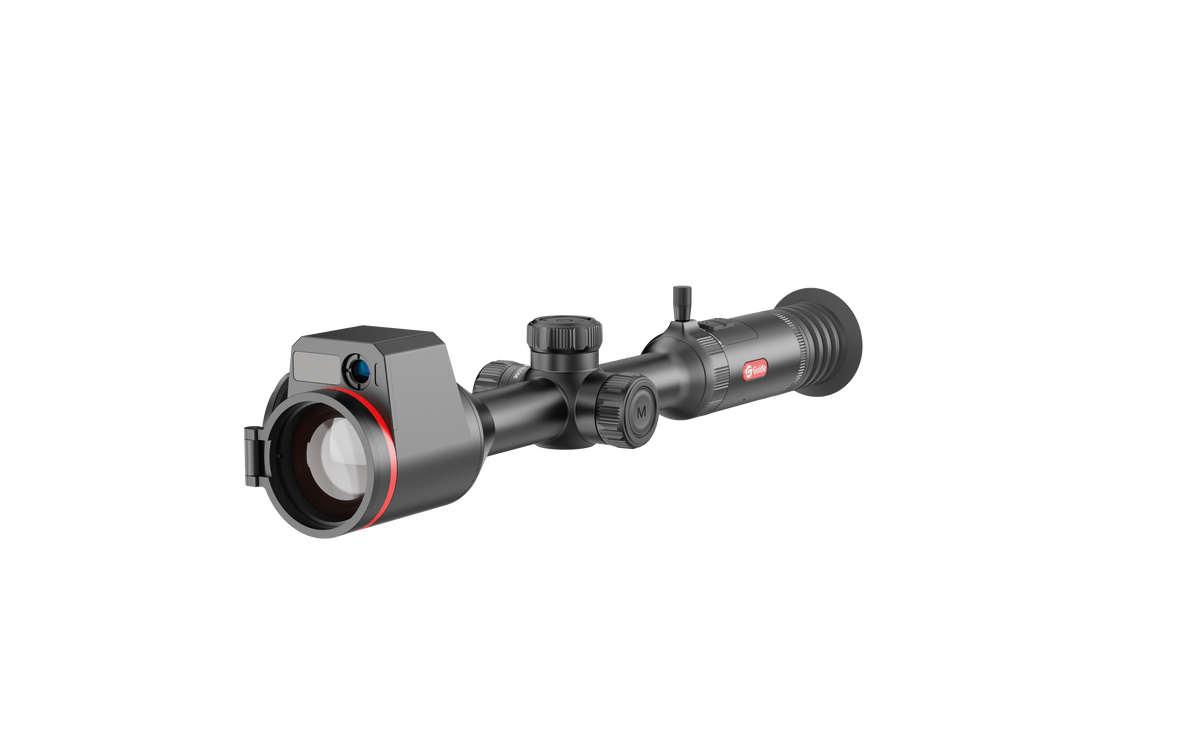

Guide TU650M 3.0 Thermal Scope
Guide TU650M 3.0 Thermal Scope
The TU MUO 3.0 sets a new benchmark in precision optics, combining advanced thermal and night vision technology into one rugged, all-weather device.
Featuring a powerful 640 × 512 12μm detector with 18mK NETD sensitivity and Hyper-Light enhancement, it delivers unmatched infrared imaging even in the toughest environments. A built-in laser rangefinder offers pinpoint accuracy out to 1500m, giving you confidence at any distance.
Built to endure extreme conditions, the TU MUO 3.0 is IP68-rated and shock-resistant up to 6,000, making it the ultimate choice for serious hunters and professionals who demand reliability without compromise.

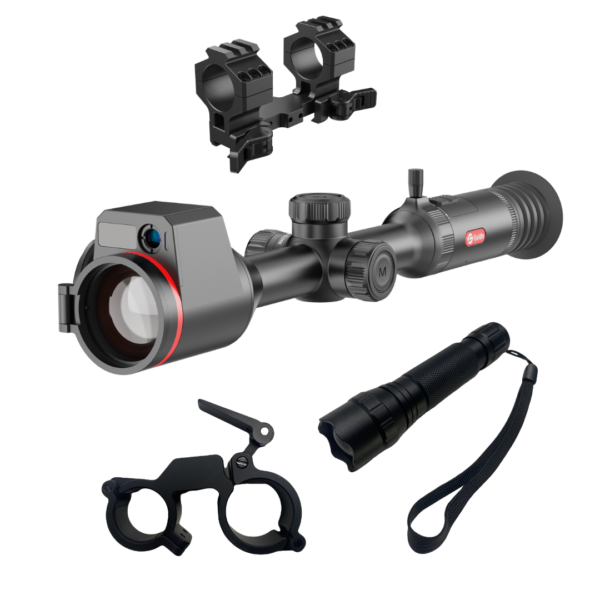

INCLUDES QUICK RELEASE SCOPE MOUNT: Torque Settings = <2.5N·m / 22.13 in-lbs
INCLUDES IR TORCH & 30MM BRACKET
SKU: TIGUI306
Thermal & Optical, All-Day. All-Weather
The TU Muo 3.0 Series combines thermal imaging and visible light technology with dedicated day, night, and low-light modes, delivering reliable performance in any environment.
Hyper-Light Algorithm, Ultra-Premium Visuals
Powered by next-generation sensors and the Hyper-Light algorithm, it delivers enhanced clarity, reduced noise, and optimized contrast, bringing out finer details with exceptional precision.
2560×2560 Display for Comfortable Viewing
Featuring a 1.03-inch AMOLED display with 2560×2560 resolution, the TU M 3.0 Series delivers crisp, detailed visuals. With 60mm eye relief and AI-enhanced imaging, it ensures a more comfortable viewing experience, even during extended use.
Dual Battery Design, Worry-Free Power
Two built-in batteries, combined with a replaceable external power source, deliver up to 12 hours of continuous use. Hot-swappable standard 18650 batteries allow you to extend runtime even further, keeping you powered in the field.
Specifications
| Product Name | Guide TU650M 3.0 Thermal Scope |
|---|---|
| Laser Rangefinder | 1500m |
| Type-C Power Supply | 5V DC 2A via USB-C |
| Battery Operating Time | 14 hours |
| Battery Type | 18650 ×2 Battery (Built-in) and 18650 ×1 Battery (External) |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Hotspot | 2.4 GHz / 5 GHz Wi-Fi |
| Capture Snapshot | Yes |
| Record Video | Yes |
| Working Temperature | From -20°C to 50°C |
| Dimension | 457×90×84mm |
| Weight | 1013g |
| Protection Level | IP68 |
| Image Pro | N/A |
| HSIS | N/A |
| Zoom Pro | N/A |
| Diopter | -5D to +5D |
| Exit Pupil | - |
| Palettes | IR: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia; Visible: Day, Night, Low-light |
| Display | 1.03'' AMOLED 2560×2560 |
| Magnification | Thermal: 3.7x~29.6x; Digital: 3.7x~29.6x |
| Field of View (Degrees/m @ 100m) | Thermal: 8.8°×7.0°; Digital: 6.4°×5.1° |
| Detection Range | Thermal: 2600m/2800yd; Digital: 500m/550yd |
| NETD | NETD 18mK |
| Response Waveband | Thermal: 8 to 14μm; Digital: CMOS |
| Pixel Interval | Thermal: 12μm Digital: 2.9μm |
| Frame Rate | 50Hz |
| Sensor Resolution | Thermal: 640×512 Digital: 1920×1080 |
| Lens (Focal Length) | Thermal: 50mm, F1.0; Digital: 35mm, F4.0 |
