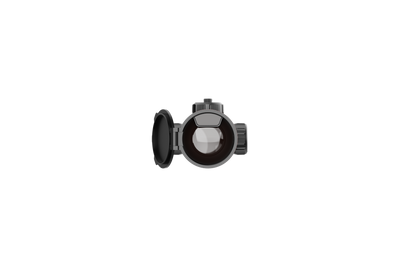

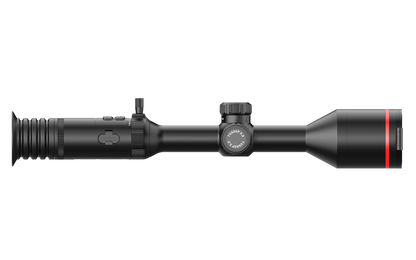

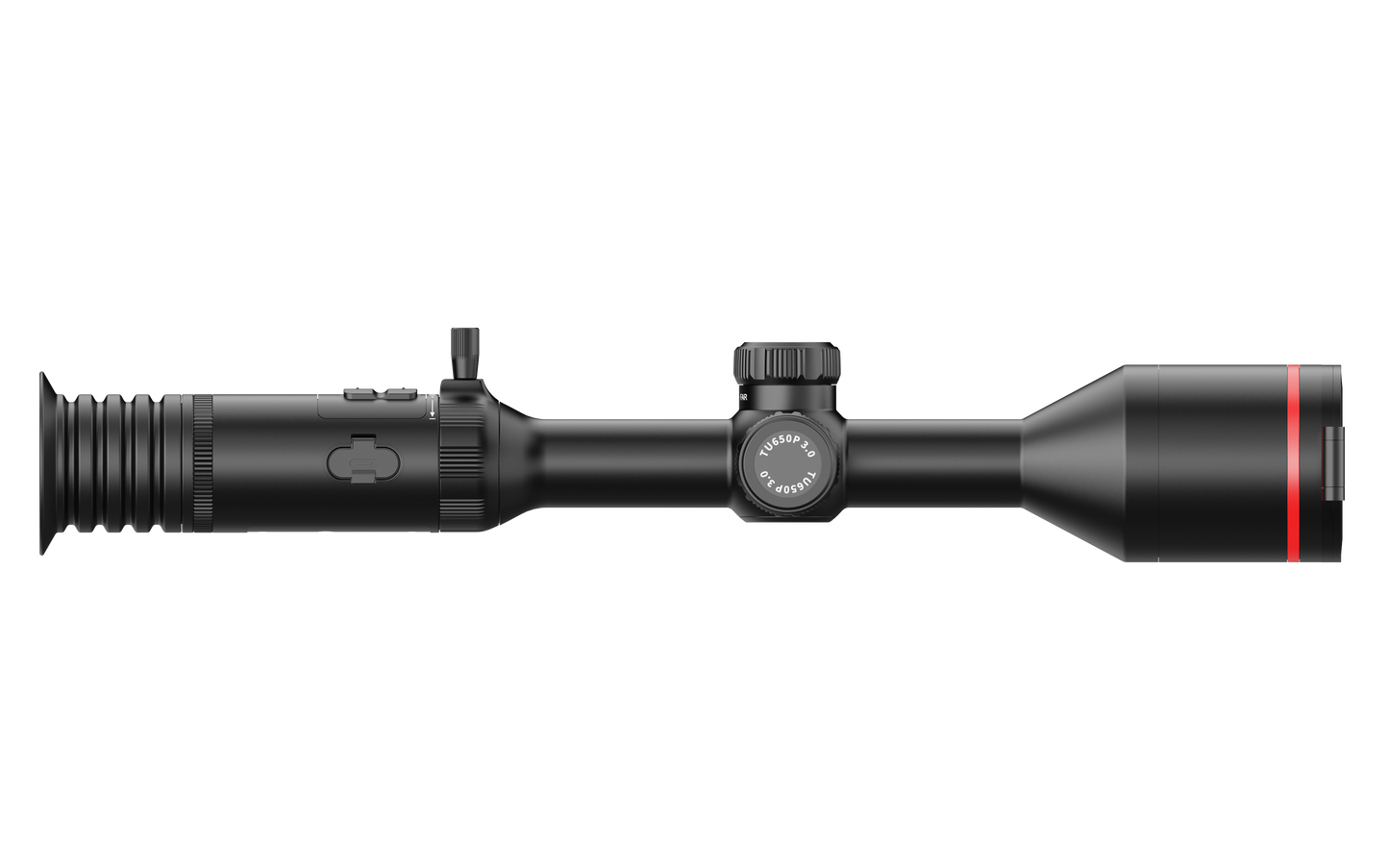

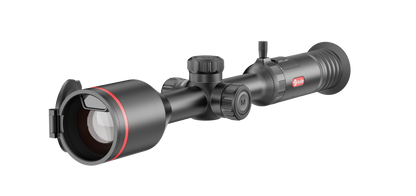

Guide TU650P 3.0 Thermal Scope
Guide TU650P 3.0 Thermal Scope
The TU650P 3.0 is a top-tier model in the Guide TU 3.0 Series, built for long-range performance and precision. It features a high-resolution 640 × 512 @12μm thermal sensor with an impressive <18mK NETD sensitivity, delivering ultra-clear thermal images in challenging conditions. The powerful lens system offers a massive 2600m detection range, while the built-in lens laser rangefinder gives fast, accurate distance readings up to 1500m, ideal for precision targeting at extended distances.
Designed for rugged use, the TU650P includes a shutterless design, IP68 waterproof rating, dual-band Wi-Fi, and intuitive controls. Everything you need for reliable performance in the field.

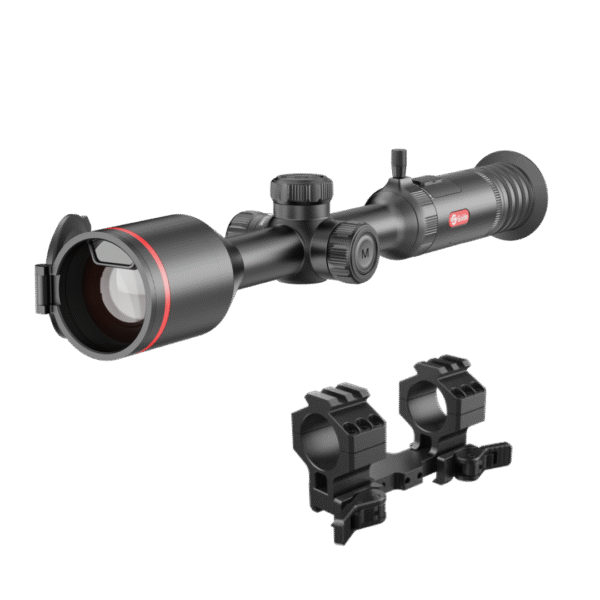

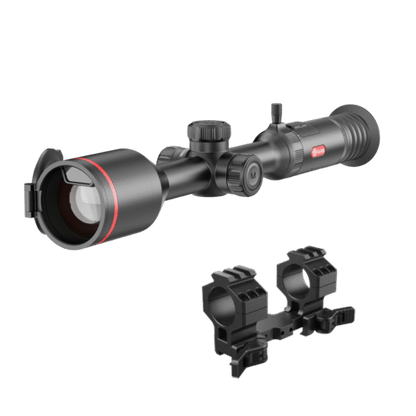

INCLUDES QUICK RELEASE SCOPE MOUNT.
Quick Release Mount Scope Tube Torque Settings = <2.5N·m / 22.13 in-lbs
Hyper-Light Algorithm, Ultra-Premium Visuals
Powered by next-generation sensors and the Hyper-Light algorithm, it delivers enhanced clarity, reduced noise, and optimized contrast, bringing out finer details with exceptional precision.

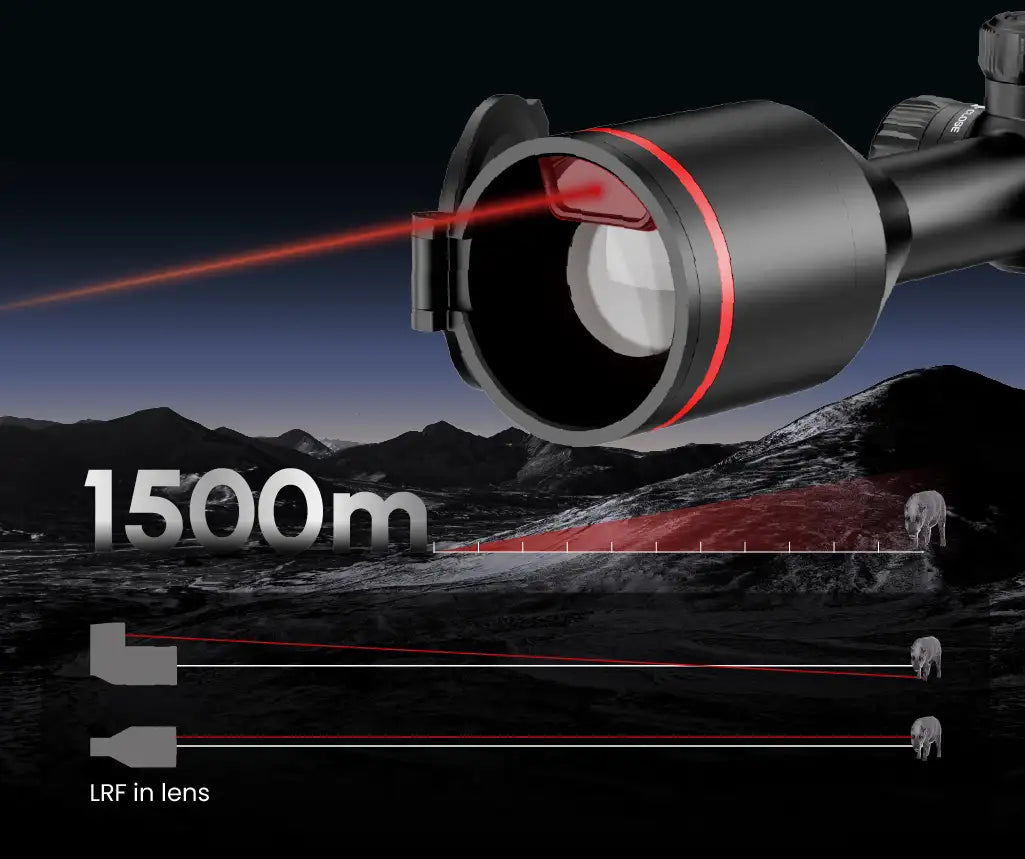

LRF in Lens for Precision Shooting
The laser rangefinder is seamlessly integrated into the objective lens, minimizing the distance to the optical axis. This reduces parallax error and delivers highly accurate ranging in a more compact form.
Hyper-Light Algorithm, Ultra-Premium Visuals
Powered by next-generation sensors and the Hyper-Light algorithm, it delivers enhanced clarity, reduced noise, and optimized contrast, bringing out finer details with exceptional precision.
2560×2560 Display for Comfortable Viewing
Featuring a 1.03-inch AMOLED display with 2560×2560 resolution, the TU Pro 3.0 Series delivers crisp, detailed visuals. With 60mm eye relief and AI-enhanced imaging, it ensures a more comfortable viewing experience, even during extended use.
Dual Battery Design, Worry-Free Power
A dual internal battery system, combined with a replaceable external battery, delivers up to 14 hours of continuous use. With support for hot-swappable 18650 batteries, you can extend runtime even further, keeping you powered for longer in the field.
Shutterless Design, Uninterrupted Visuals
Advanced Shutterless 3.0 technology eliminates image freezing and audible clicks, delivering smooth, real-time viewing without interruptions in the field.
Note: A shutter module is retained to maintain optimal image quality during startup and in extreme temperature conditions.
Specifications
| Product Name | Guide TU650P 3.0 Thermal Scope |
|---|---|
| Laser Rangefinder | 1500m |
| Type-C Power Supply | 5V DC 2A via USB-C |
| Battery Operating Time | 14 hours |
| Battery Type | 18650 ×2 Battery (Built-in) and 18650 ×1 Battery (External) |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Hotspot | 2.4 GHz / 5 GHz Wi-Fi |
| Capture Snapshot | Yes |
| Record Video | Yes |
| Working Temperature | From -20°C to 50°C |
| Dimension | 451×90×79mm |
| Weight | 923g |
| Protection Level | IP68 |
| Image Pro | N/A |
| HSIS | N/A |
| Zoom Pro | N/A |
| Diopter | -5D to +5D |
| Exit Pupil | - |
| Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Display | 1.03'' AMOLED 2560×2560 |
| Magnification | 3.7x~29.6x |
| Field of View (Degrees/m @ 100m) | 8.8°×7.0° |
| Detection Range | 2600m |
| NETD | Less than 18mK |
| Response Waveband | 8μm to 14μm |
| Pixel Interval | 12μm |
| Frame Rate | 50Hz |
| Sensor Resolution | 640×512 |
| Lens (Focal Length) | 50mm, F0.9 |
