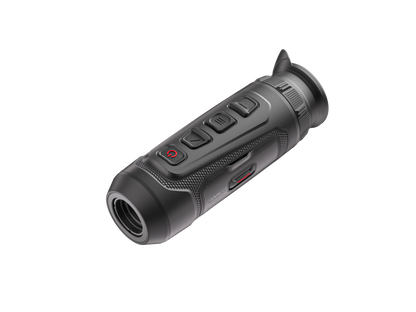

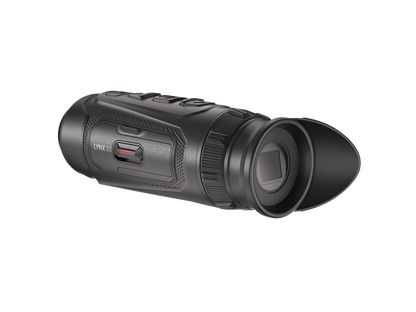

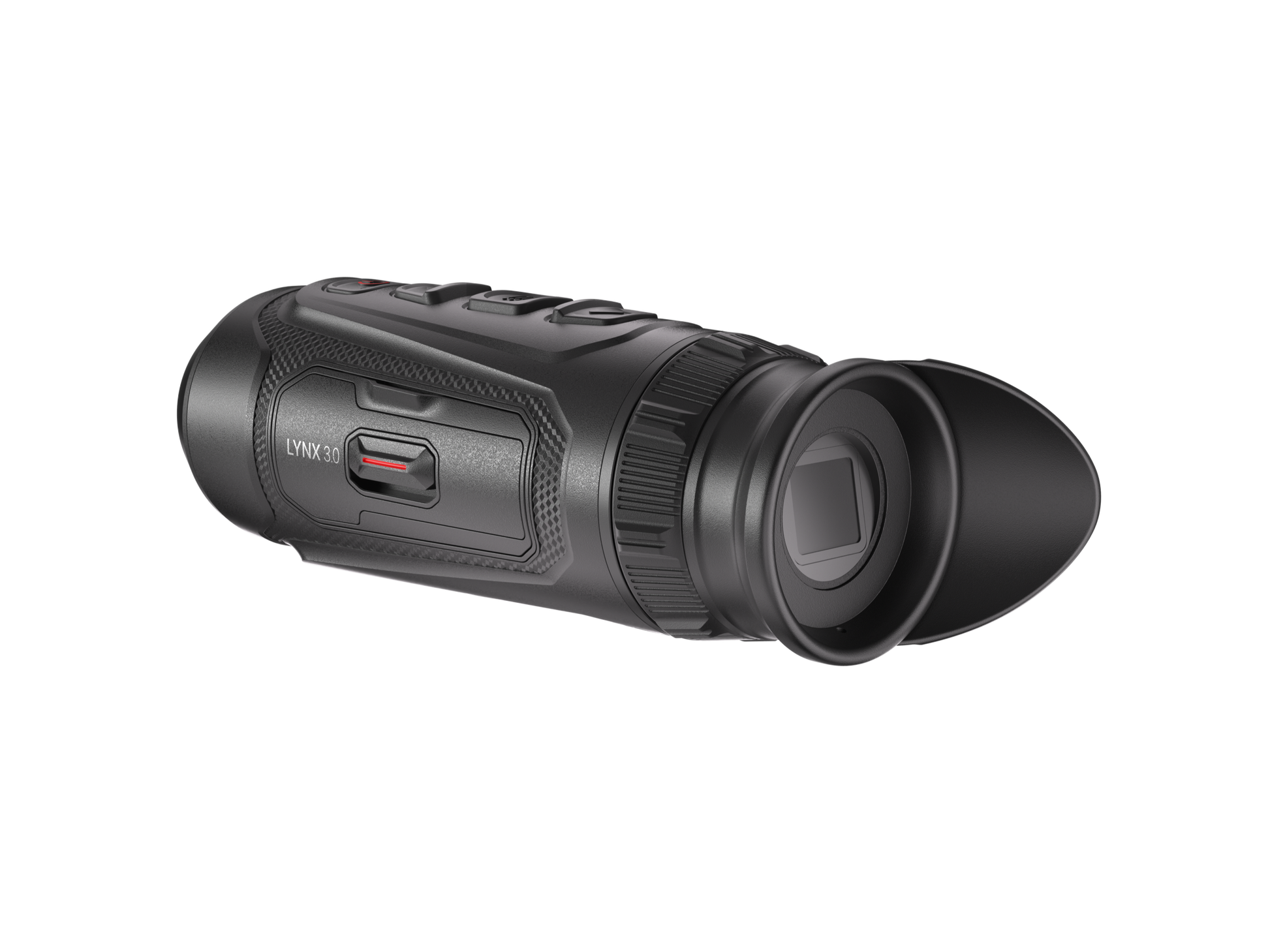

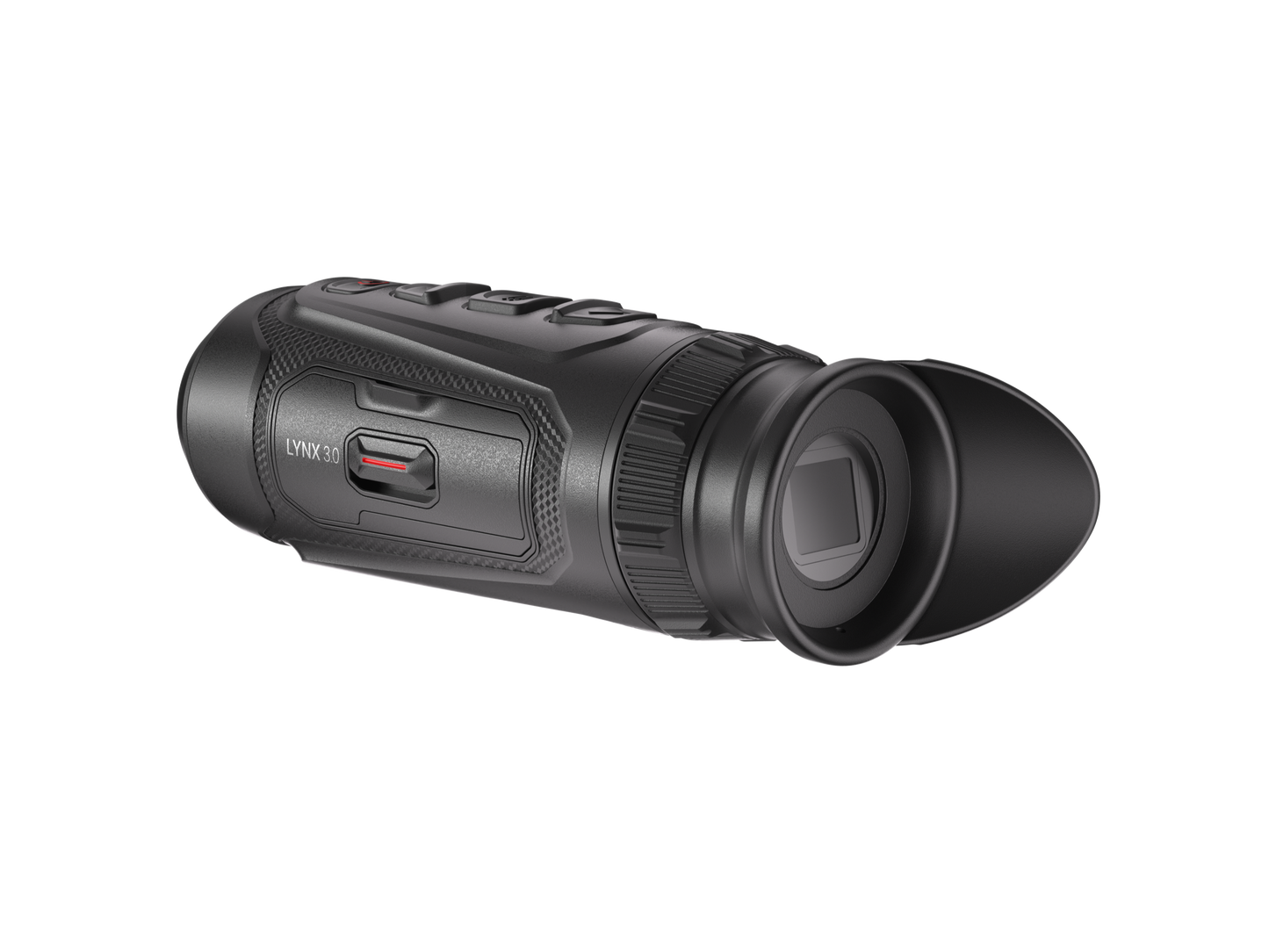

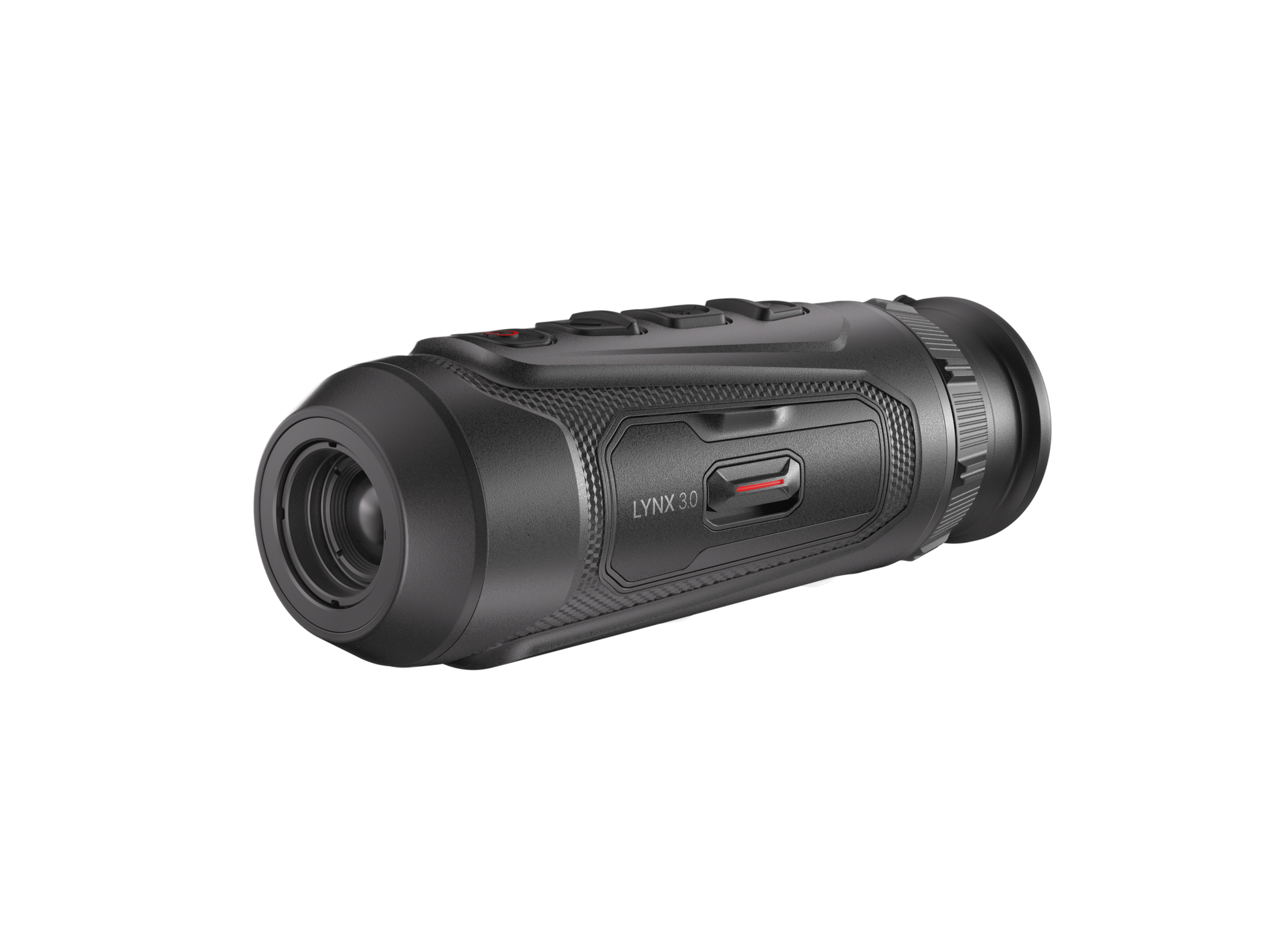

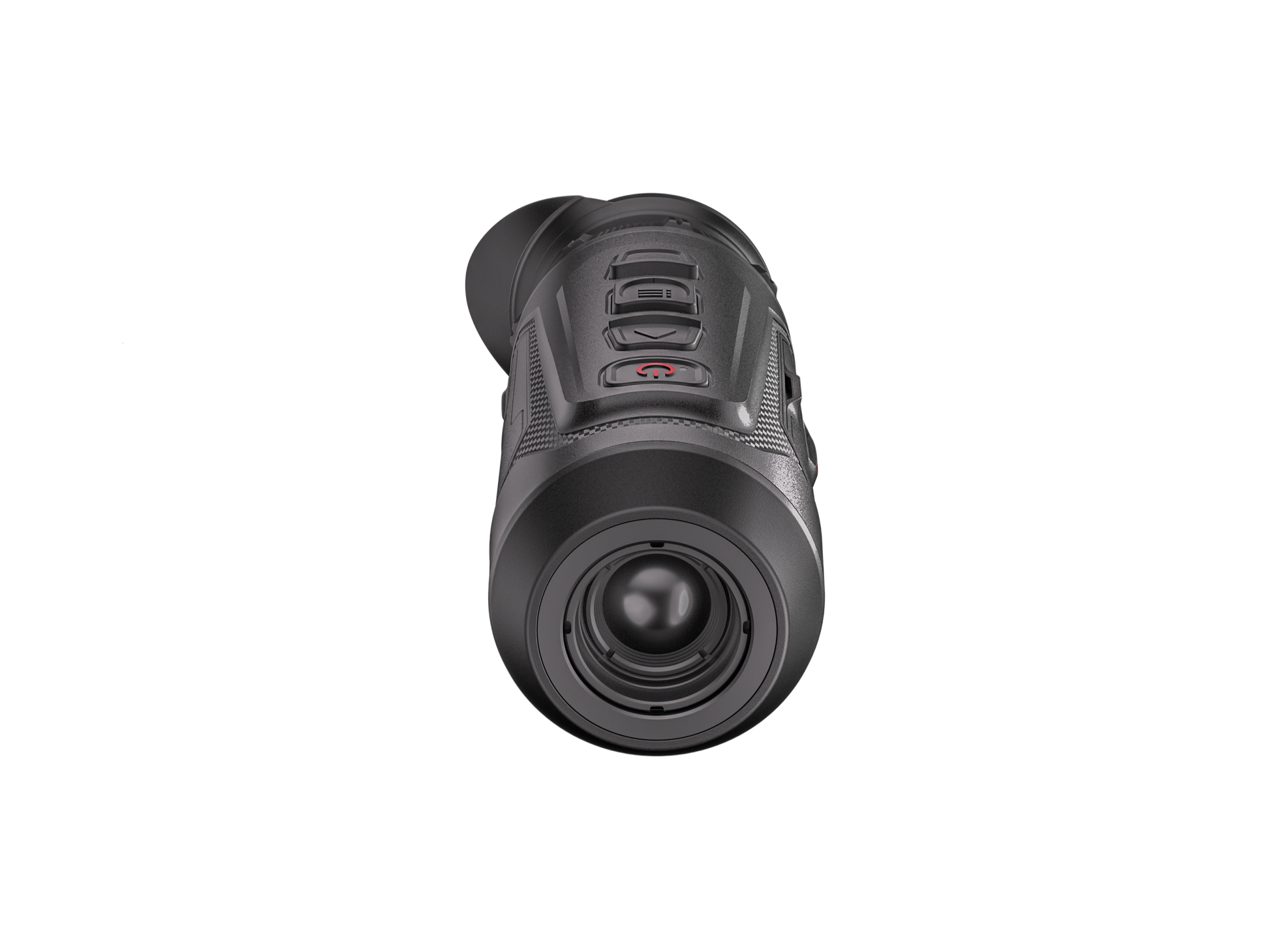

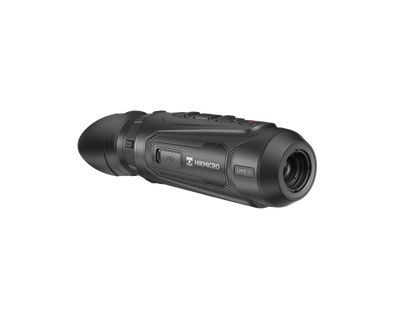

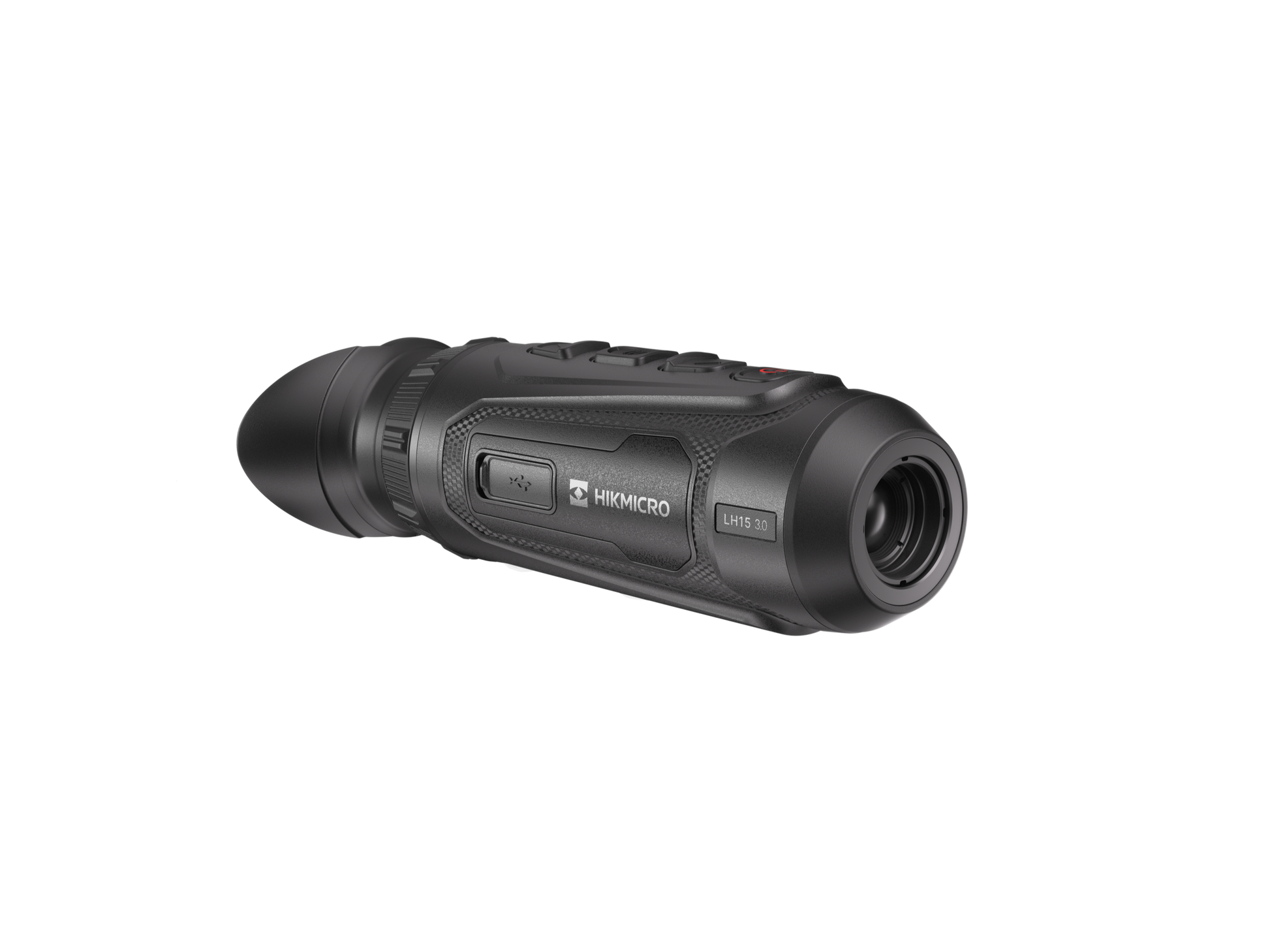

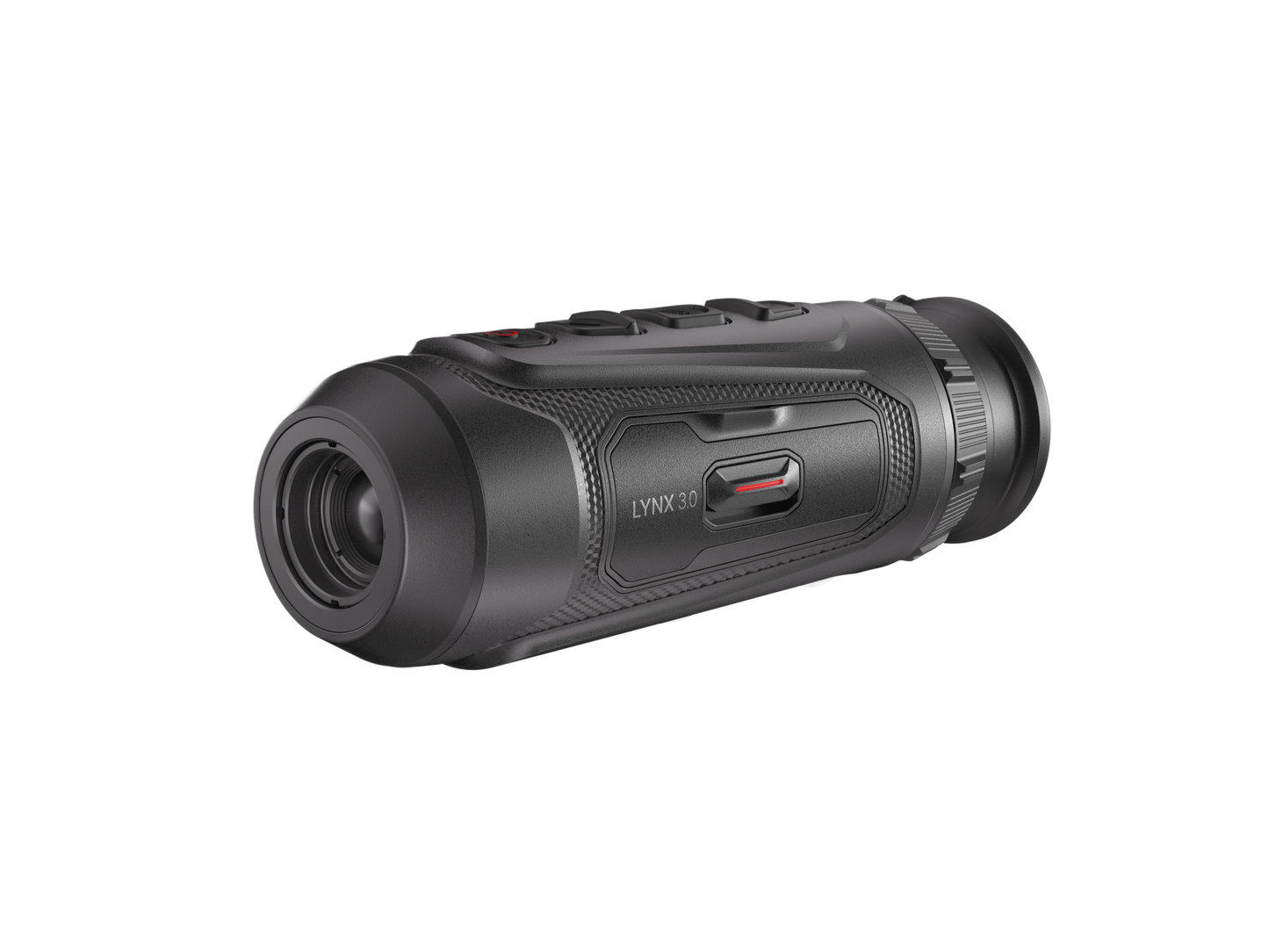

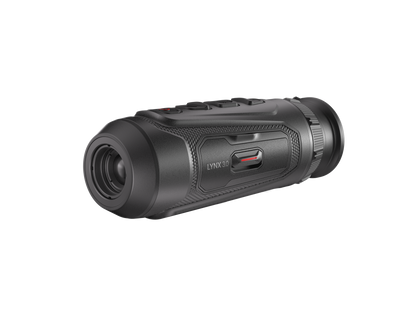

HIKMICRO Lynx LH15 3.0 Thermal Monocular
HIKMICRO Lynx LH15 3.0 Thermal Monocular
The LH15 3.0 is a top choice for your first 20mK thermal monocular. Equipped with a 320x240 detector and a free-focus 15mm F1.0 lens, it offers a 2.2x base magnification with an 11.7° field of view and a detection range of 750m. With its compact design and superb image quality, it is perfect for forest environments and mid-range applications.
15mK Ultra-High Thermal Sensitivity
The LYNX 3.0’s 15mK thermal sensitivity is among the best in its class, making it easy to detect even faint heat signatures in challenging hunting environments. Whether you’re hunting on a foggy morning, in dense woods, or in open fields at night, you’ll have no trouble identifying the outlines of your target animals.
Note: 15mK thermal sensitivity is available on LH19 3.0, LH25 3.0, and LH35 3.0 models only.
AI-Powered Image Pro 3.0 & Zoom Pro Algorithms
The LYNX 3.0 features HIKMICRO’s AI-powered Image Pro 3.0 and Zoom Pro, delivering sharp, detailed imagery at both base magnification and when zoomed. Easily identify animal outlines and distinguish between species, even at longer distances, whether scanning dense bush or open terrain.
Supported models: LH15 3.0, LH19 3.0, LH25 3.0, LH35 3.0.
0.49" AMOLED Display: Premium Visuals
The LYNX 3.0’s vibrant 0.49" AMOLED display delivers crisp, high-contrast visuals that make targets stand out clearly from their surroundings, even in low-light conditions.
Note: 0.49'' display only for LH19 3.0, LH25 3.0, LH35 3.0. others are equipped with 0.39''.
Pocket Ready: Compact & Lightweight
24mm shorter than before and weighing just 355g, the LYNX 3.0 is built for hunters on the move. Its lightweight, compact design reduces fatigue during long sessions in the field, keeping you comfortable and ready for action at all times.
Specifications
| Product Name | HIKMICRO Lynx LH15 3.0 Thermal Monocular |
|---|---|
| Laser Rangefinder | N/A |
| Type-C Power Supply | 5V DC, 2A Supports External Power Supply, Support Direct Charging |
| Battery Operating Time | 5.5 hours continuous running |
| Battery Type | Replaceable and Rechargeable Li-ion 18650 Battery |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Hotspot | 2.4 GHz/5 GHz Wi-Fi Waveband |
| Capture Snapshot | Yes |
| Record Video | Yes |
| Working Temperature | From -30°C to 45°C (-22°F to 113°F); Humidity: 90% or Less |
| Dimension | 156.3× 53.6 ×49.5 mm |
| Weight | 296.5 g with battery |
| Protection Level | IP67 |
| Image Pro | Yes |
| HSIS | Yes |
| Zoom Pro | Yes |
| Diopter | -5D to +3D |
| Exit Pupil | 6mm |
| Palettes | Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome |
| Display | 1024 × 768, 0.39 inch, AMOLED |
| Magnification | 2.2× - 17.6× |
| Field of View (Degrees/m @ 100m) | 11.7° × 8.8°/20.5 m × 15.4 m |
| Detection Range | 750m |
| NETD | Less than 20 mK |
| Response Waveband | 8 μm to 14 μm |
| Pixel Interval | 12 μm |
| Frame Rate | 50Hz |
| Sensor Resolution | 256 × 192 |
| Lens (Focal Length) | 15 mm, F1.0 |
