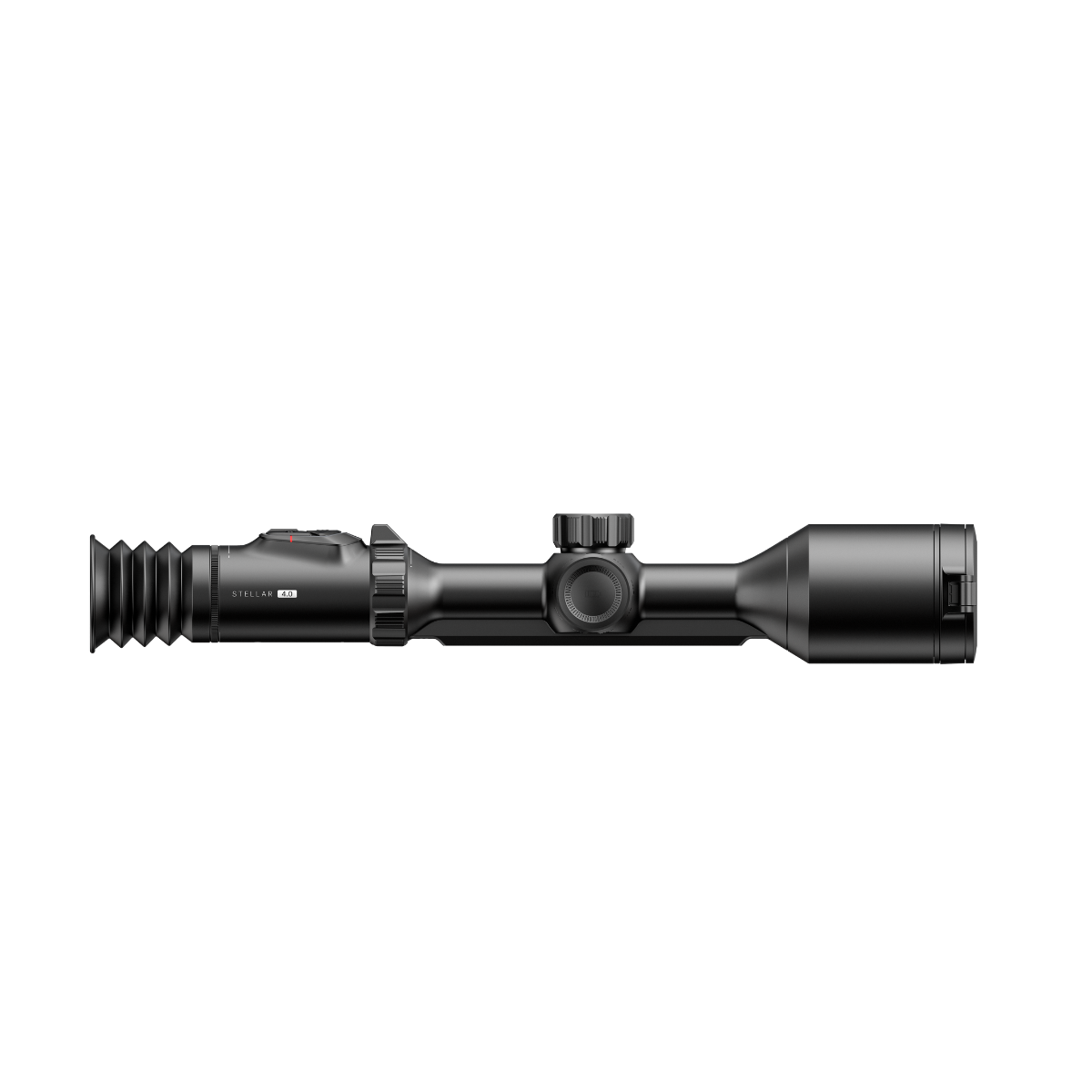

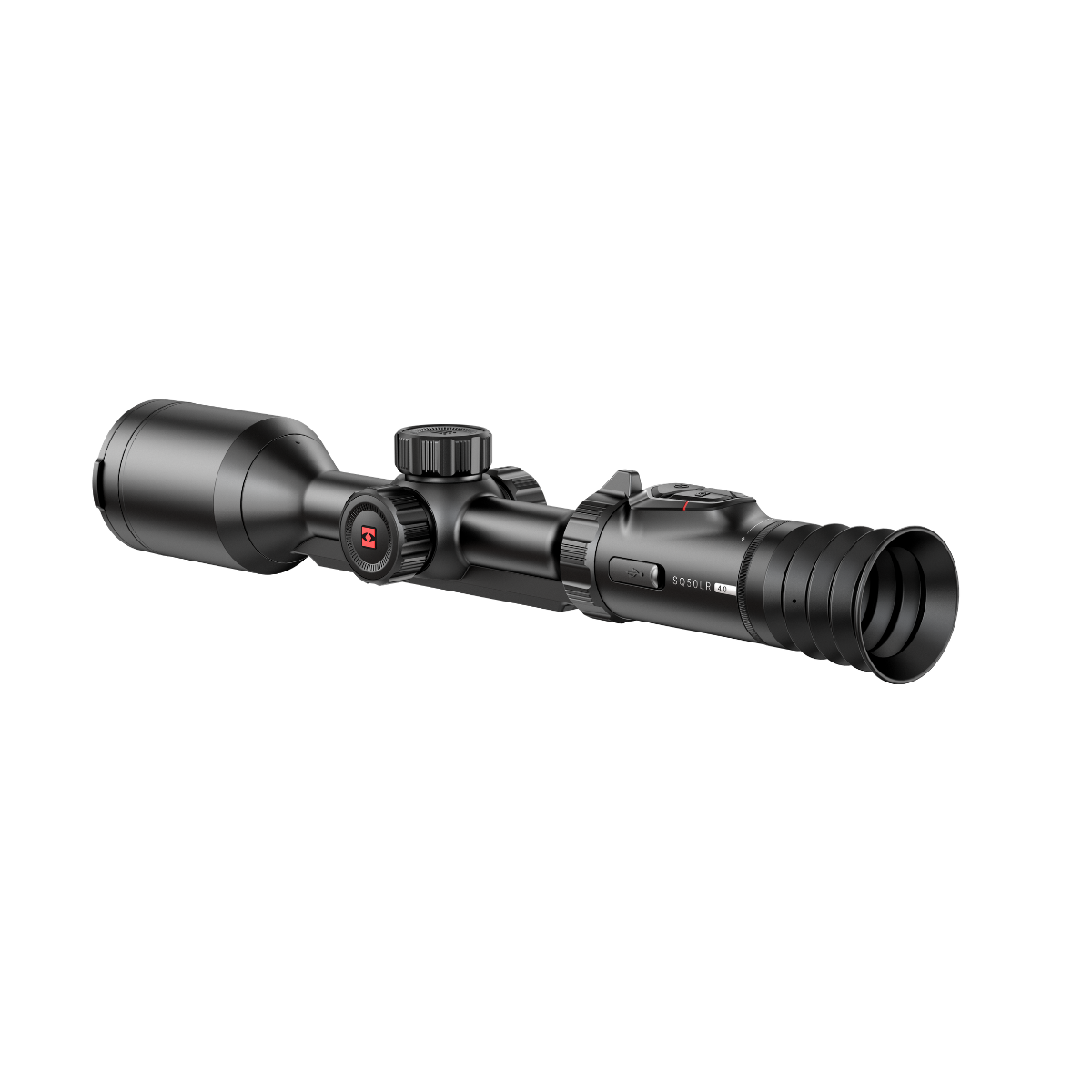

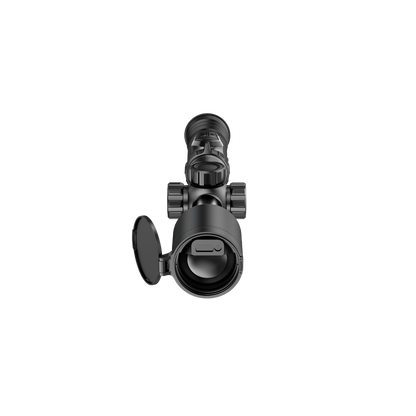

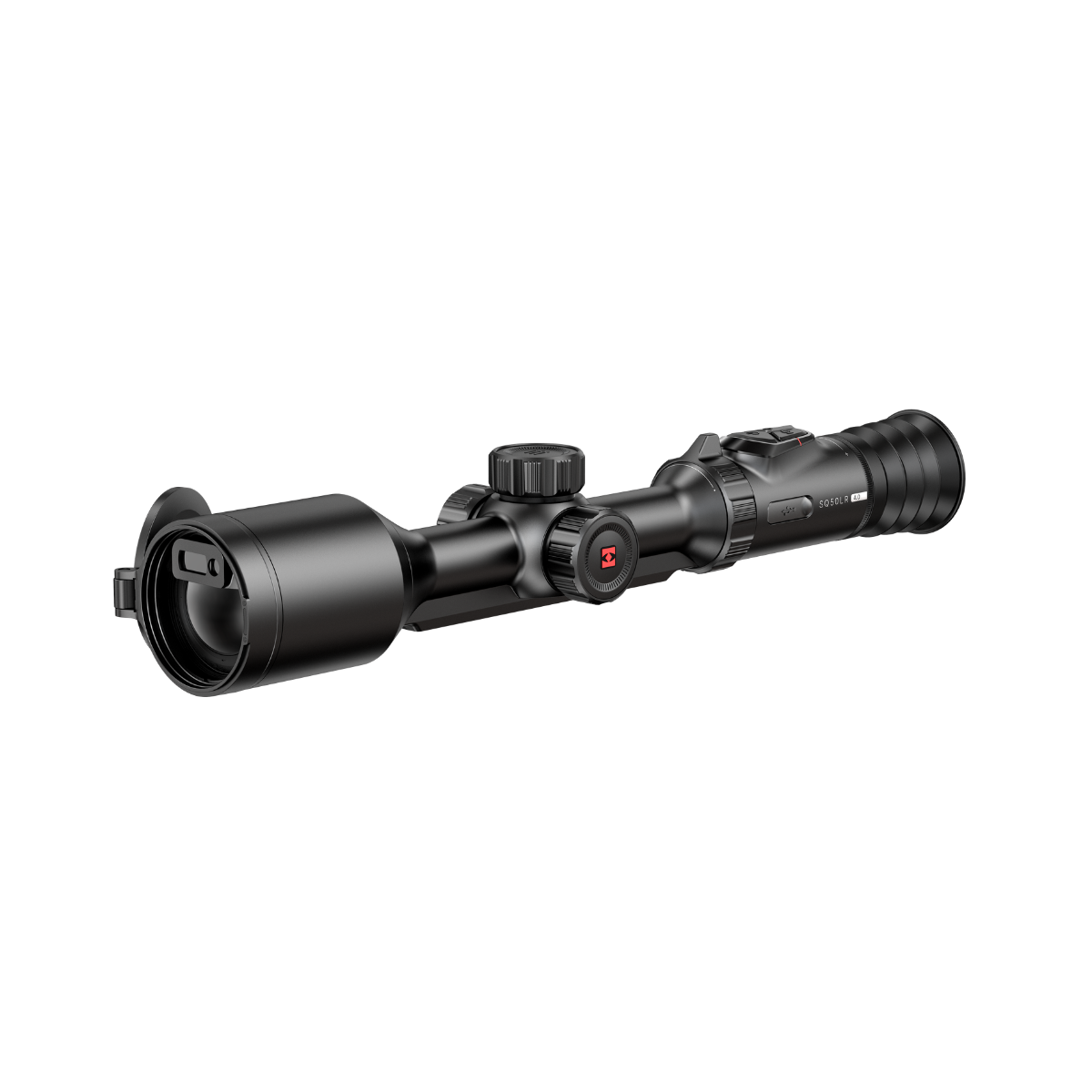

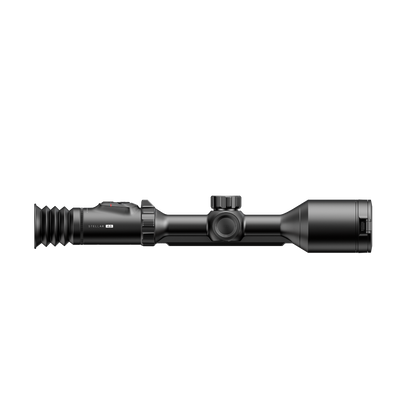

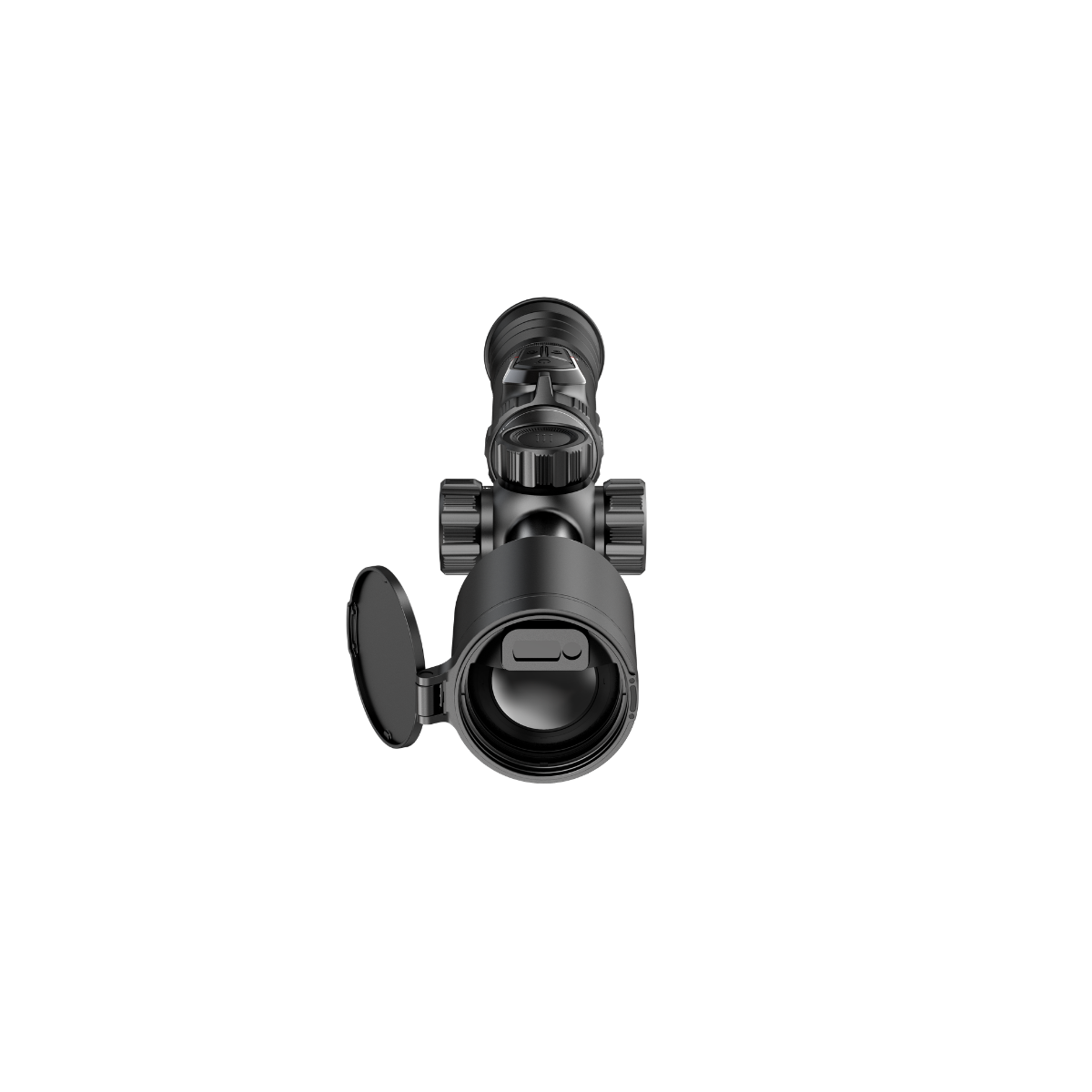

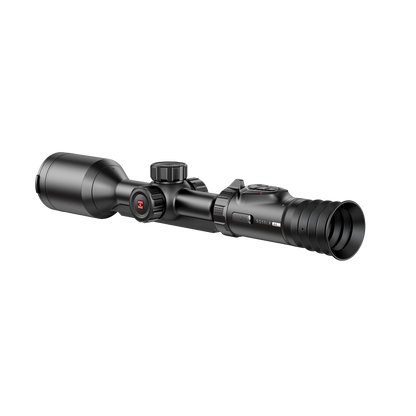

HIKMICRO Stellar SQ50LR 4.0 Thermal Scope
HIKMICRO Stellar SQ50LR 4.0 Thermal Scope
The HIKMICRO Stellar SQ50LR 4.0 combines the thermal performance of the SQ50L with a rail-mounting design.
It features a 640 × 512 thermal sensor with an ultra-low NETD of <12mK for detailed thermal imaging. Its 50mm lens offers detection up to 2600m, while Image Pro 4.0 enhances fine detail and the AMOLED display delivers a clear, detailed view.
The upgraded LRF now reaches out to 1200m for better accuracy and stability.
SKU: TIHIK795
Evolved 12mK NETD Thermal Detector, Finer Details
Some moments leave no room for guessing. Powered by an up to 1280 thermal detector and 12mK NETD, HIKMICRO STELLAR 4.0 thermal scope captures richer thermal information and finer temperature differences. With the Image Pro 4.0 algorithm, it intelligently analyzes and adapts to different hunting scenarios in real time, delivering clear and stable images. When the moment arrives, you can look beyond the heat signature, recognize what’s really there, and trust what you see.
LRF-Inside*, Classic Form
The familiar form of an optical scope has been trusted by generations. HIKMICRO STELLAR 4.0 Thermal Scope respects that experience while pushing it forward: it is the first to integrate the laser rangefinder (LRF) module directly inside the lens for a cleaner, more traditional scope profile. Advanced ranging technology disappears into the design, leaving you with a form that feels instantly familiar.
*The LRF-inside Design is only available for SX75L(R) 4.0.
Enhanced Accuracy and penetration up to 1200m
When conditions get tough, HIKMICRO STELLAR 4.0 Thermal Scope settles you down. With accurate ballistic calculation, enhanced stability and penetration of up to 1200m, STELLAR 4.0 is engineered to deliver more reliable distance readings and point-of-aim even when weather or haze make ranging more challenging, so you can stay locked on your target and fully focused on the moment.
3.0x Base Magnification, Perfect at First Glance
Every detail matters, so does the moment you first see it. Through extensive user feedback and repeated validation with HIKMICRO’s R&D team, we equip STELLAR 4.0 with up to 75mm lens to ensure extended detection range, and move base magnification from 2.5× to 3.0×*. Upon your first look is a view where targets appear at just the right size, bringing meaningful details into focus without the need to zoom. When opportunity appears, you don’t waste a moment adjusting. You’re already ready to see it. (* SQ50L(R) 4.0: 50mm Lens at 3.5x Base Magnification)
Intelligent Zoom: The Ultimate Zoom Experience
A critical moment can change in an instant. You shouldn’t have to pause, adjust, or wonder if the image will hold up. On HIKMICRO STELLAR 4.0 Thermal Scope, Intelligent Zoom takes thermal zooming to the next level, combining AI-enhanced image clarity with a seamless, intuitive zooming experience. It leverages upgraded AI algorithms to enhance image clarity and fine details as you zoom in, while delivering smoother, more fluid zoom transitions. Combined with the intuitive rear magnification design, it makes zooming feel closer to a traditional daylight riflescope, keeping you focused on the details that matter—so you can stay in the moment.
Specifications
| Product Name | HIKMICRO Stellar SQ50LR 4.0 Thermal Scope |
|---|---|
| Laser Rangefinder | 1200m |
| Type-C Power Supply | 5 V DC/2 A, USB Type-C interface Supports QC3.0 |
| Battery Operating Time | 9.5 hours continuous |
| Battery Type | Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external) |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Hotspot | Yes |
| Capture Snapshot | Yes |
| Record Video | Yes |
| Working Temperature | -30 °C to 55 °C (-22 °F to 131°F) |
| Dimension | 439.6mm x 82.9mm x 74.3mm |
| Weight | 1008g with external battery |
| Protection Level | IP67 |
| Image Pro | Yes |
| HSIS | Yes |
| Zoom Pro | Yes |
| Diopter | -5D to 5D |
| Exit Pupil | 8mm |
| Palettes | Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome |
| Display | 2560x2560,1.03 inch AMOLED |
| Magnification | 3.5x-28.0x |
| Field of View (Degrees/m @ 100m) | 8.8° x 7.0°/15.2m x 12.2m |
| Detection Range | 2600m |
| NETD | Less than 12 mK |
| Response Waveband | 9 um to 14 um |
| Pixel Interval | 13 um |
| Frame Rate | 50Hz |
| Sensor Resolution | 640 x 512 |
| Lens (Focal Length) | 50mm, F1.0 |
