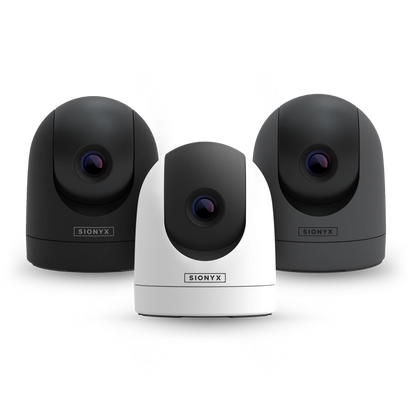

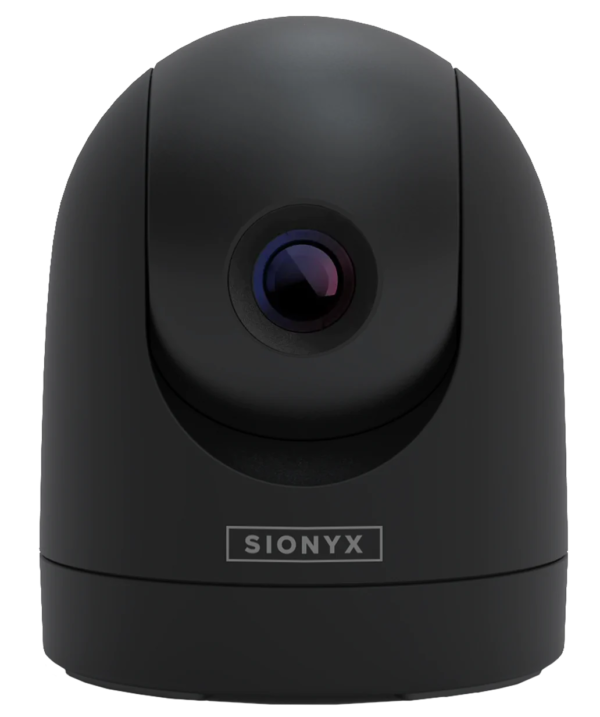

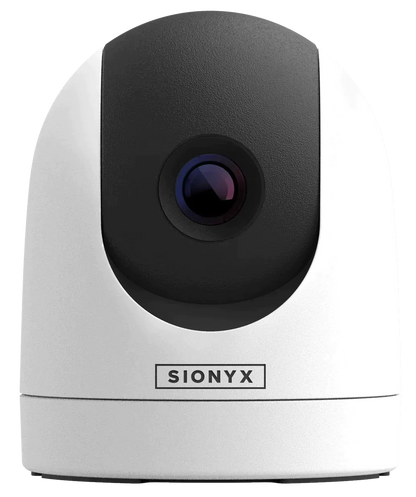

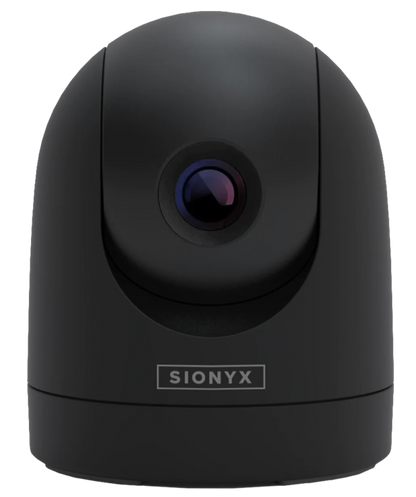

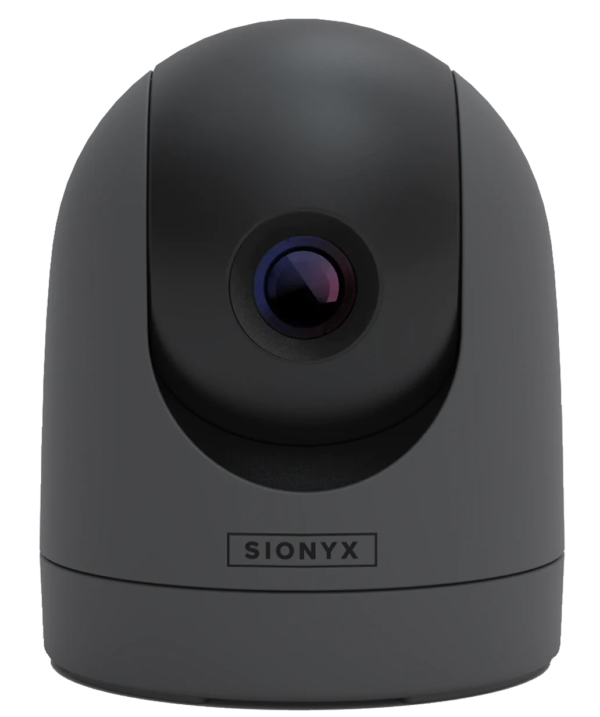

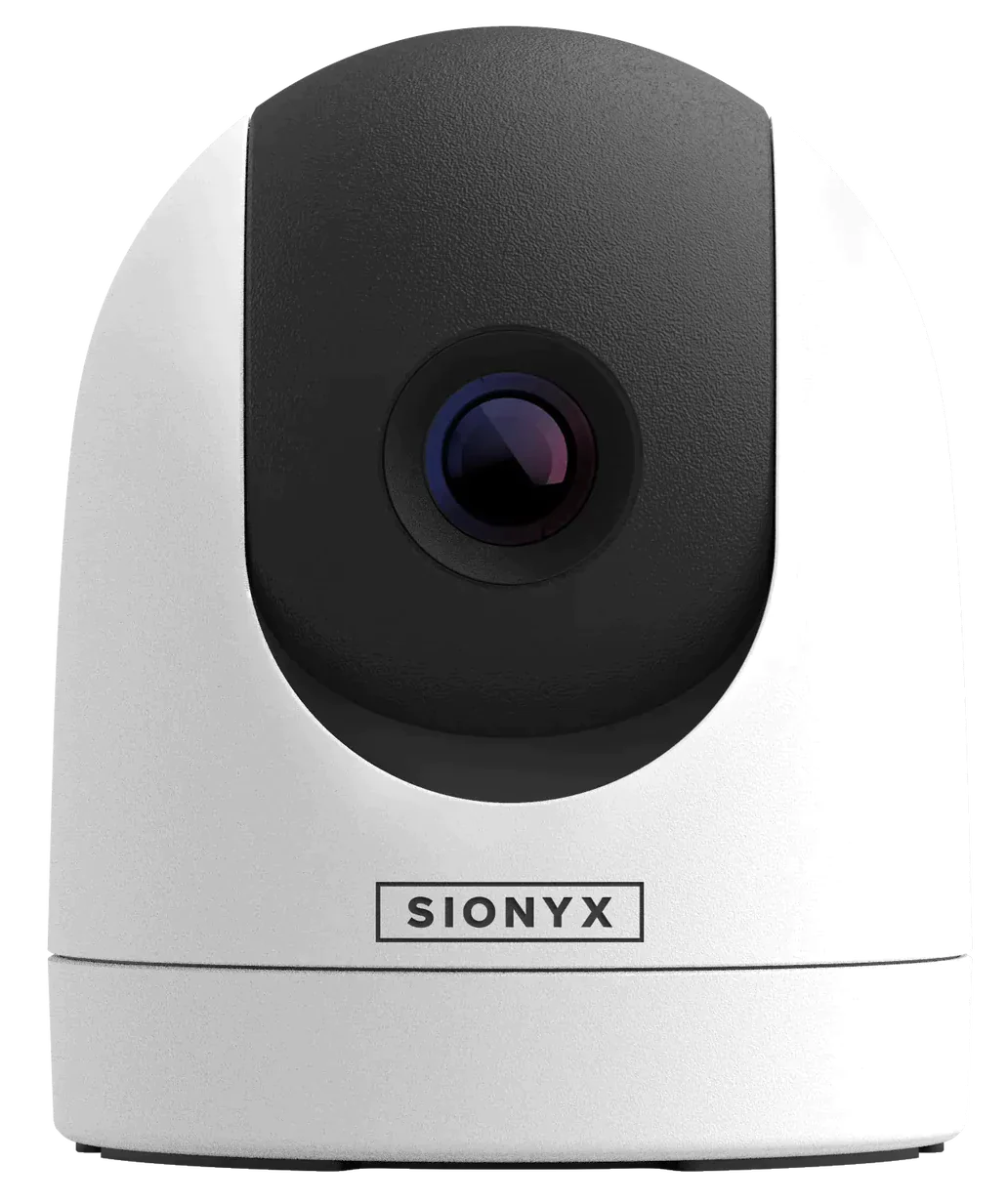

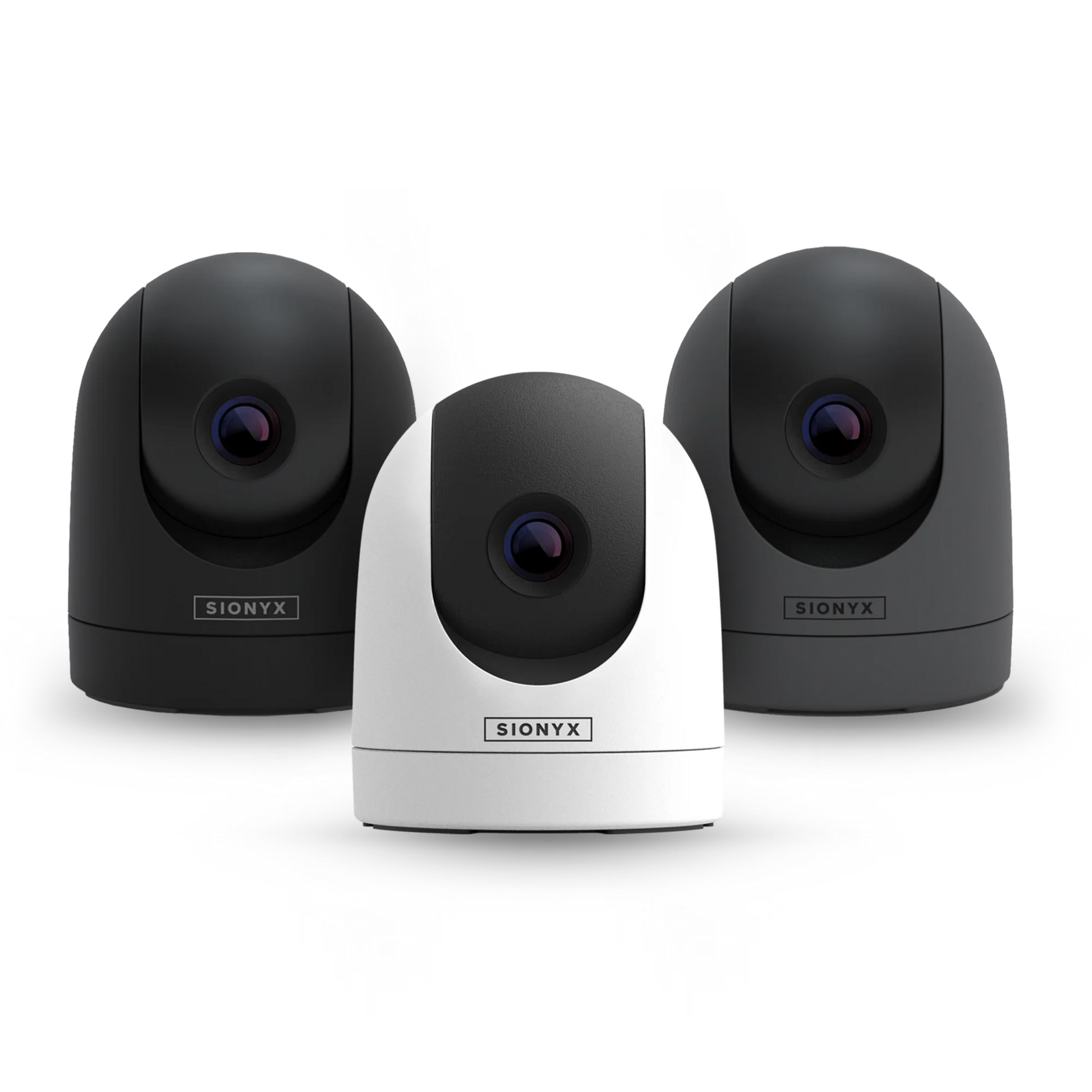

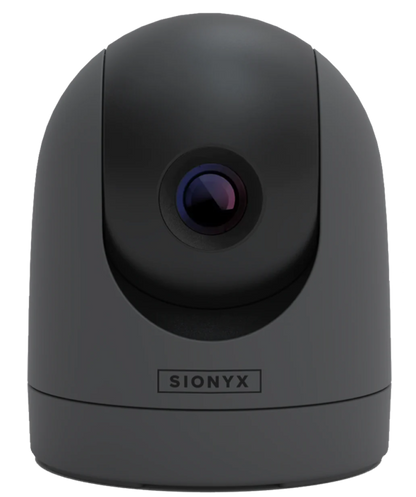

SIONYX NIGHTWAVE D1 Night Vision Dome Camera
SIONYX NIGHTWAVE D1 Night Vision Dome Camera
The SIONYX Nightwave is an ultra low-light marine navigational camera built around SIONYX’s patented Black Silicon CMOS sensor. It allows mariners of all levels to easily spot obstacles and debris in moonless starlight without white light or expensive thermal cameras – navigating safely, avoiding collisions, and maximizing time on the water. IP67-rated, it’s built to operate in the toughest marine environments.

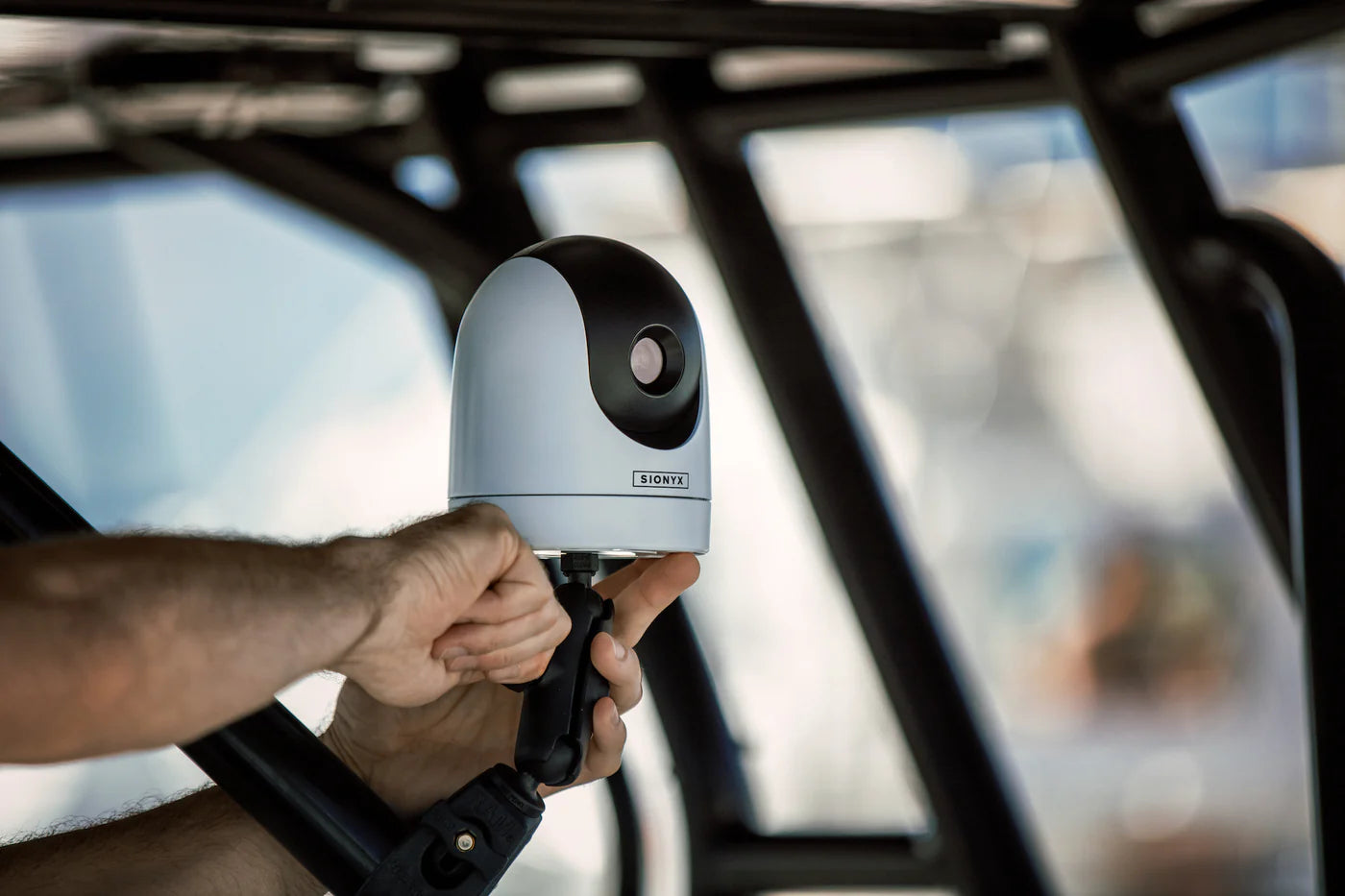

The Nightwave’s flexible mounting and video streaming setups allow both seamless integration with major brand MFDs and the option to view live video on your mobile device – so you can navigate confidently in the dark from any vessel with clear colour digital night vision.
Shipping calculated at checkout.
Quantity
View full details

Specifications
| Product Name | SIONYX NIGHTWAVE D1 Night Vision Dome Camera |
|---|---|
| Laser Rangefinder | N/A |
| Type-C Power Supply | 12V DC/USB |
| Battery Operating Time | - |
| Battery Type | - |
| Audio Recording | - |
| Standby Mode | - |
| Hotspot | WiFi + Bluetooth |
| Capture Snapshot | - |
| Record Video | Yes - Analog Video [NTSC] SMA / BNC/ RCA |
| Working Temperature | -20°C To +50°C |
| Dimension | 127mmx127mmx152mm |
| Weight | 870g |
| Protection Level | IP67 |
| Image Pro | N/A |
| HSIS | N/A |
| Zoom Pro | N/A |
| Diopter | N/A |
| Exit Pupil | N/A |
| Palettes | - |
| Display | - |
| Magnification | - |
| Field of View (Degrees/m @ 100m) | 44º |
| Detection Range | 150m (man-sized object) |
| NETD | N/A |
| Response Waveband | - |
| Pixel Interval | N/A |
| Frame Rate | 30 Hz |
| Sensor Resolution | 1280 x 1024 CMOS |
| Lens (Focal Length) | 16mm F/1.4 |
